Security Indicator Lamp Connector End View
Security Indicator Lamp Connector End View

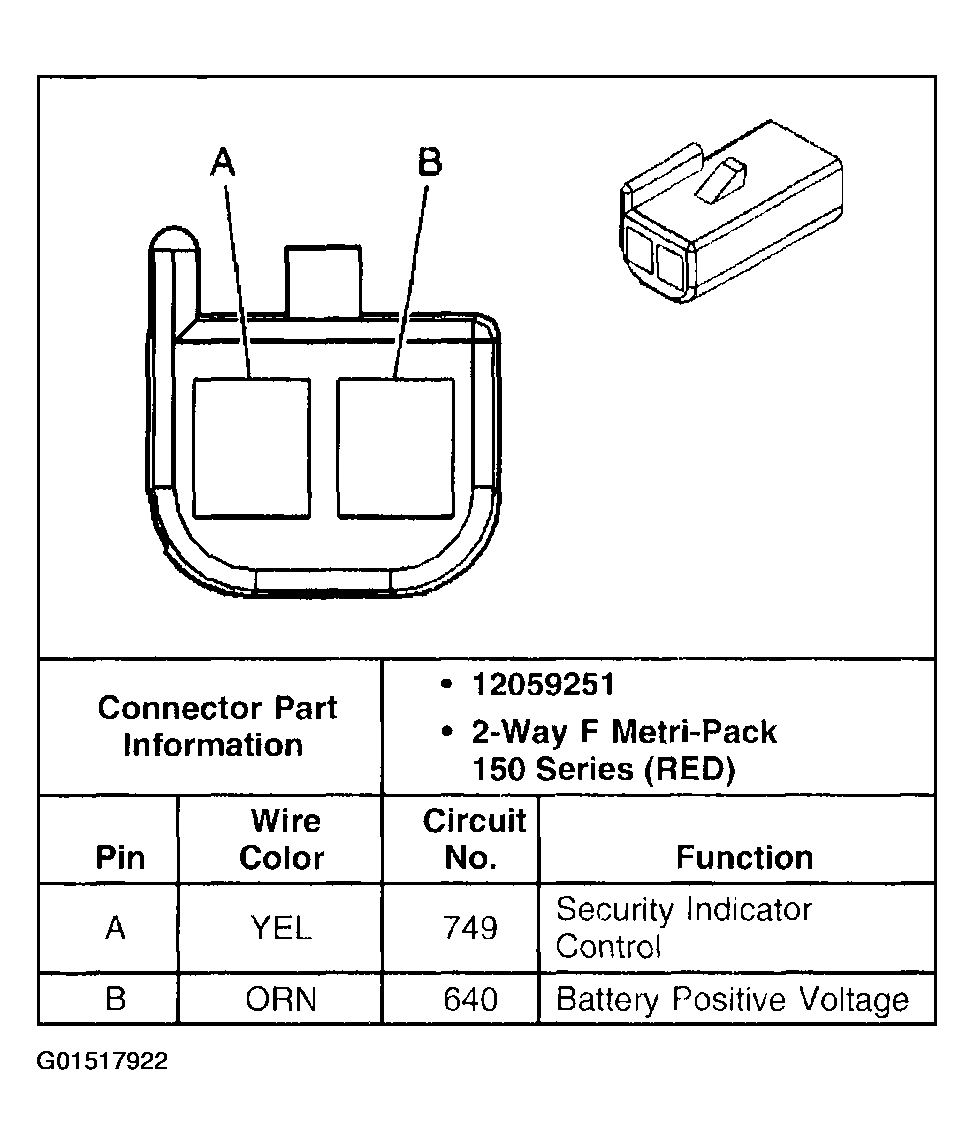

Fig 1: Security Indicator Lamp
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
