Turn Signal/Multifunction Switch Connector End View - C2
Turn Signal/Multifunction Switch Connector End View - C2

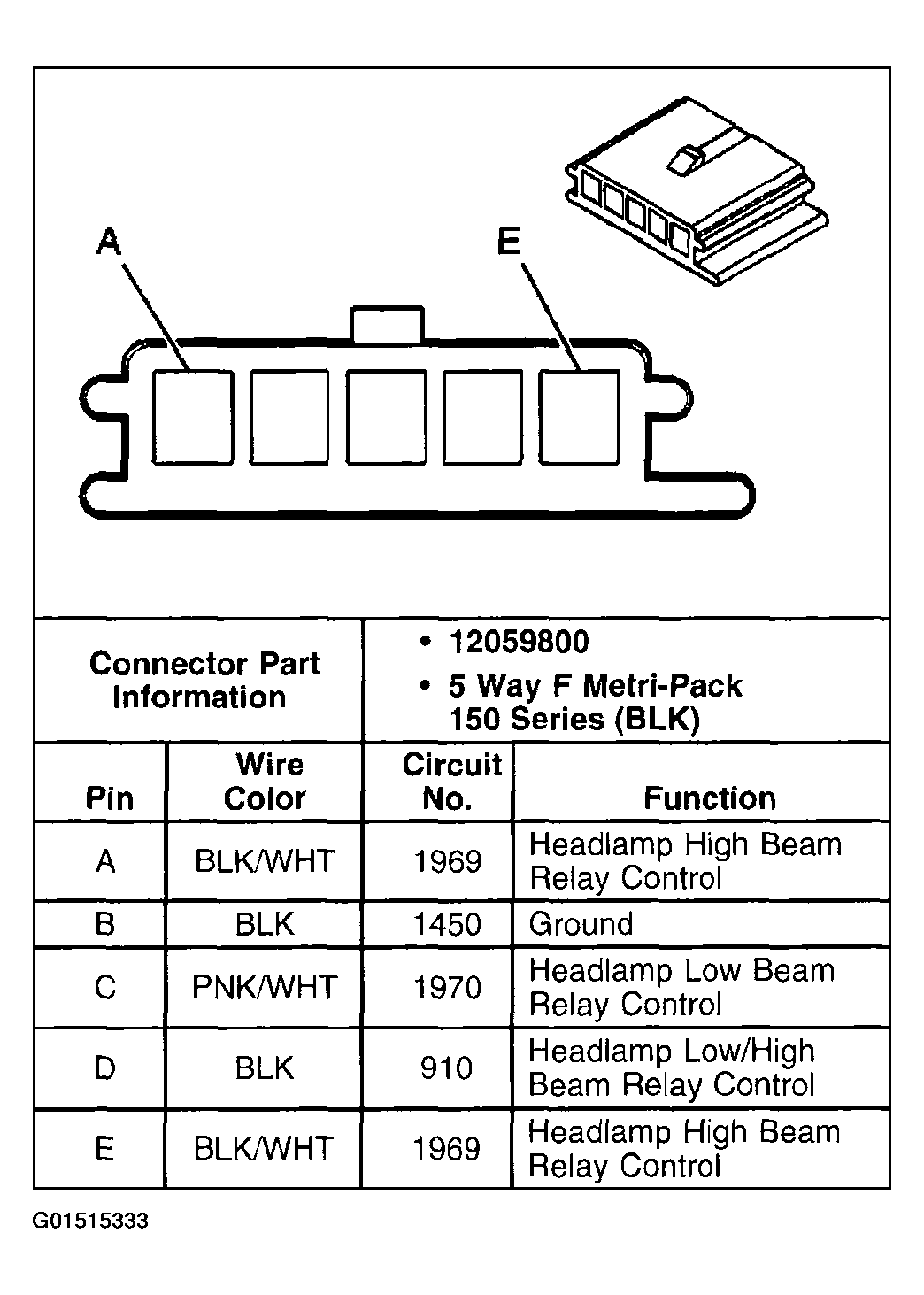

Fig 1: Turn Signal/Multifunction Switch - C2
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
