Installation Procedure

Install the seat belt buckle to the right front seat.

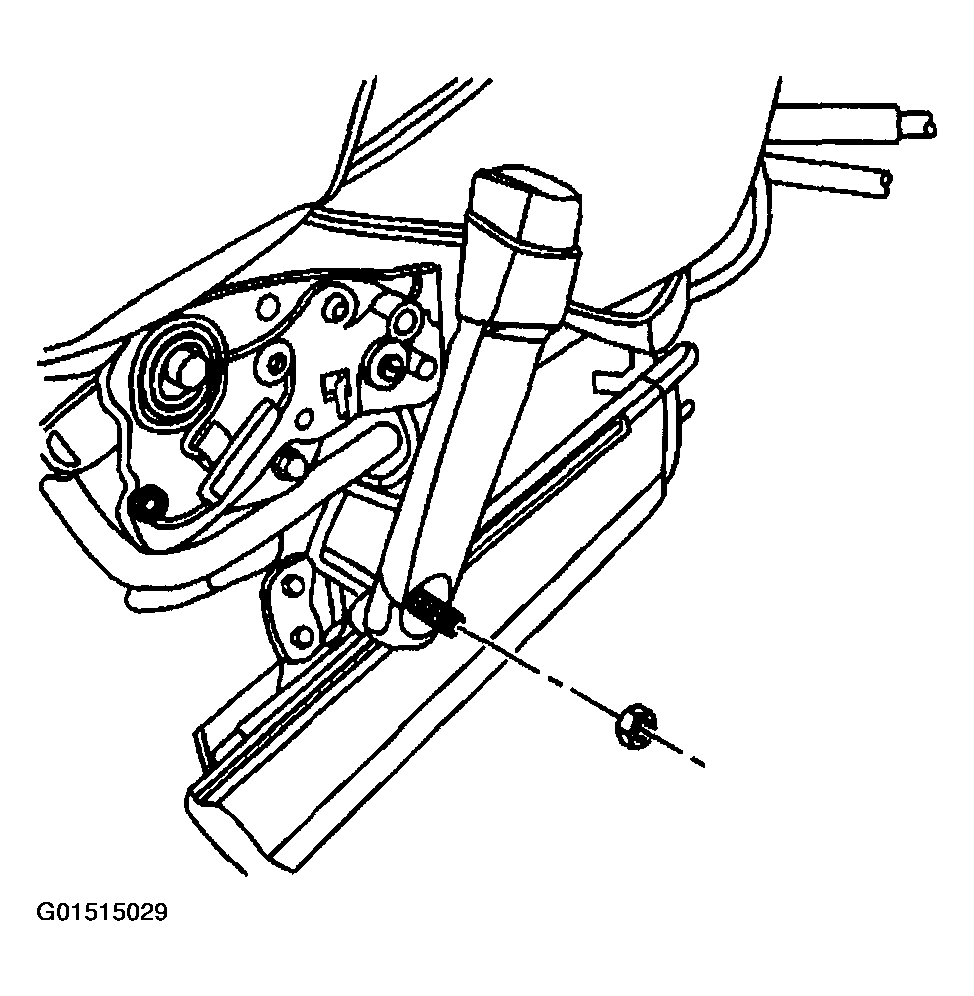

Fig 1: Installing Procedure Of Seat Belt Buckle - Right Front (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Install the nut to the seat belt anchor stud.
Tighten

Tighten the seat belt buckle anchor nut to 42 N.m (31 lb ft).
Install the front seat cushion inner trim panel. Refer to SEAT CUSHION INNER TRIM PANEL REPLACEMENT -- FRONT .
Install the right front seat. Refer to SEAT REPLACEMENT -- BUCKET .

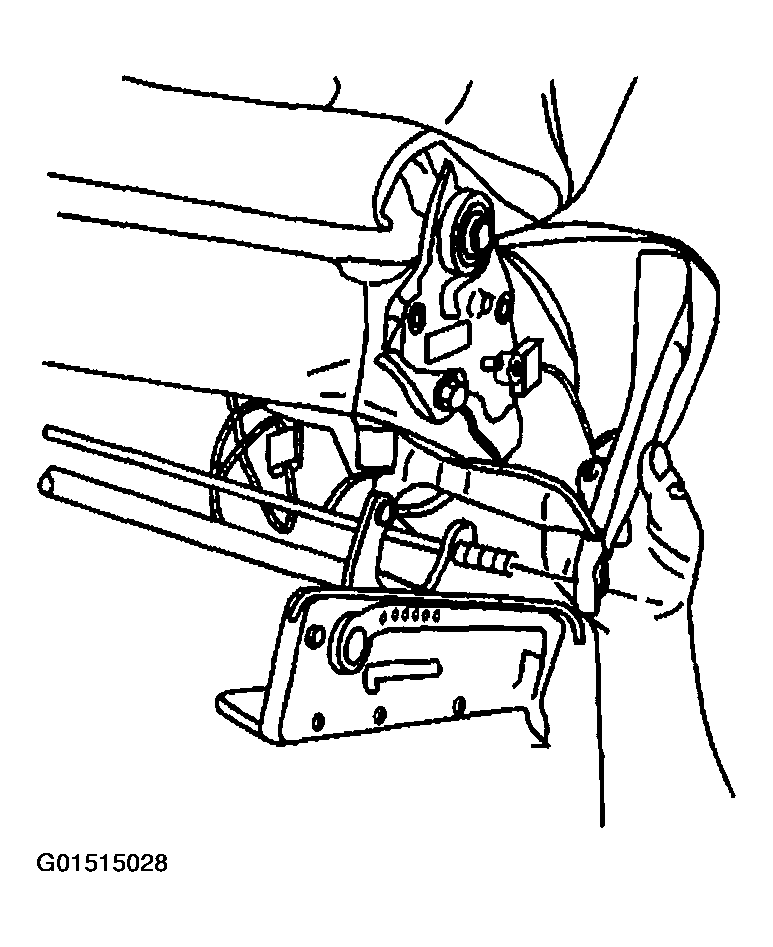

Fig 2: Installing Procedure Of Seat Belt Buckle - Right Front (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
