Power Steering Gear Disassembled View (Rack & Pinion)
Power Steering Gear Disassembled View (Rack & Pinion)

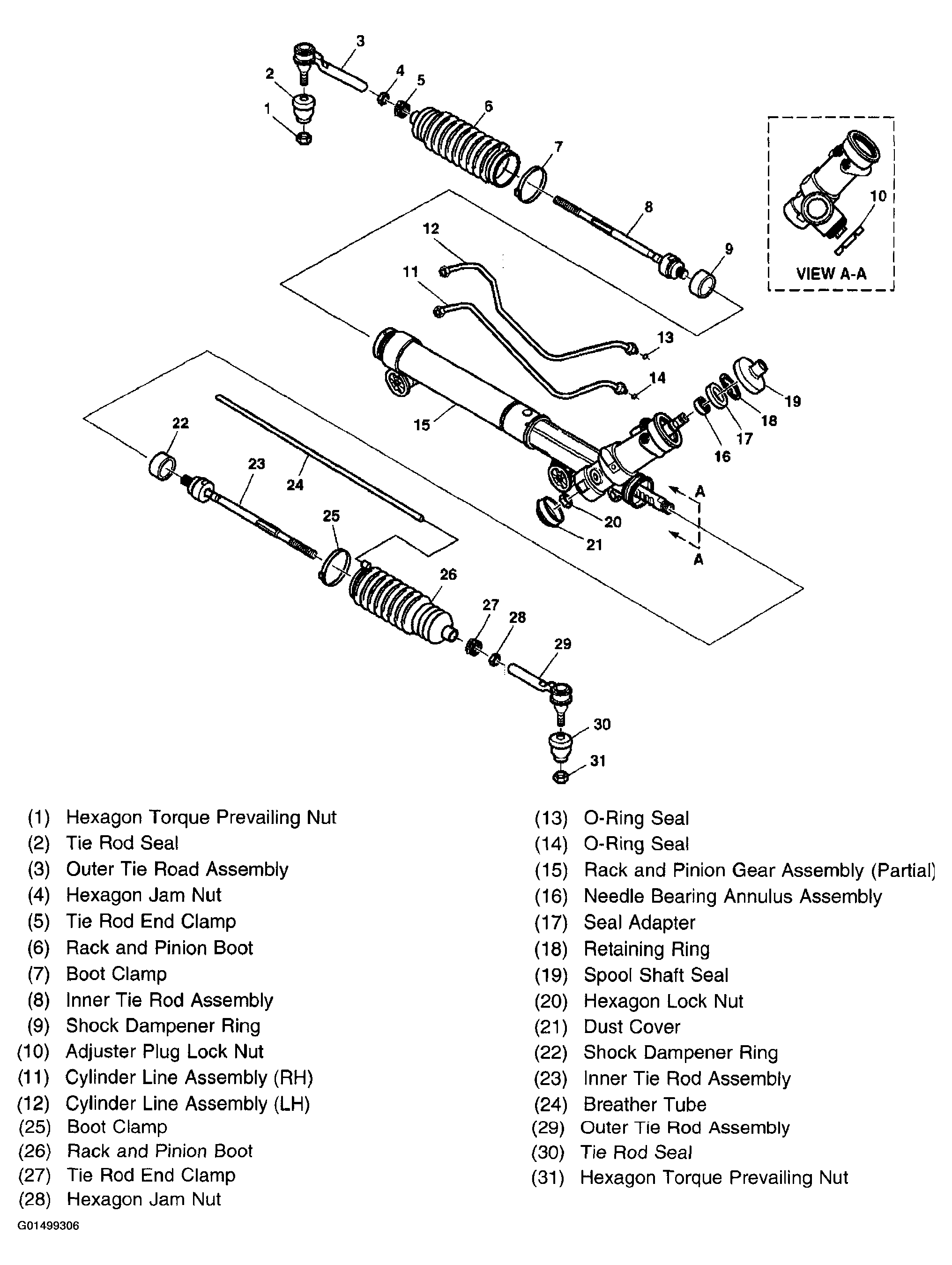

Fig 1: Exploded View Of Rack & Pinion Power Steering Gear
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
