Installation Procedure

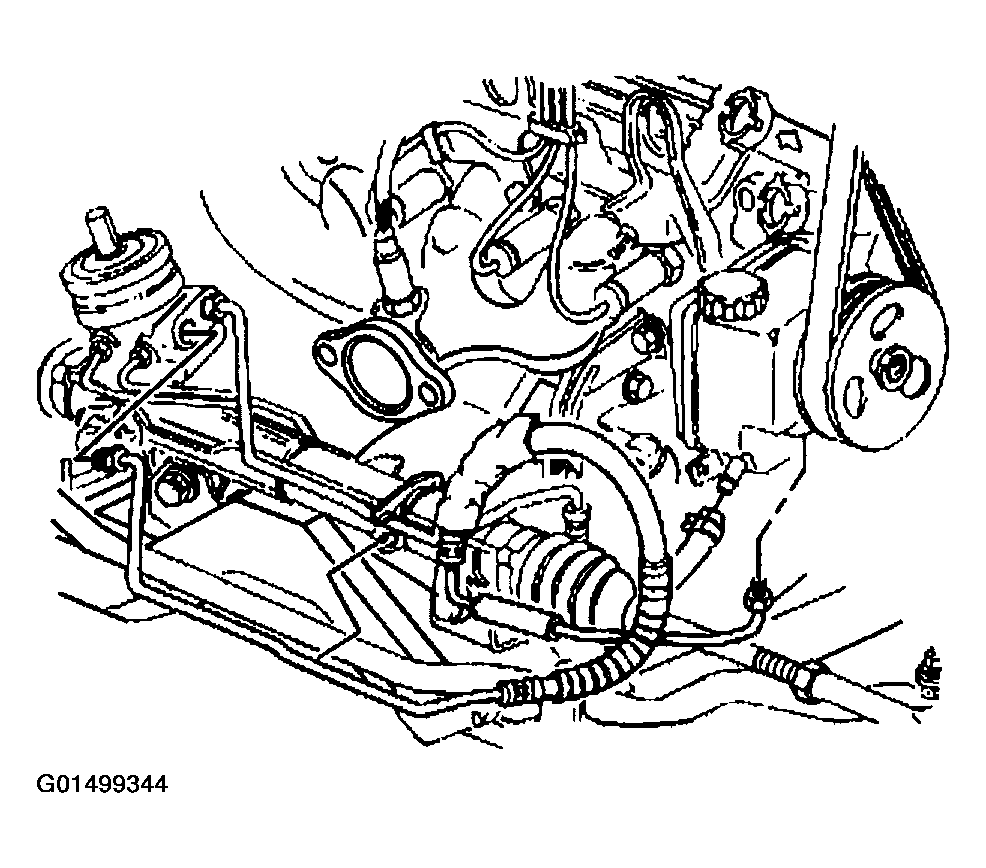

- Install the cooler pipe.
- Install the cooler pipe retaining screws and brackets.
Tighten
Tighten the screws to 10 N.m (89 Ib. in).
- Install the low pressure hose to the cooler pipe.
- Install the cooler pipe low pressure line to the power steering gear.
Torque
Torque to 27 N.m (20 lb ft).
- Install the engine splash shield. Refer to SPLASH SHIELD REPLACEMENT -- ENGINE .
- Lower the vehicle.
