Removal Procedure

  1. Raise and support the vehicle.
  2. If the vehicle is equipped with all wheel drive, remove the right side engine splash shield in order to access the heat shield. Refer to SPLASH SHIELD REPLACEMENT -- ENGINE .
    Fig 1: Removing Right Side Engine Splash Shield
    G01499351Courtesy of GENERAL MOTORS CORP.
  3. Remove the steering gear heat shield bolts.
  4. Remove the steering gear heat shield.

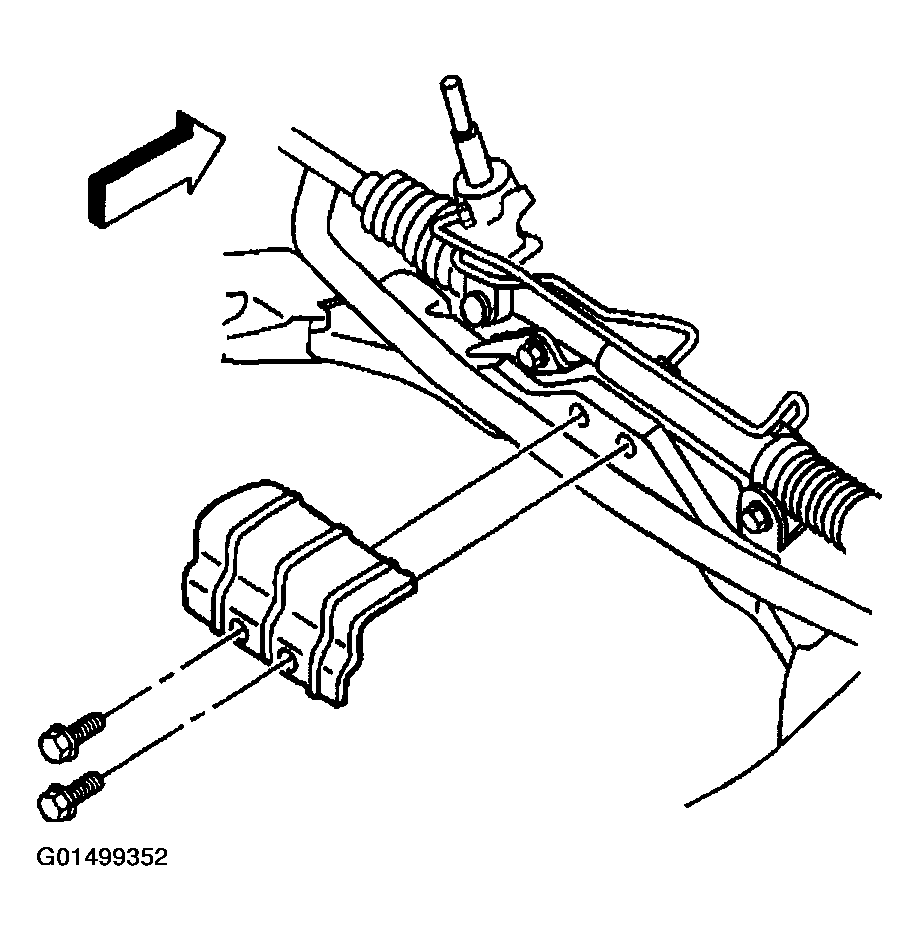

    Fig 2: Removing Steering Gear Heat Shield
    G01499352Courtesy of GENERAL MOTORS CORP.
