Installation Procedure

Install the outer tie rod (3) to the inner tie rod (1).
Do not tighten the tie rod jam nut (2).

Fig 1: Installing Outer Tie Rod To Inner Tie Rod
Courtesy of GENERAL MOTORS CORP.
Install the outer tie rod (2) to the steering knuckle (1).

Fig 2: Installing Outer Tie Rod To Steering Knuckle
Courtesy of GENERAL MOTORS CORP.

Important: This is a prevailing torque type fastener.

This fastener may be reused ONLY if:
- The fastener and its counterpart are clean and free from rust
- The fastener develops 2 N.m (18 Ib. in) of torque (drag) against its counterpart prior to the fastener seating.
If the fastener does not meet these criteria, REPLACE the fastener.
Install the tie rod ball stud nut.
Tighten

Tighten the tie rod ball stud nut to 30 N.m (22 lb ft) + 120 degrees (2 flats).

Important: Ensure that 2.5-4.5 tie rod end threads are visible beyond the tie rod nut nylon.
Inspect and adjust the toe as necessary. Refer to FRONT TOE ADJUSTMENT .

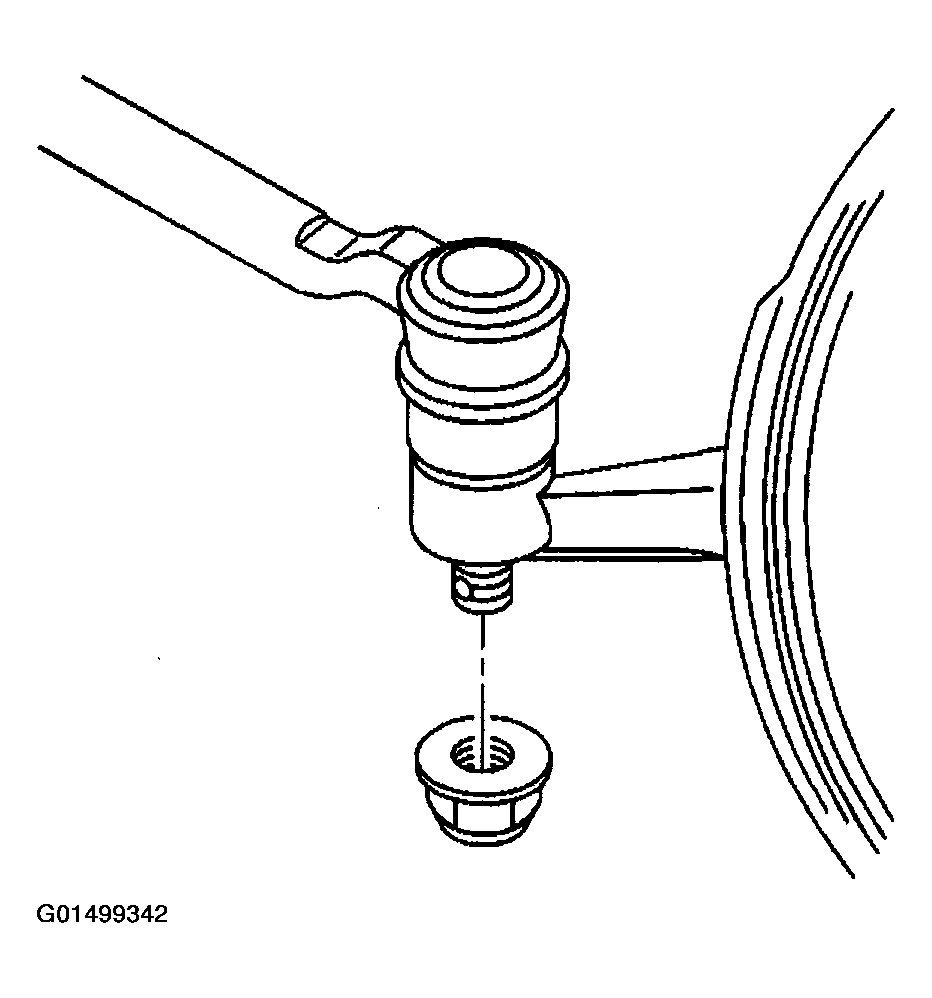

Fig 3: Installing Tie Rod Ball Stud Nut
Courtesy of GENERAL MOTORS CORP.
