Removal Procedure

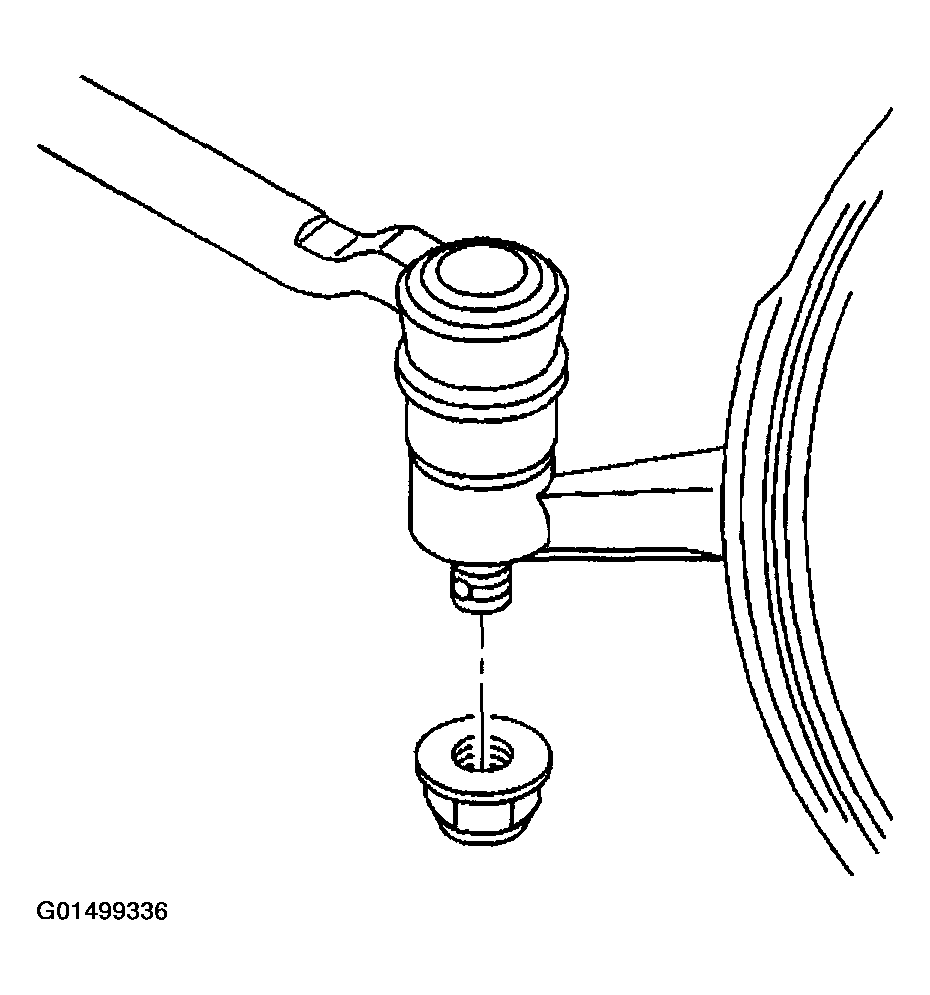

Remove the tie rod ball stud nut.

Fig 1: Removing Tie Rod Ball Stud Nut
Courtesy of GENERAL MOTORS CORP.

NOTE: Do not attempt to free the ball stud by using a pickle fork or wedge type tool, because seal or bushing damage could result. Use the proper tool to separate all ball joints.

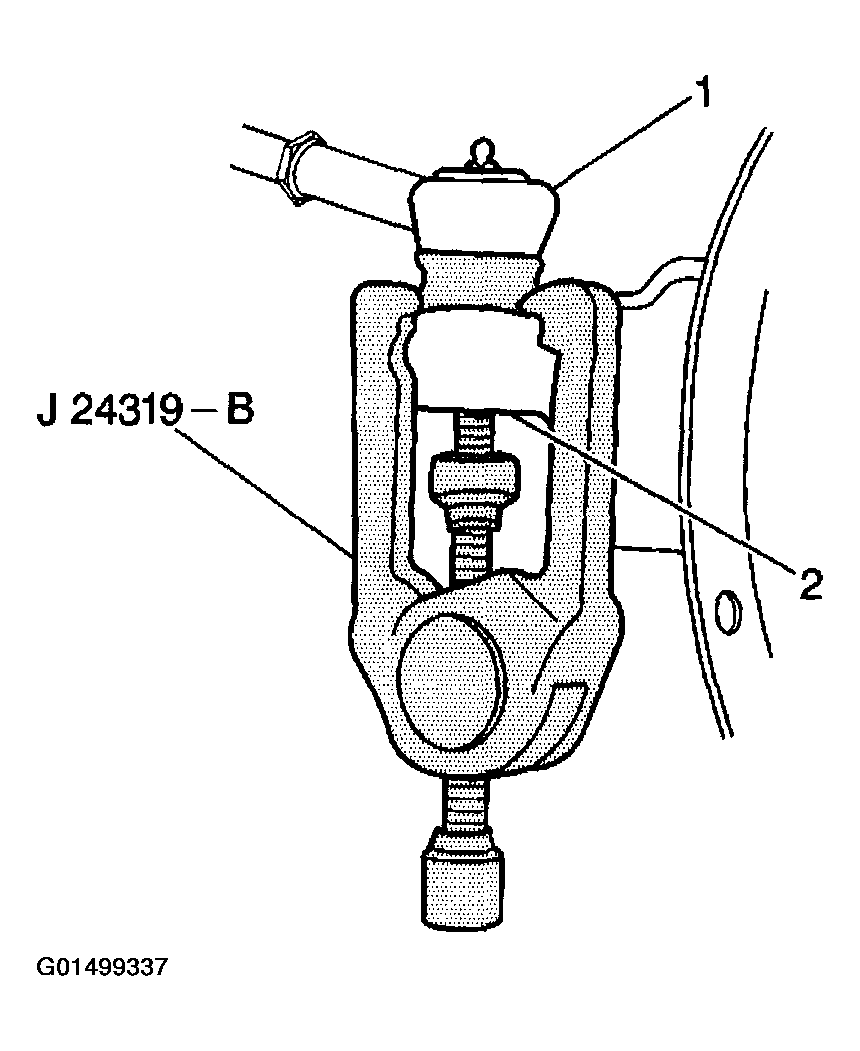

Use the J 24319-B in order to separate the outer tie rod (1) from the steering knuckle (2).

Fig 2: Separating Outer Tie Rod From Steering Knuckle
Courtesy of GENERAL MOTORS CORP.
Loosen the tie rod jam nut (2).

Fig 3: Loosening Tie Rod Jam Nut
Courtesy of GENERAL MOTORS CORP.
Remove the outer tie rod (3) from the inner tie rod (1).

Fig 4: Removing Outer Tie Rod From Inner Tie Rod
Courtesy of GENERAL MOTORS CORP.
