Steering Column Disassembled View (Aztek)
Steering Column Disassembled View (Aztek)

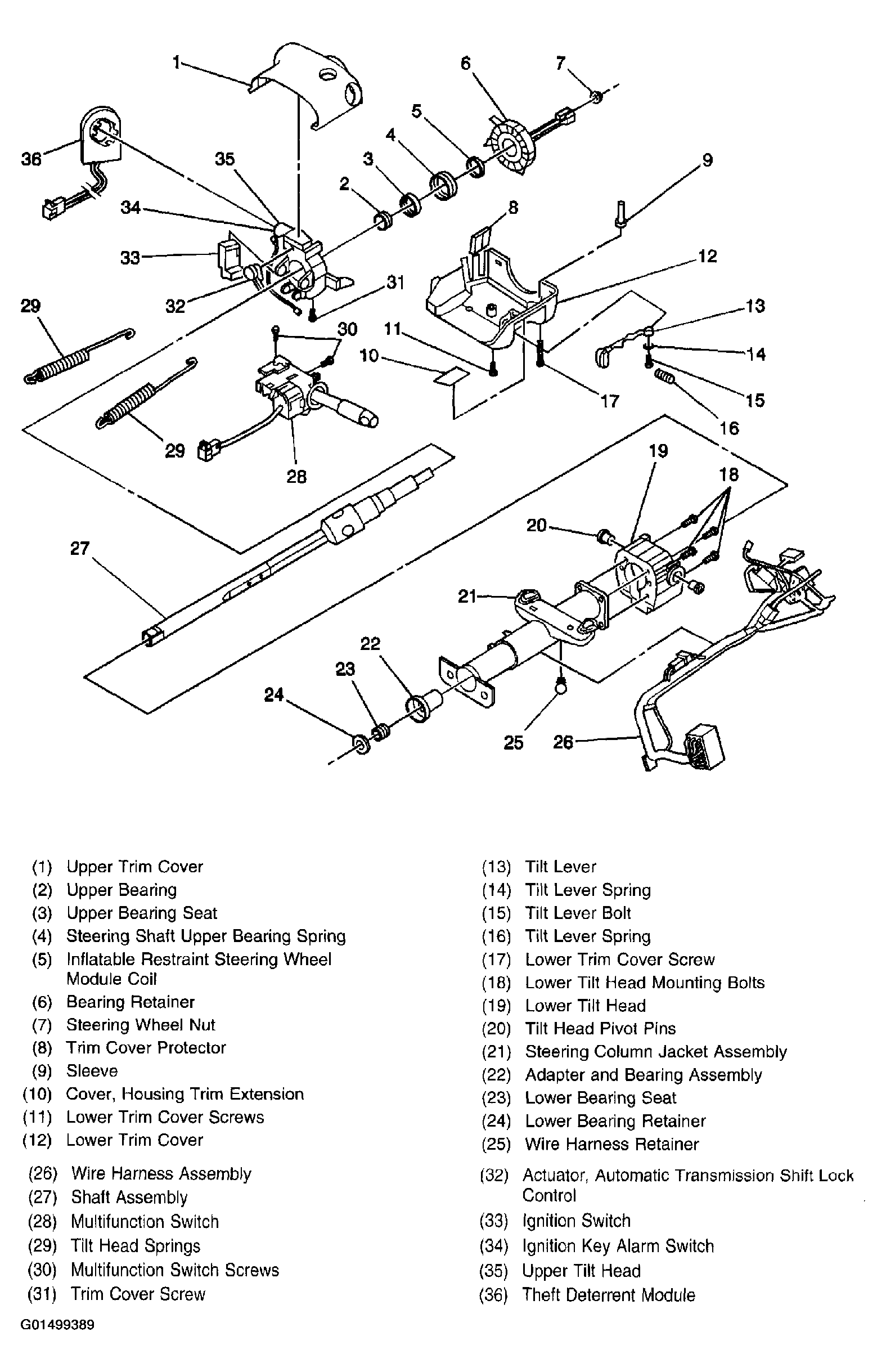

Fig 1: Exploded View Of Steering Column Assembly (Aztek)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
