Steering Column Disassembled View (Rendezvous)
Steering Column Disassembled View (Rendezvous)

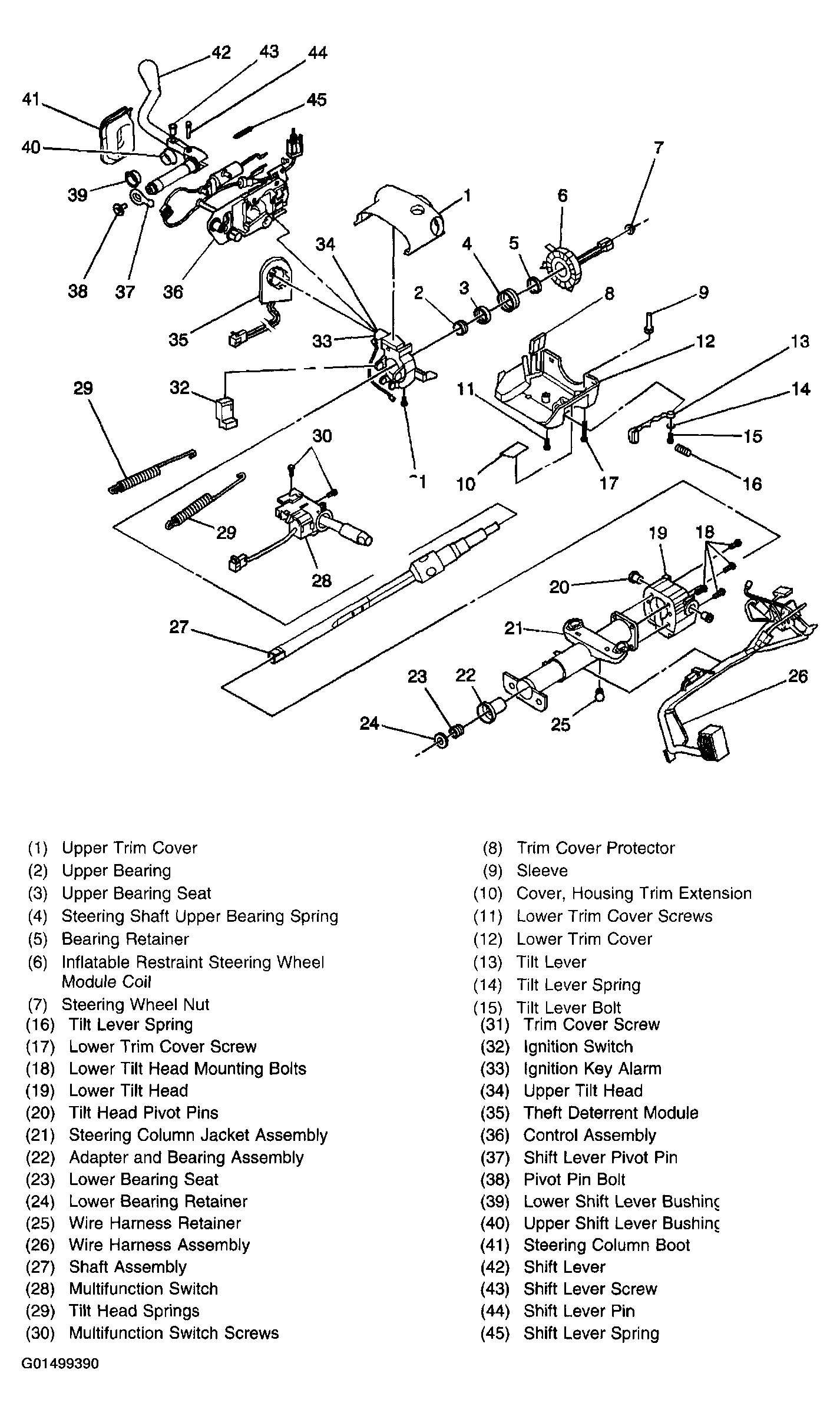

Fig 1: Exploded View Of Steering Column Assembly (Rendezvous)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
