Installation Procedure

Insert the shift lever (1) into the shift lever housing.
Install the shift lever retaining screw (3).
Tighten Tighten the screw to 6.67 N.m (1.5 lb ft).
Position the shift lever boot (2).

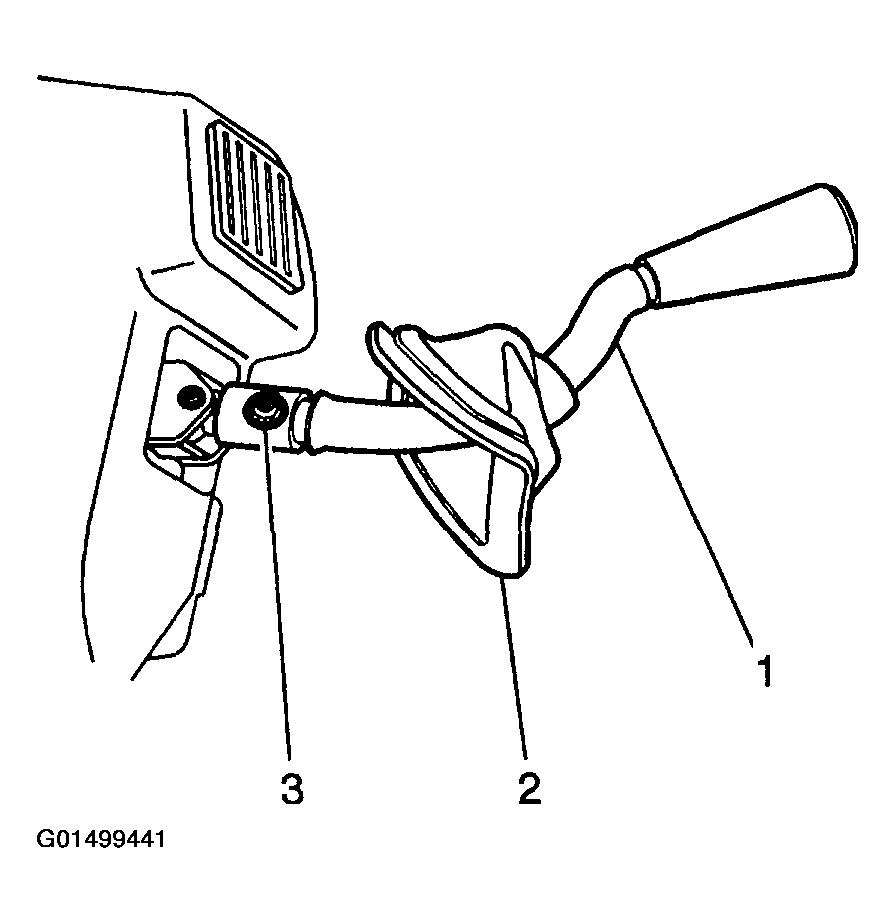

Fig 1: Installing Shift Lever
Courtesy of GENERAL MOTORS CORP.
