Installation Procedure

Install the wire harness to the steering column.
Replace all the tie straps (2).
Connect all the electrical connectors.
Install the steering column. Refer to STEERING COLUMN REPLACEMENT .

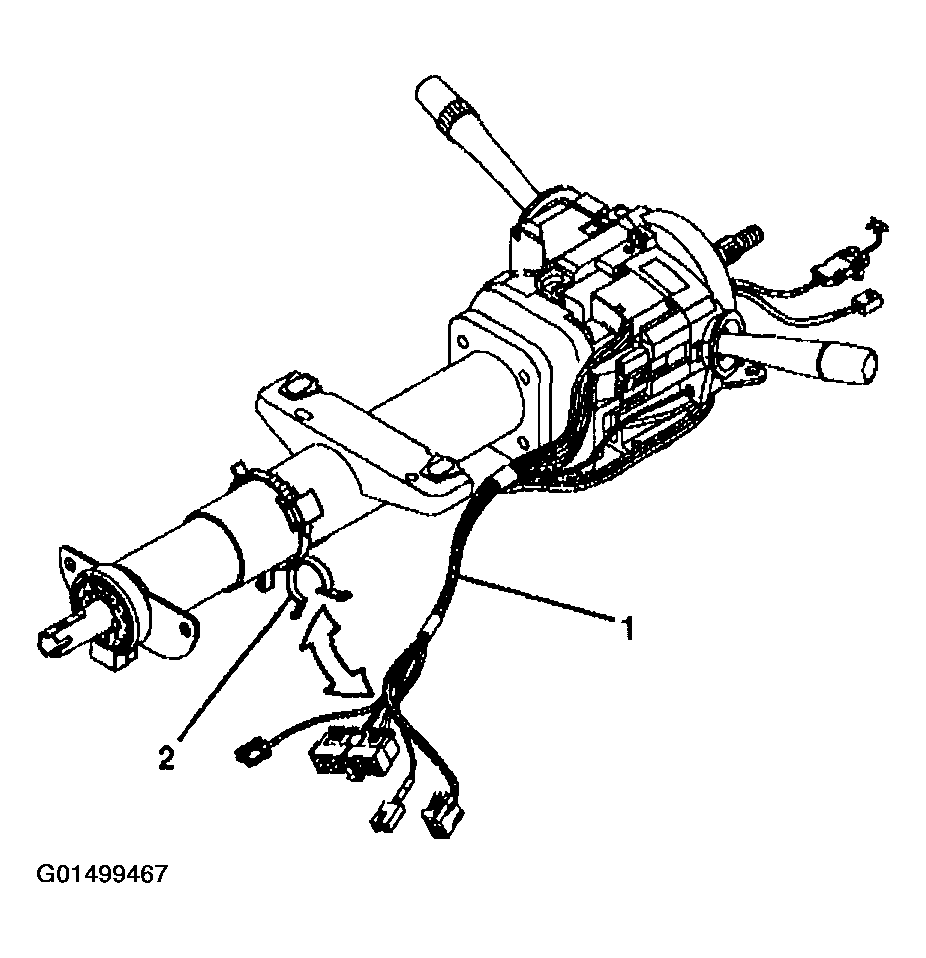

Fig 1: Installing Wire Harness To Steering Column
Courtesy of GENERAL MOTORS CORP.
