Installation Procedure

Install the air dryer (1) to the compressor.

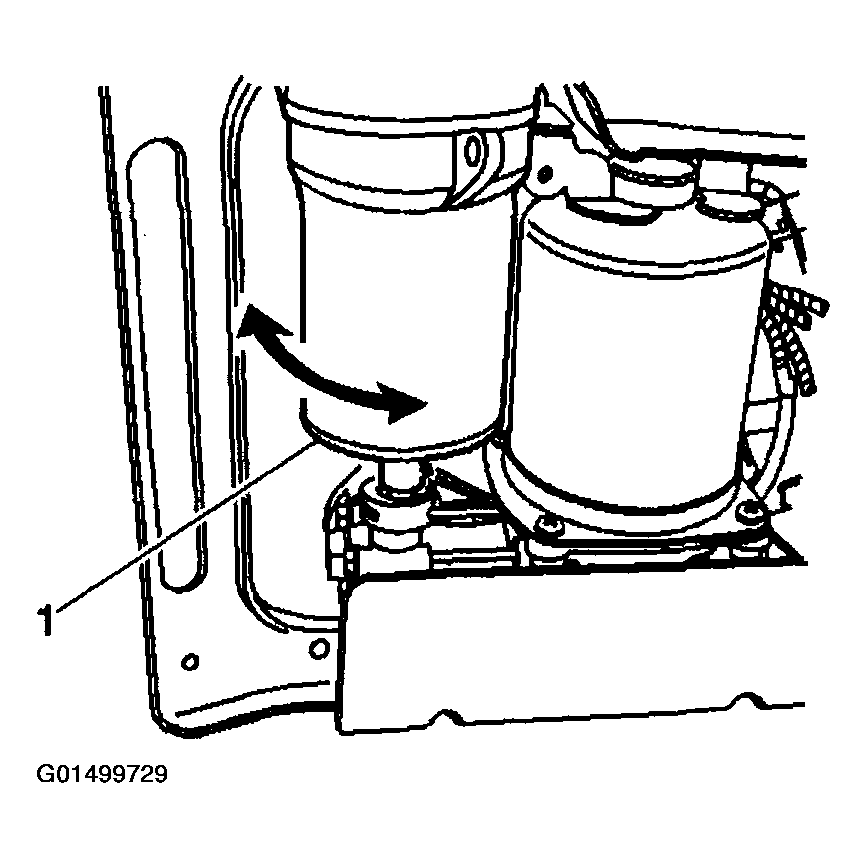

Fig 1: Installing Air Dryer To Compressor
Courtesy of GENERAL MOTORS CORP.
Install the air dryer mounting screw (1).
Tighten

Tighten the screw to 6 N.m (53 Ib in).

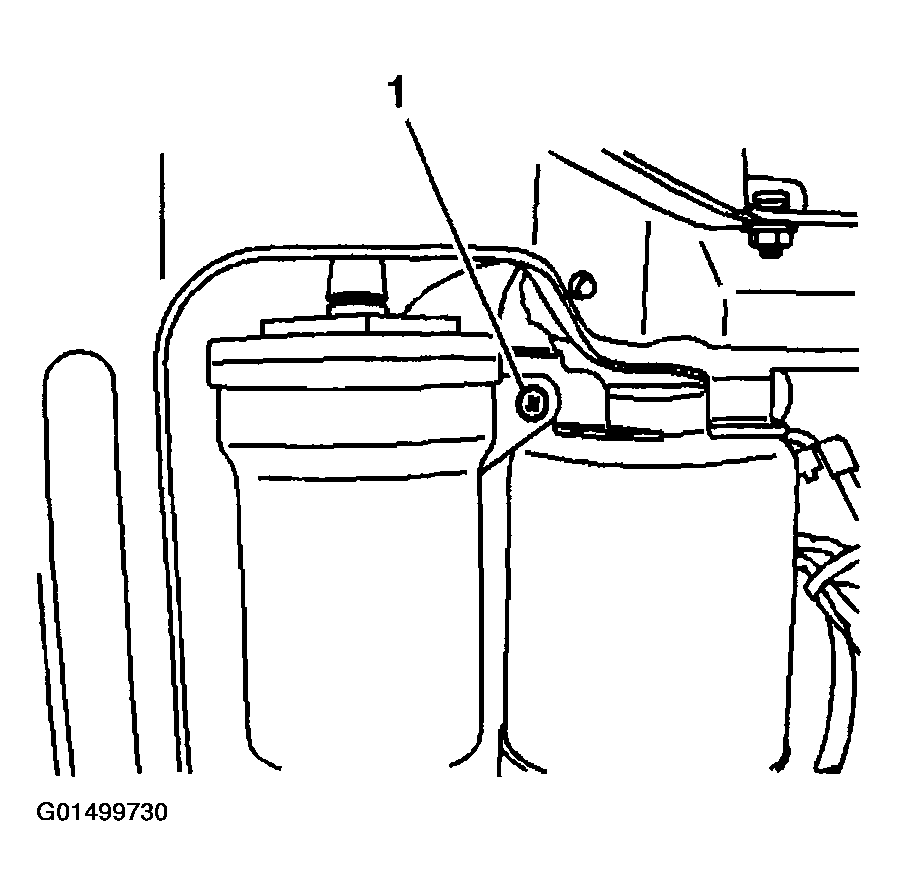

Fig 2: Installing Air Dryer Mounting Screw
Courtesy of GENERAL MOTORS CORP.
Install the hose (1) onto the air dryer (2).
Install the compressor to the vehicle. Refer to AIR COMPRESSOR REPLACEMENT .
Lower the vehicle.

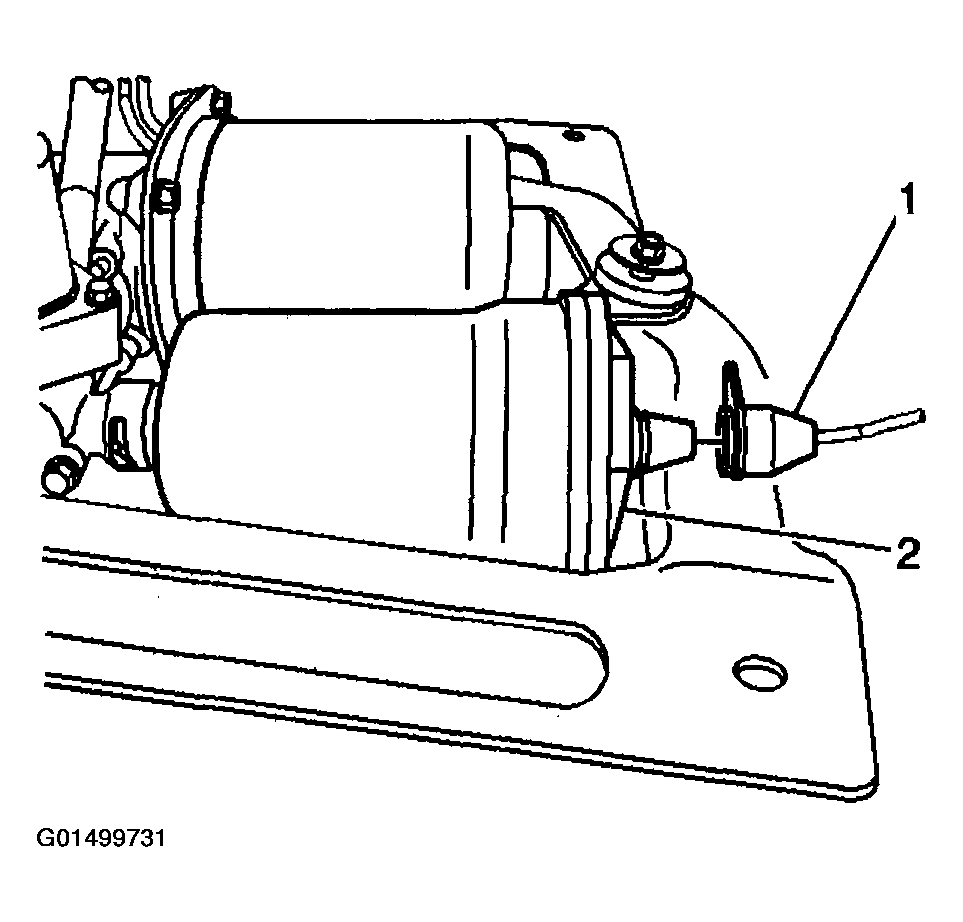

Fig 3: Installing Hose Onto Air Dryer
Courtesy of GENERAL MOTORS CORP.
