Removal Procedure

Raise and support the vehicle.
Important: When removing the link, do NOT bend or break the sensor arm.
Remove the automatic level control sensor link from the tie rod ball stud.
Remove the ball stud from the rear axle tie rod.

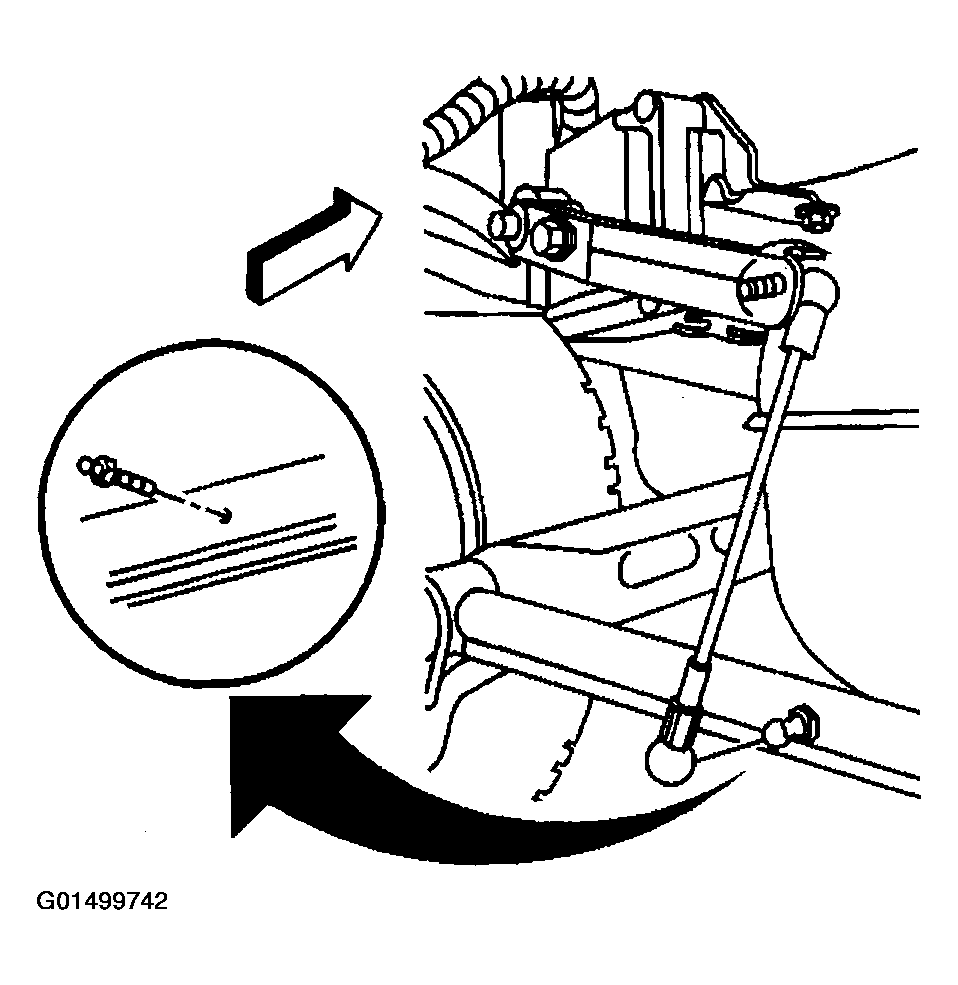

Fig 1: Removing Ball Stud From Rear Axle Tie Rod
Courtesy of GENERAL MOTORS CORP.
