Installation Procedure

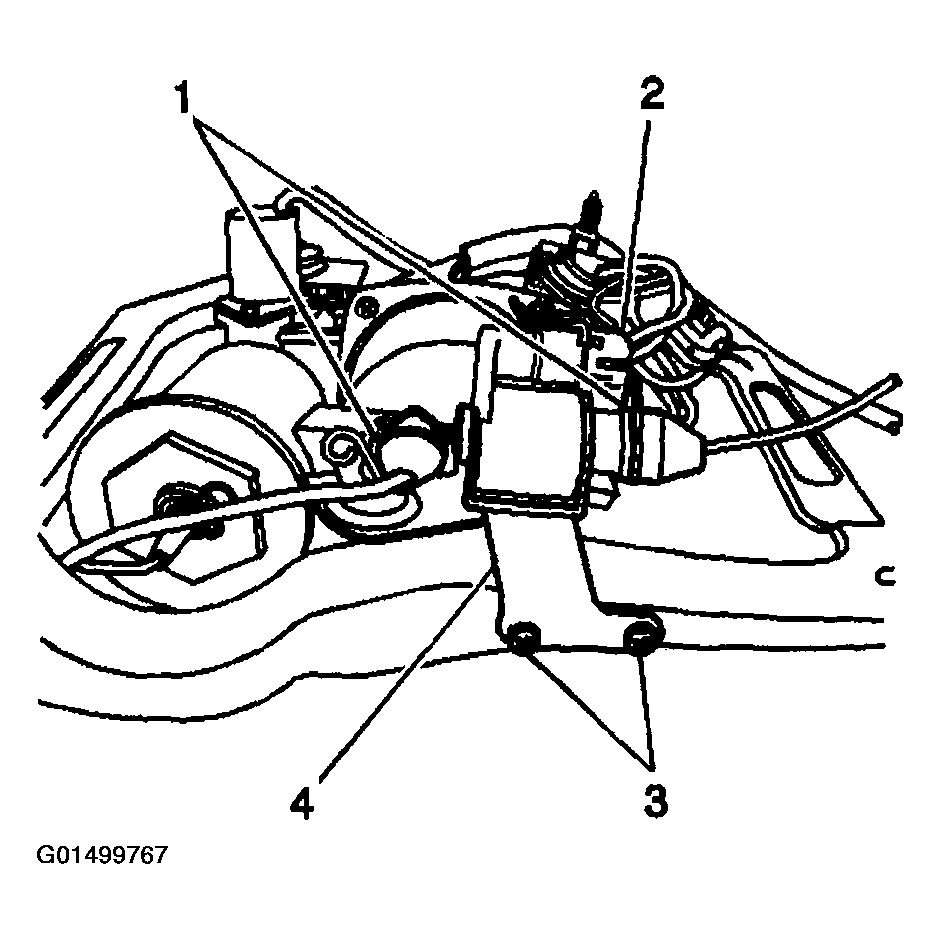

- Install the inflator solenoid to the air compressor assembly bracket.
- Install the screws (3) into the inflator solenoid and the air compressor bracket.
Tighten
Tighten the screws to 6 N.m (53 lb in).
- Install the hoses (1) and the electrical connector (2) onto the inflator solenoid.
- Install the air compressor assembly. Refer to AIR COMPRESSOR REPLACEMENT .
- Lower the vehicle.
