Installation Procedure

  1. Install a new wheel stud from the back side of the bearing/hub.
  2. Install three flat washers (1) to the wheel stud (3).
  3. Install a hex nut (2) to the wheel stud (3).

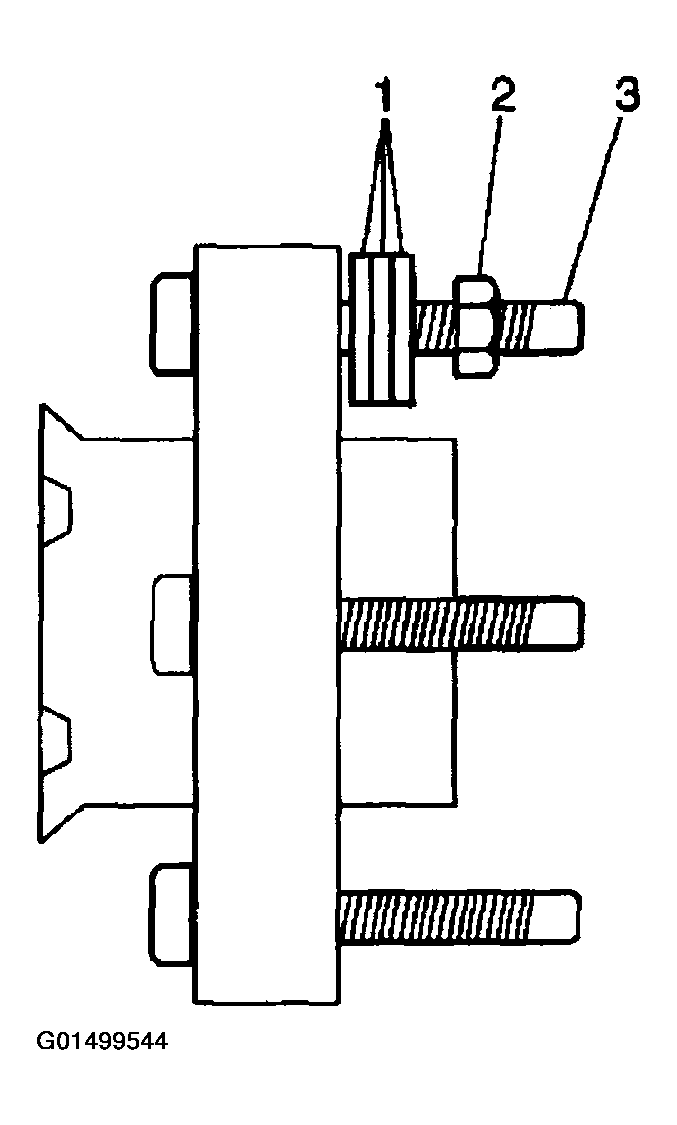

    Fig 1: Installing Three Flat Washers And A Nut To Wheel Stud
    G01499544Courtesy of GENERAL MOTORS CORP.
  4. Tighten the hex nut until the stud head is fully seated in the bearing/hub flange.
  5. Remove the hex nut and the washers from the wheel stud.
  6. Install the brake rotor. Refer to BRAKE ROTOR .
  7. Install the tire and wheel.
  8. Lower the vehicle.

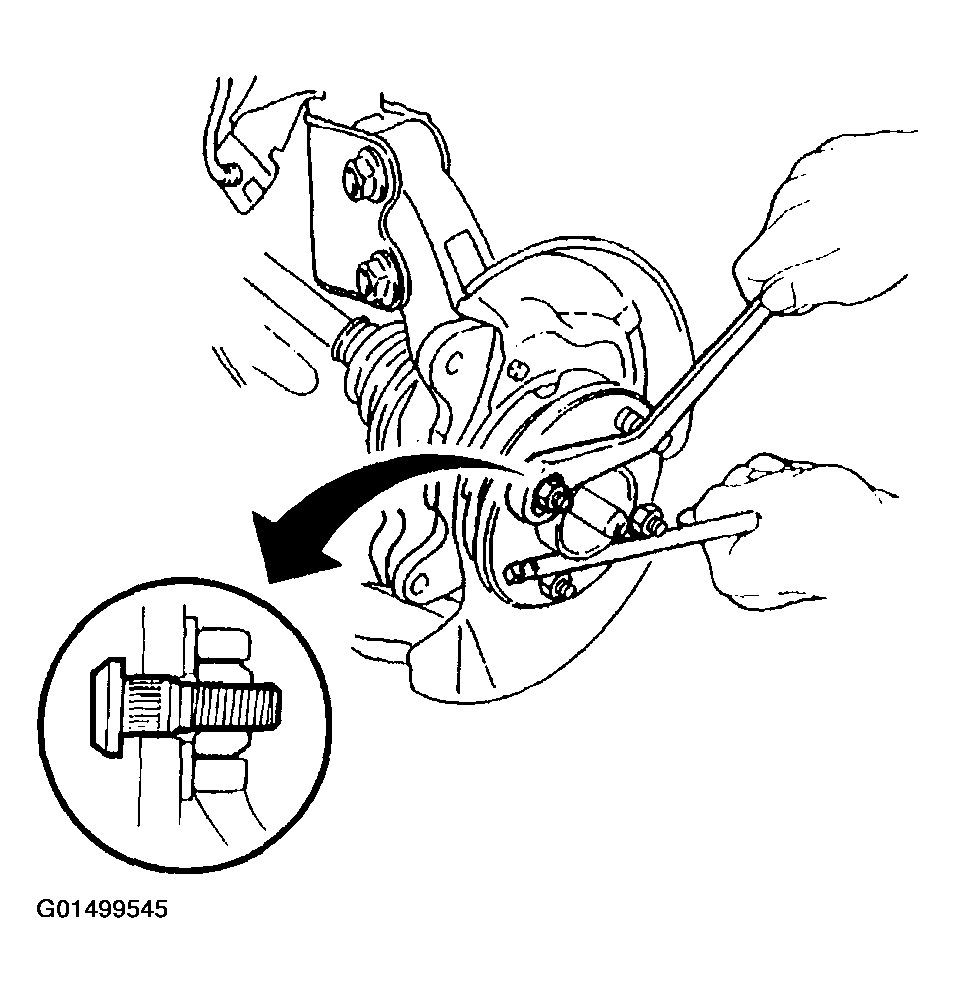

    Fig 2: Tightening Hex Nut
    G01499545Courtesy of GENERAL MOTORS CORP.
