Connector End Views

Fig 1: Identifying A/T In-Line 20-Way Connector - Engine Side
G01501706Courtesy of GENERAL MOTORS CORP.

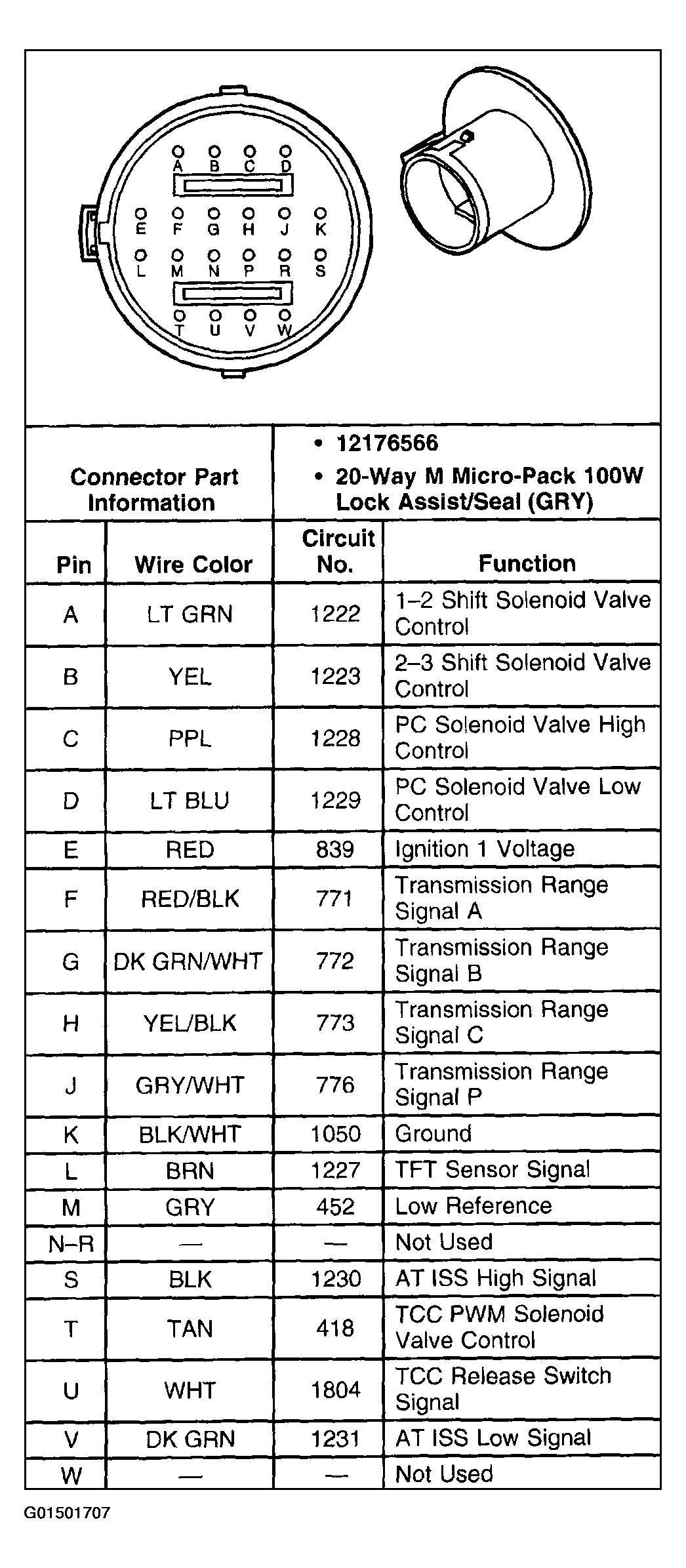

Fig 2: Identifying A/T In-Line 20-Way Connector - Transmission Side
G01501707Courtesy of GENERAL MOTORS CORP.
