Removal Procedure

  1. Remove the case side cover. Refer to CASE SIDE COVER REPLACEMENT  .
  2. Disconnect the transaxle wiring harness.
  3. Remove the input speed sensor clip (441) from the case cover.
  4. Remove the input speed sensor (440) from the case cover.

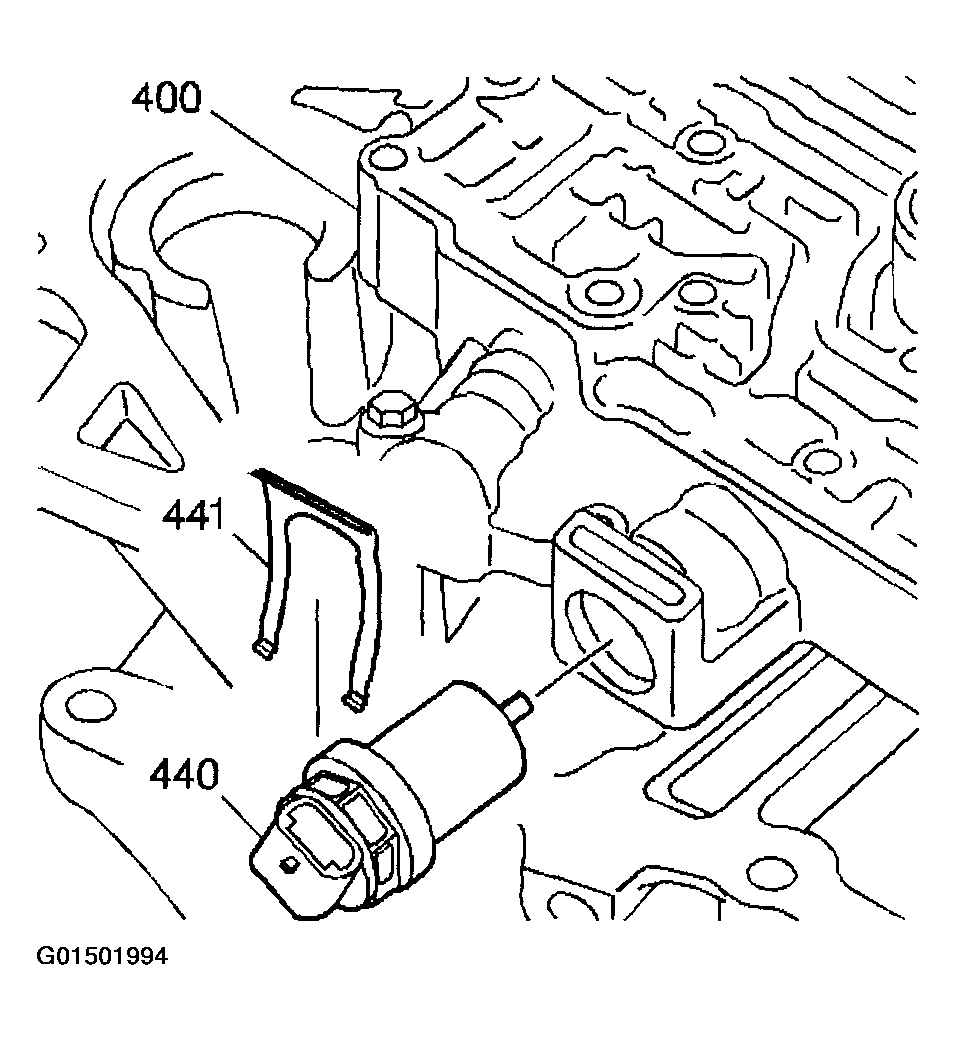

    Fig 1: Removing Input Speed Sensor (1 Of 2)
    G01501994Courtesy of GENERAL MOTORS CORP.
  5. Inspect the input speed sensor (440) for the following conditions:
    • Damaged or missing magnet
    • Damaged housing
    • Bent or missing electrical terminals
    • Damaged speed sensor clip (441)
    Fig 2: Removing Input Speed Sensor (2 Of 2)
    G01501995Courtesy of GENERAL MOTORS CORP.
