Installation Procedure

  1. Carefully install the shift indicator.

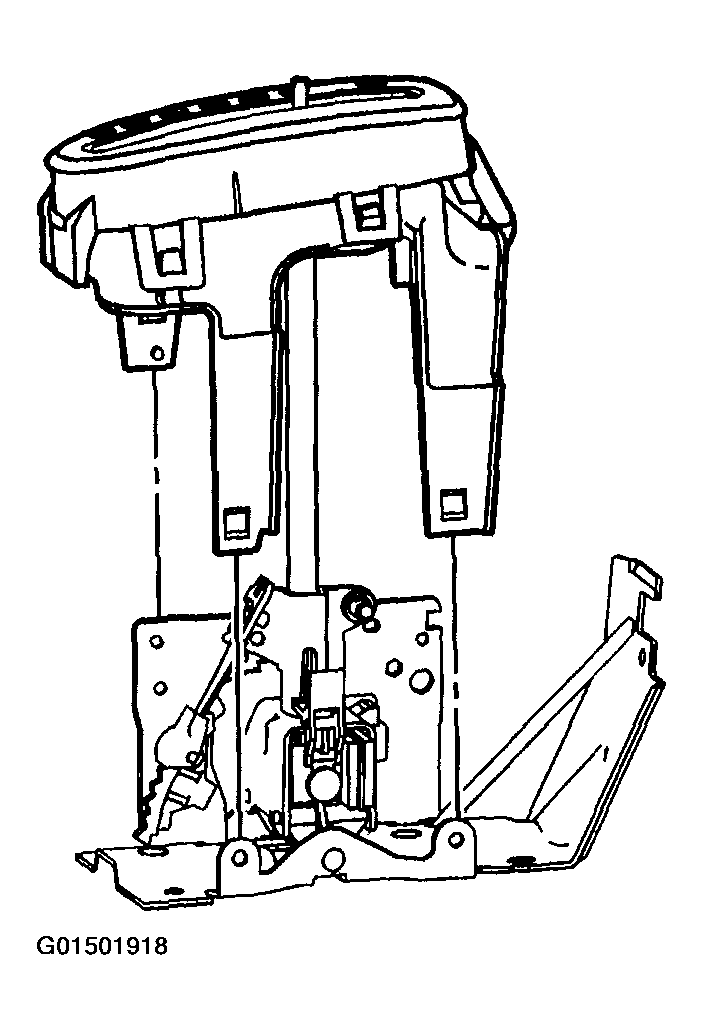

    Fig 1: Installing Shift Indicator (1 Of 5)
    G01501918Courtesy of GENERAL MOTORS CORP.
  2. Ensure that the alignment pin and alignment tab are properly engaged.

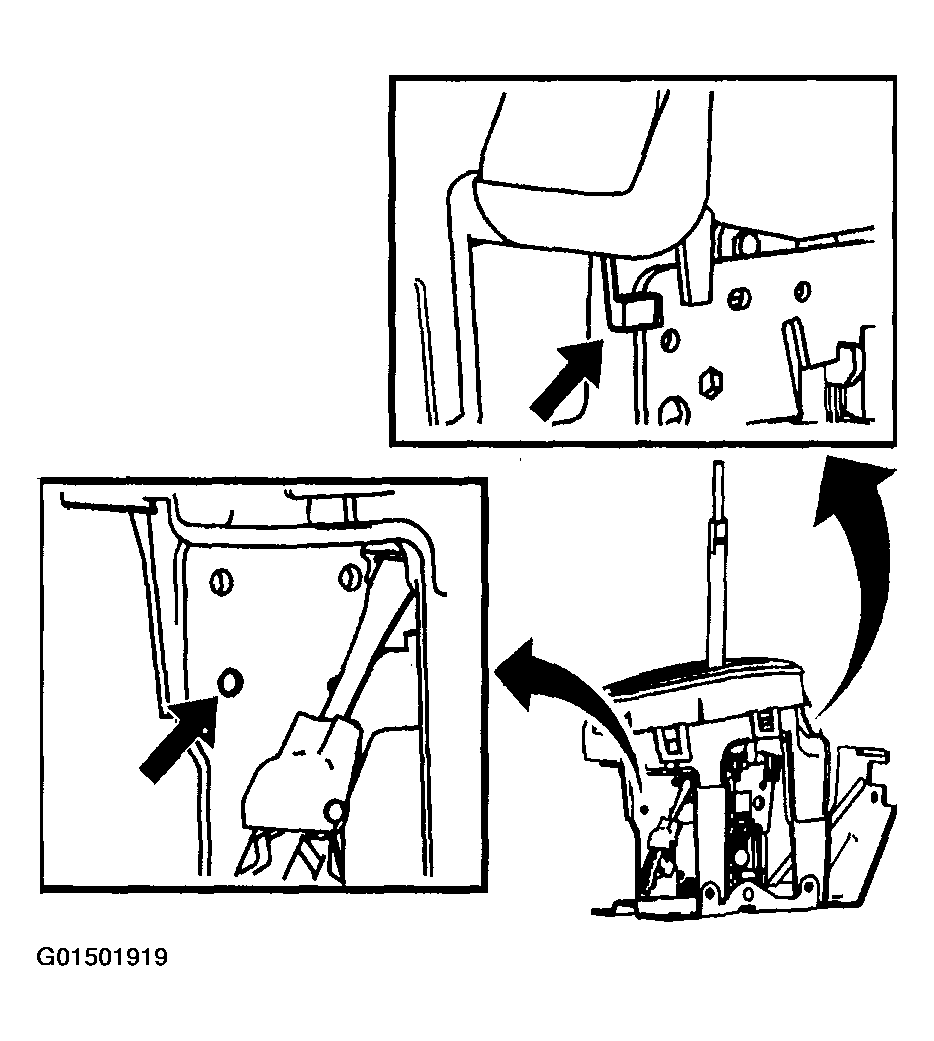

    Fig 2: Installing Shift Indicator (2 Of 5)
    G01501919Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the shift lever is centered in the shift indicator.

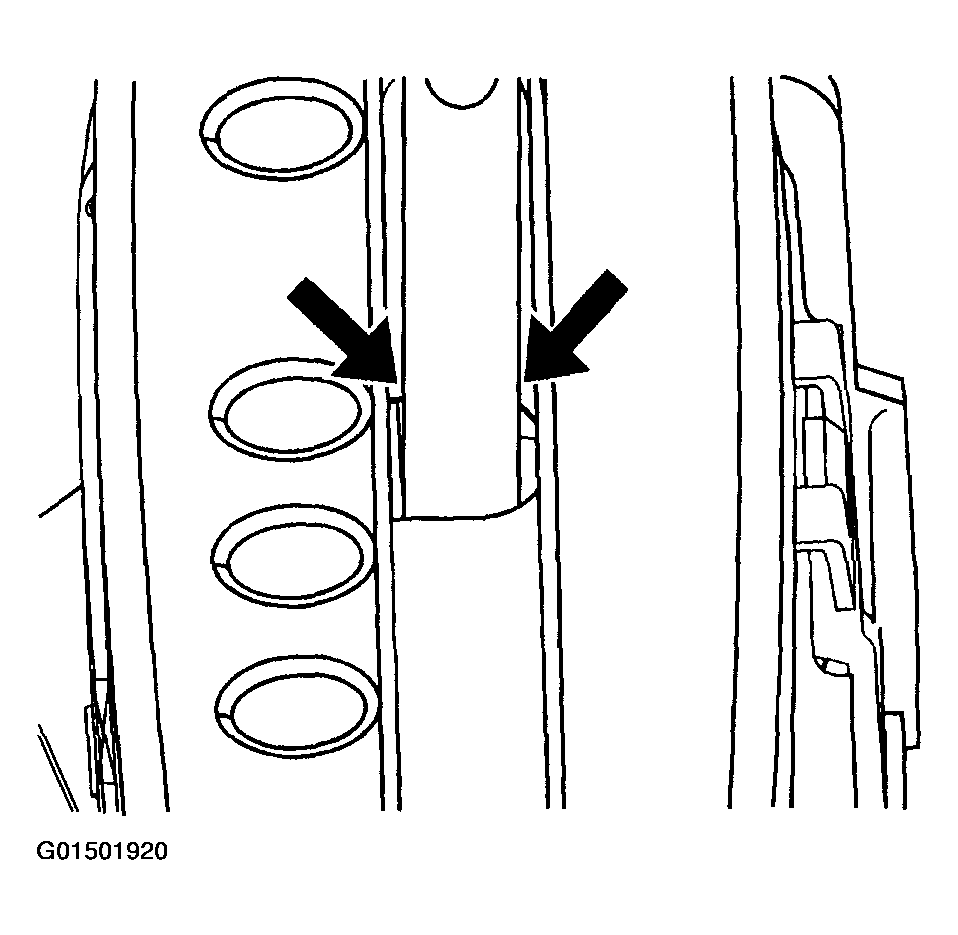

    Fig 3: Installing Shift Indicator (3 Of 5)
    G01501920Courtesy of GENERAL MOTORS CORP.
  4. Install the shift indicator fasteners.

    Tighten

    Tighten the shift indicator fasteners in the order shown to 2 N.m (18 Ib. in).

  5. Move the shift control through the entire range. If the shift lever contacts either side of the shift indicator, loosen the shift indicator fasteners and repeat the installation procedure.
  6. Connect the shift indicator lamp to the shift indicator and ensure that the shift indicator lamp is functional.
  7. Install the center console trim plate. Refer to TRIM PLATE REPLACEMENT -- FRONT FLOOR CONSOLE (AZTEK) or TRIM PLATE REPLACEMENT -- FRONT FLOOR CONSOLE (RENDEZVOUS) .
  8. Install the shift control handle.
  9. Install the shift control handle retainer.
  10. Shift the transaxle into Park.
  11. Disengage the park brake and remove the wheel blocks.

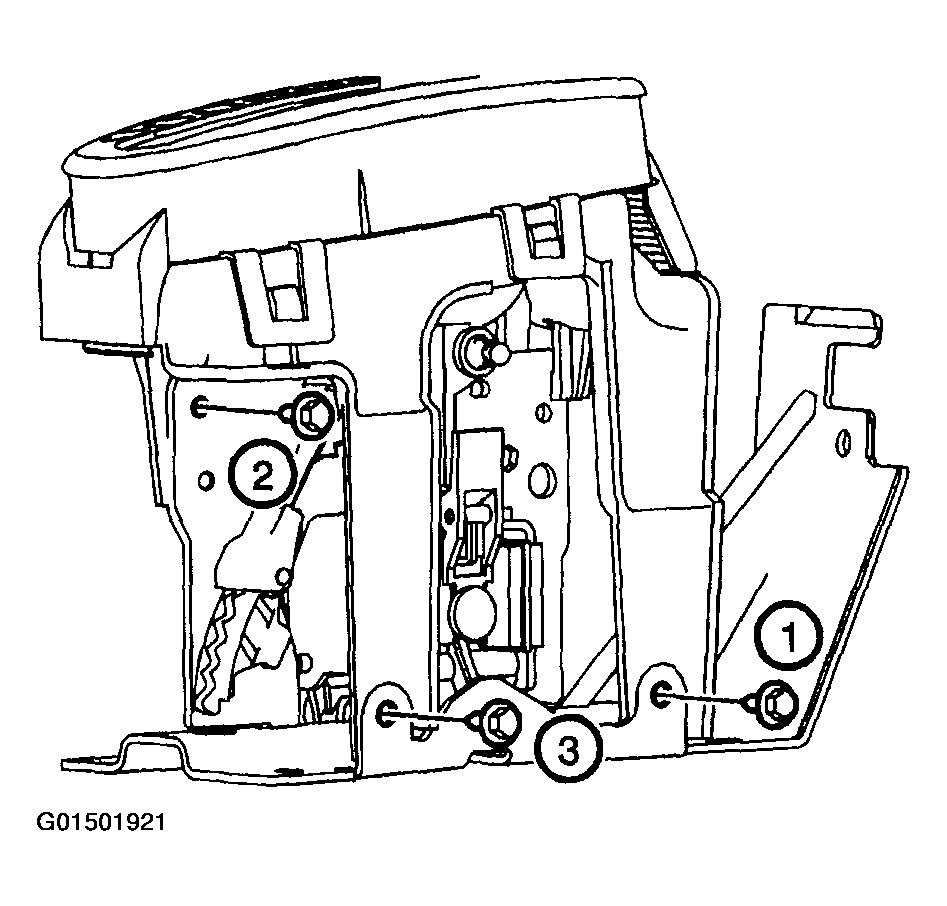

    Fig 4: Installing Shift Indicator (4 Of 5)
    G01501921Courtesy of GENERAL MOTORS CORP.
