Automatic Transaxle Diagnosis, Service & Repair - 4T65-E
›
Specifications
›
Range Reference
Range Reference

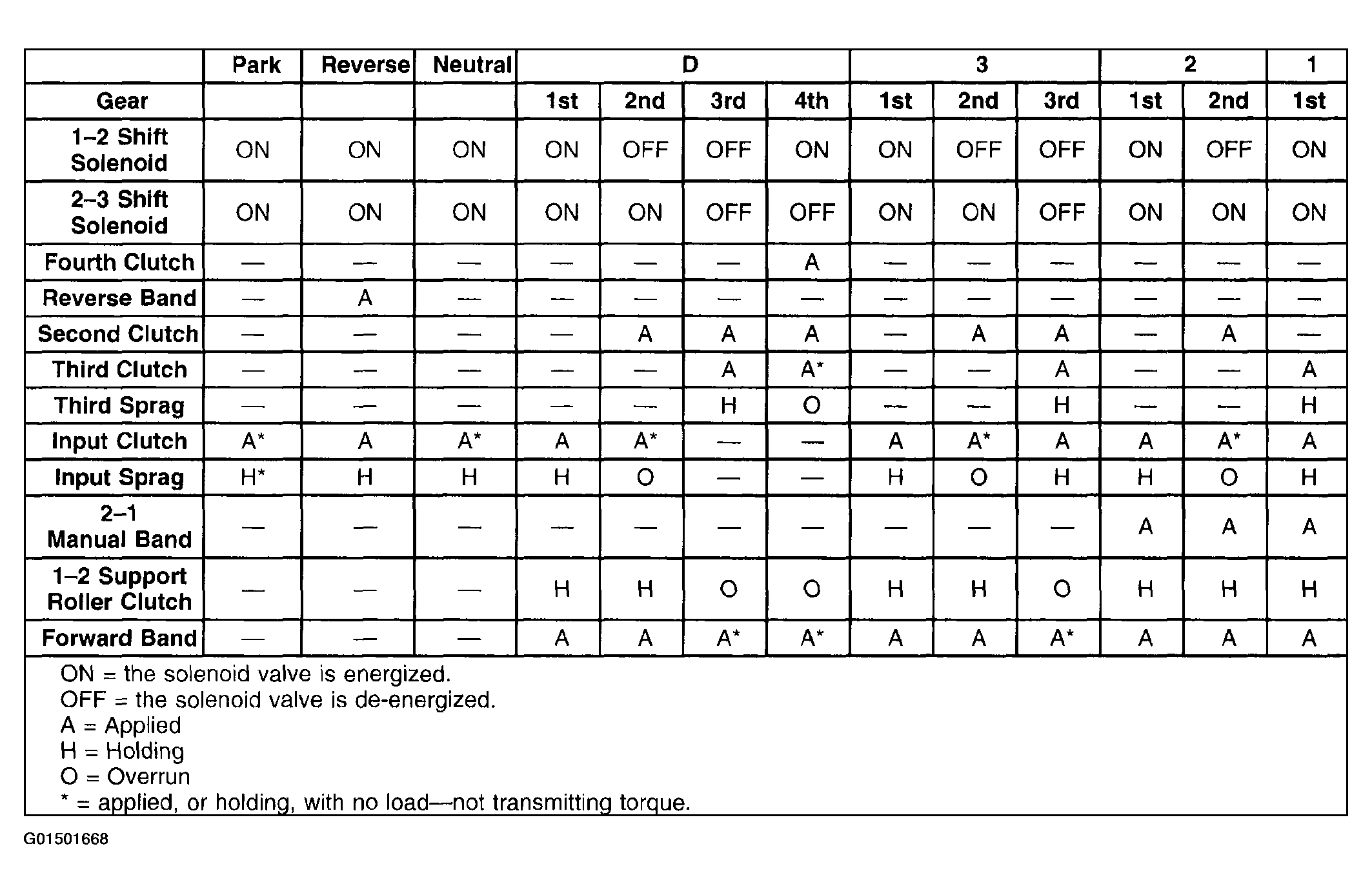

Fig 1: Range Reference
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
