Case Cover Components: Reassembly

Install NEW 3-4 accumulator piston cylinder "O" ring seal onto 3-4 accumulator piston cylinder. Install 3-4 accumulator piston outer and inner spring into 3-4 accumulator piston cylinder. Install NEW 3-4 accumulator piston seal onto 3-4 accumulator piston. Insert 3-4 accumulator piston into 3-4 accumulator piston cylinder. Using a slight twisting motion, insert 3-4 accumulator piston cylinder into case cover. Insert 3-4 accumulator piston pin through front of case cover and into 3-4 accumulator piston. Install manual valve into case cover. Install actuator feed limit valve, spring and spring retainer into case cover. See Fig 1.

Fig 1: Exploded View Of Case Cover Components

Courtesy of GENERAL MOTORS CORP.

Fig 2: Removing Case Cover Bearing

Courtesy of GENERAL MOTORS CORP.

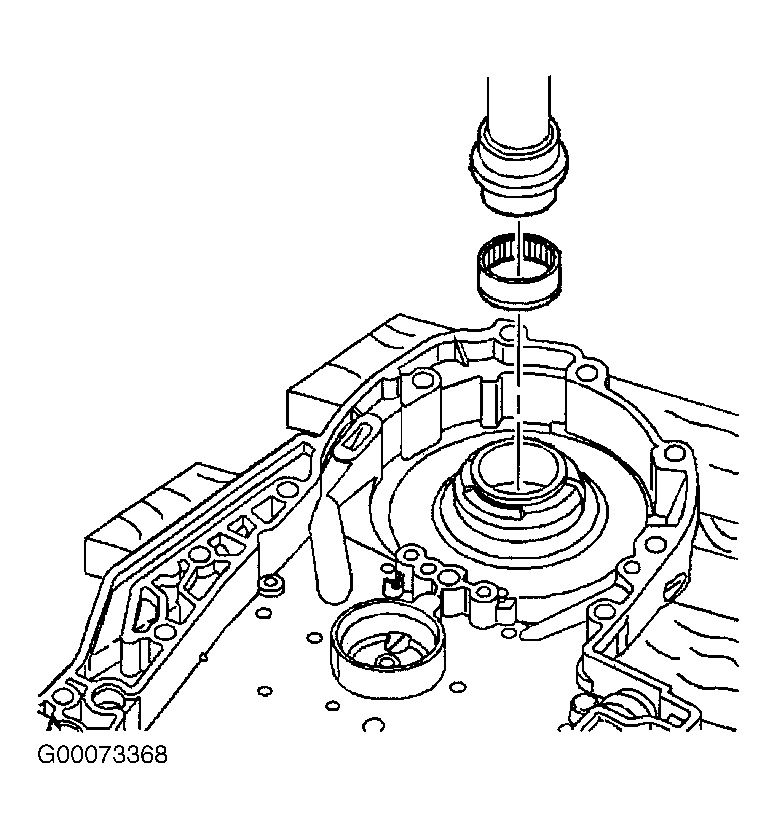

Fig 3: Installing Case Cover Bearing

Courtesy of GENERAL MOTORS CORP.
