Torque Converter

Remove torque converter and turbine shaft "O" ring seal. See Fig 1. Install Holding Fixture (J-28664-B) onto transaxle. See Fig 2. Install transaxle and holding fixture into Base (J-3289-20). Insert pin into base to hold transaxle in desired position.

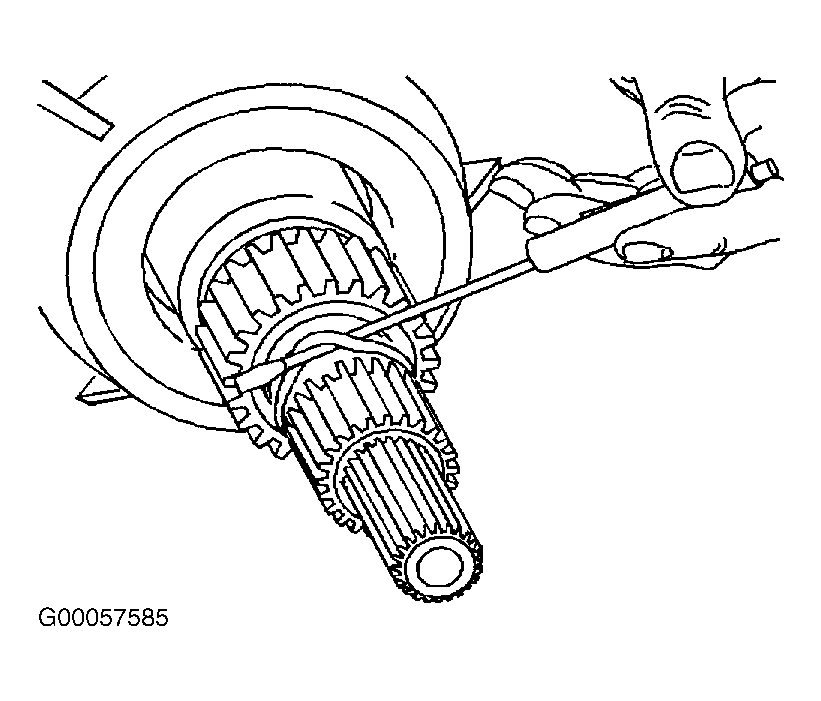

Fig 1: Removing Turbine Shaft "O" Ring Seal

Courtesy of GENERAL MOTORS CORP.

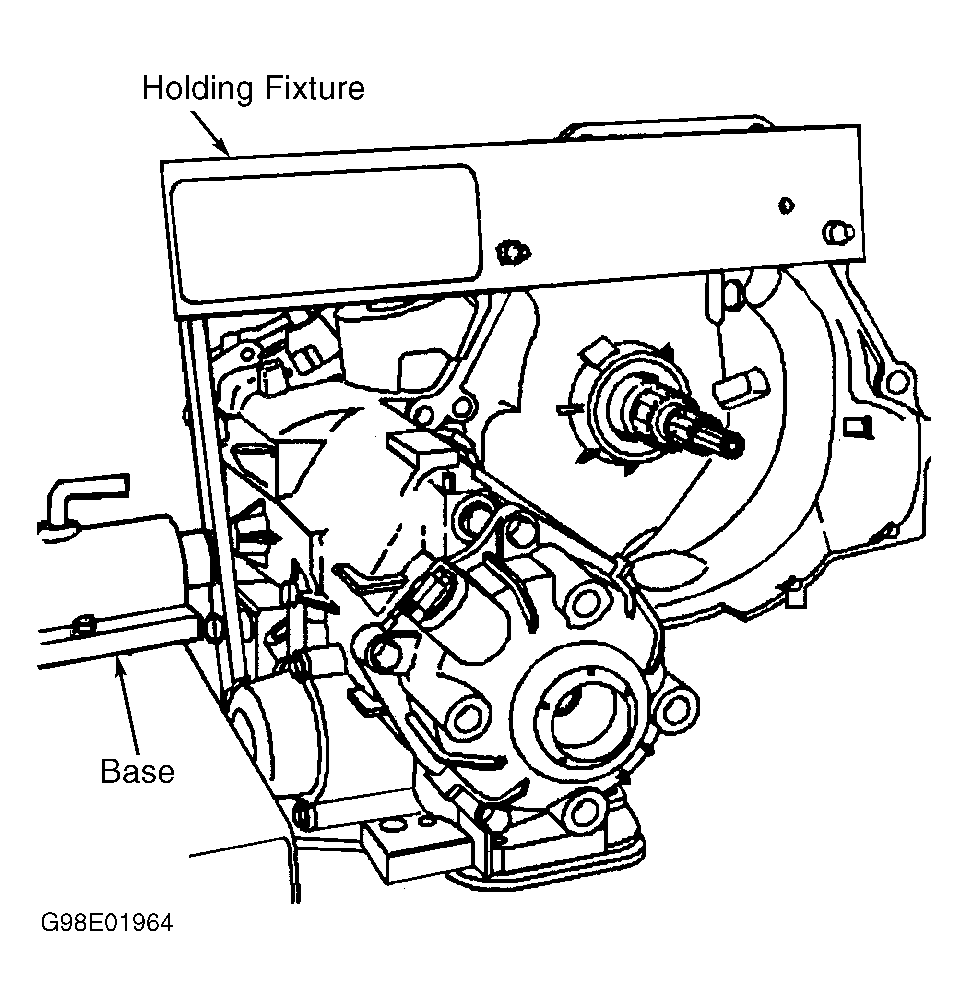

Fig 2: Installing Transaxle Holding Fixture & Base

Courtesy of GENERAL MOTORS CORP.
