Park Lock Solenoid Inoperative
Park Lock Solenoid Inoperative

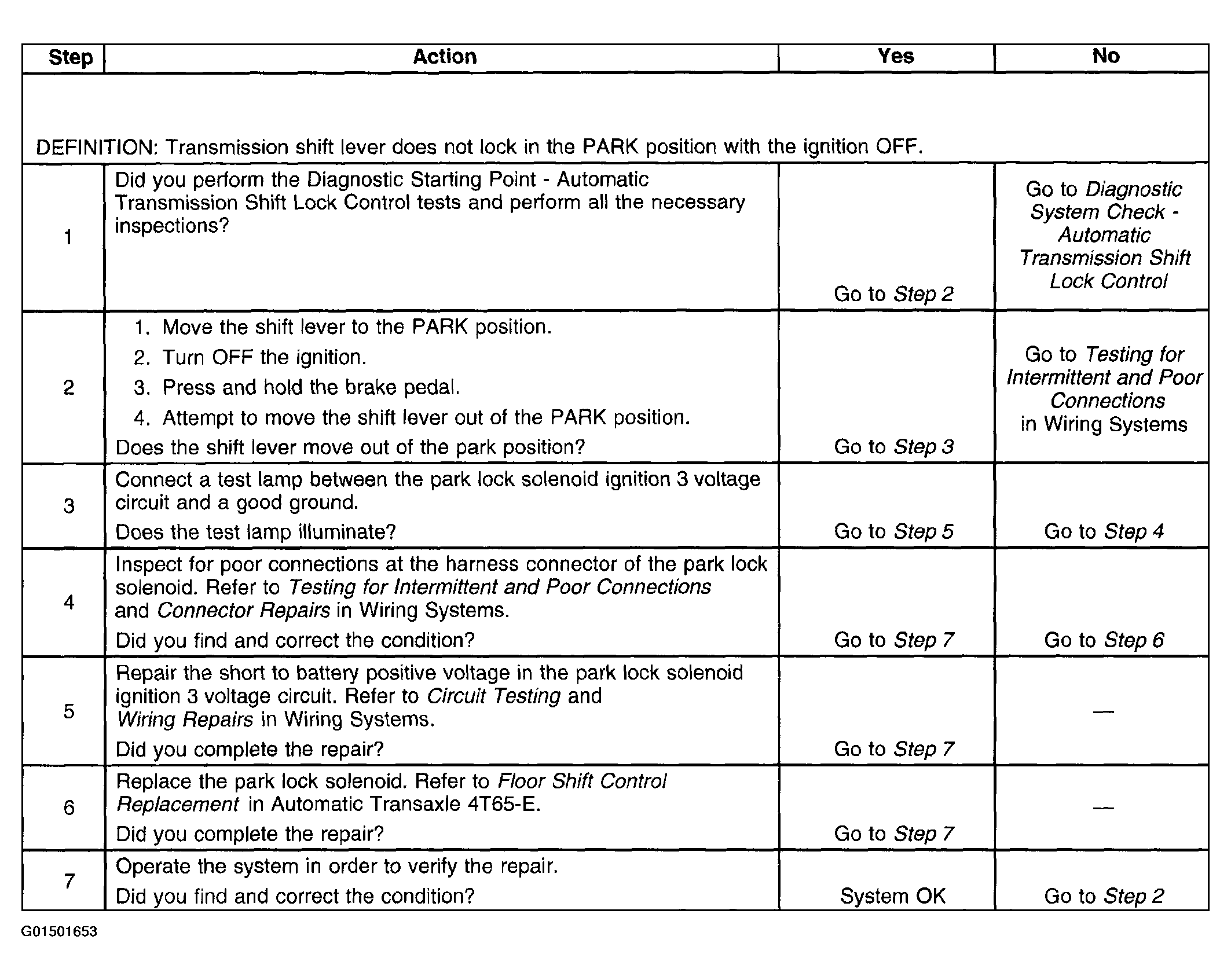

Fig 1: Park Lock Solenoid Inoperative Diagnosis
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
