Installation Procedure

Install the transaxle brace.
Install the transaxle brace bolts.
Tighten

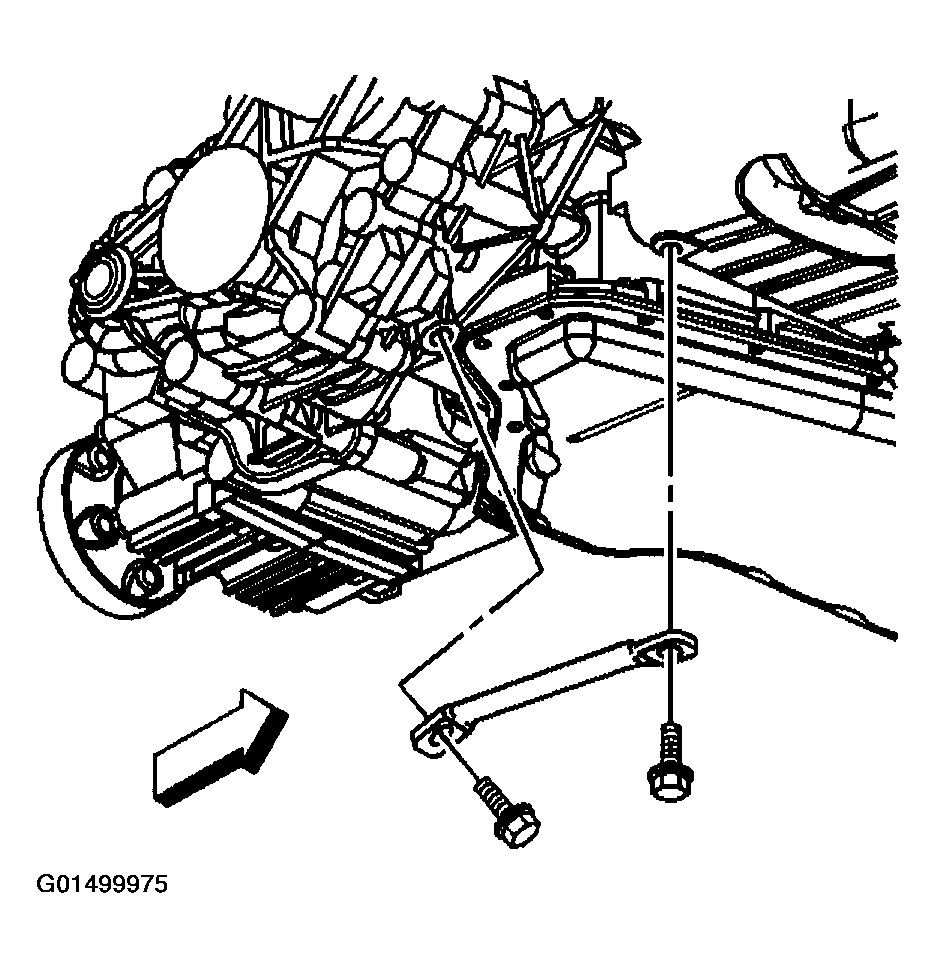

Fig 1: Installing Transaxle Brace Bolts And Brace
Courtesy of GENERAL MOTORS CORP.

Tighten the bolts to 47 N.m (35 lb ft).
Lower the vehicle.

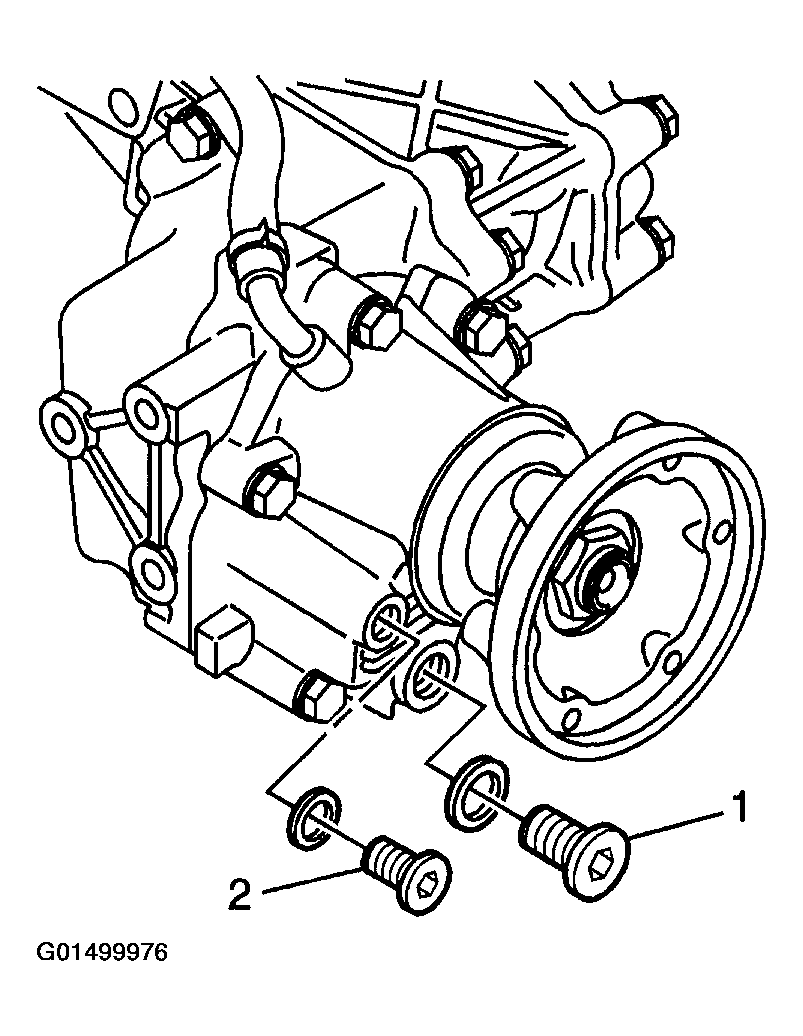

Fig 2: Removing Drain Plug And Oil Seal
Courtesy of GENERAL MOTORS CORP.
