Removal Procedure

  1. Raise and support the vehicle.
  2. Remove the transaxle brace bolts.
  3. Remove the transaxle brace.

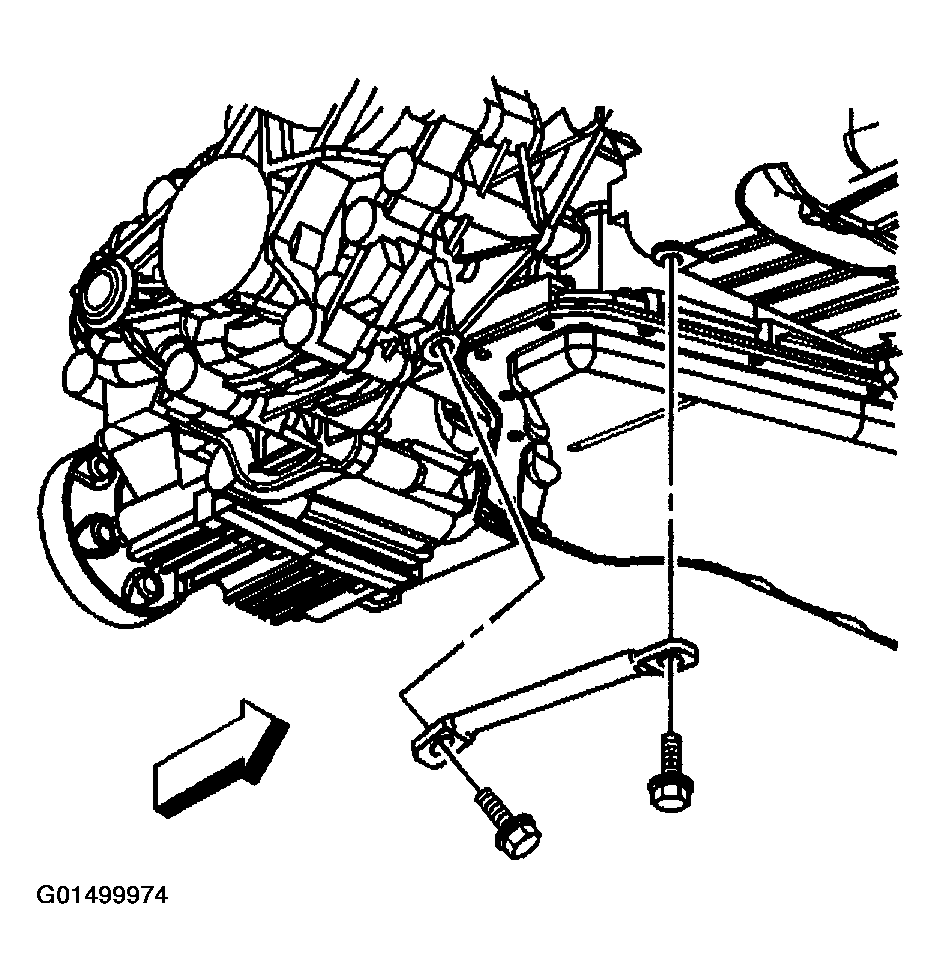

    Fig 1: Removing Transaxle Brace Bolts And Brace
    G01499974Courtesy of GENERAL MOTORS CORP.
