Removal Procedure
- Raise and support the vehicle.

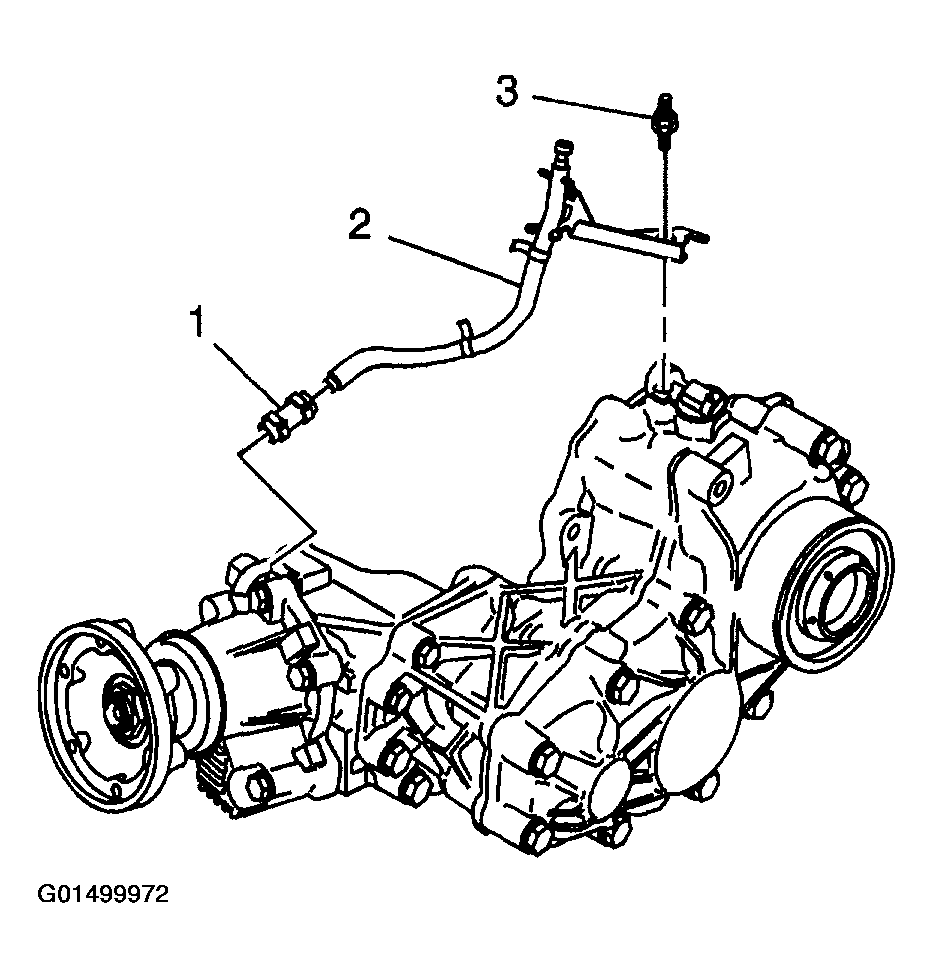

- Release the vent hose clamp (1) from the extension housing assembly.
- Disconnect the vent hose (2) from the retaining bracket on the transfer case assembly.
- Remove the vent hose from the extension housing assembly vent tube by carefully twisting the hose.
