Removal Procedure

  1. Open the overhead compartments in order to access the fasteners.
  2. Remove the screws.
  3. Remove the second seat audio control from the overhead console, if equipped. Refer to AUDIO CONTROL REPLACEMENT -- SECOND SEAT (AZTEK) or AUDIO CONTROL REPLACEMENT -- SECOND SEAT (RENDEZVOUS) .
  4. Remove the overhead console from the vehicle.

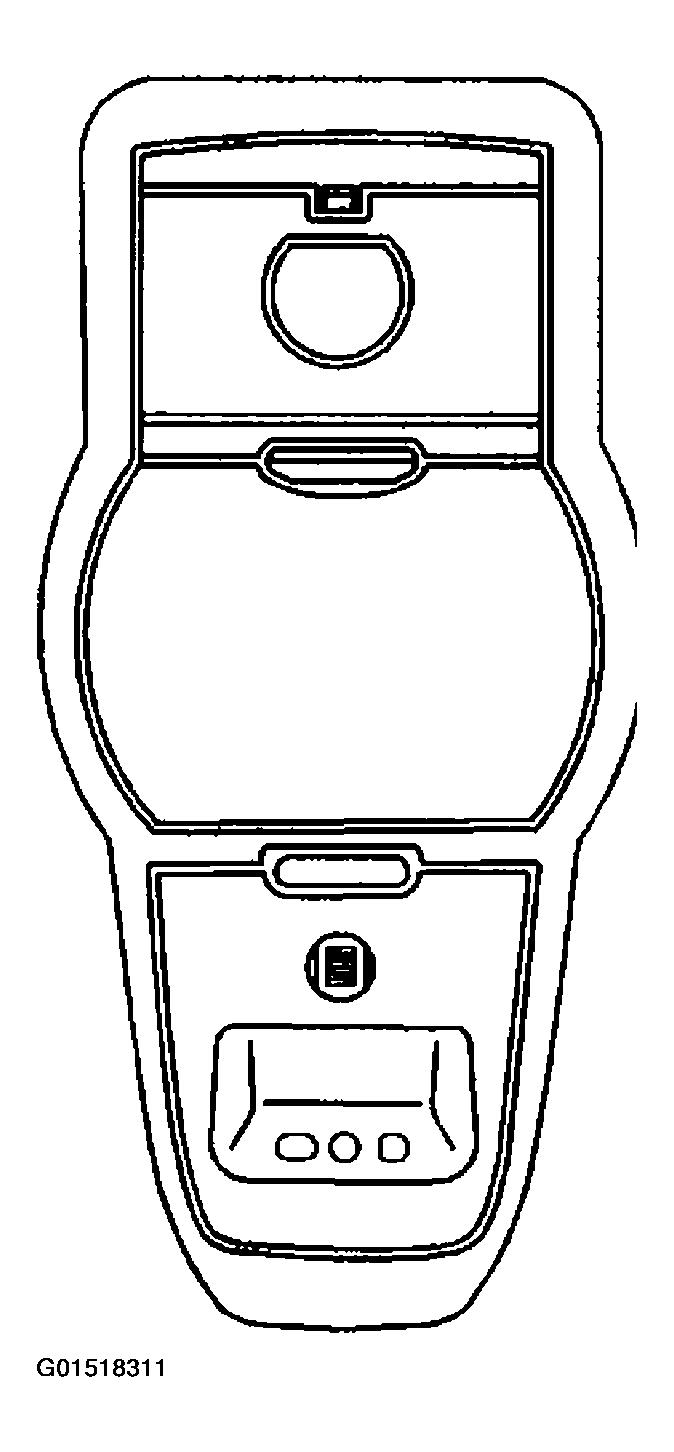

    Fig 1: Removing Procedure Of Console - Overhead (Aztek)
    G01518311Courtesy of GENERAL MOTORS CORP.
