Installation Procedure

  1. Align the center pillar auxiliary weatherstrip top push-in retainers to the top hole in the center pillar.
  2. Install the center pillar auxiliary weatherstrip working downward pressing in the remainder of the push-in retainers until fully seated.

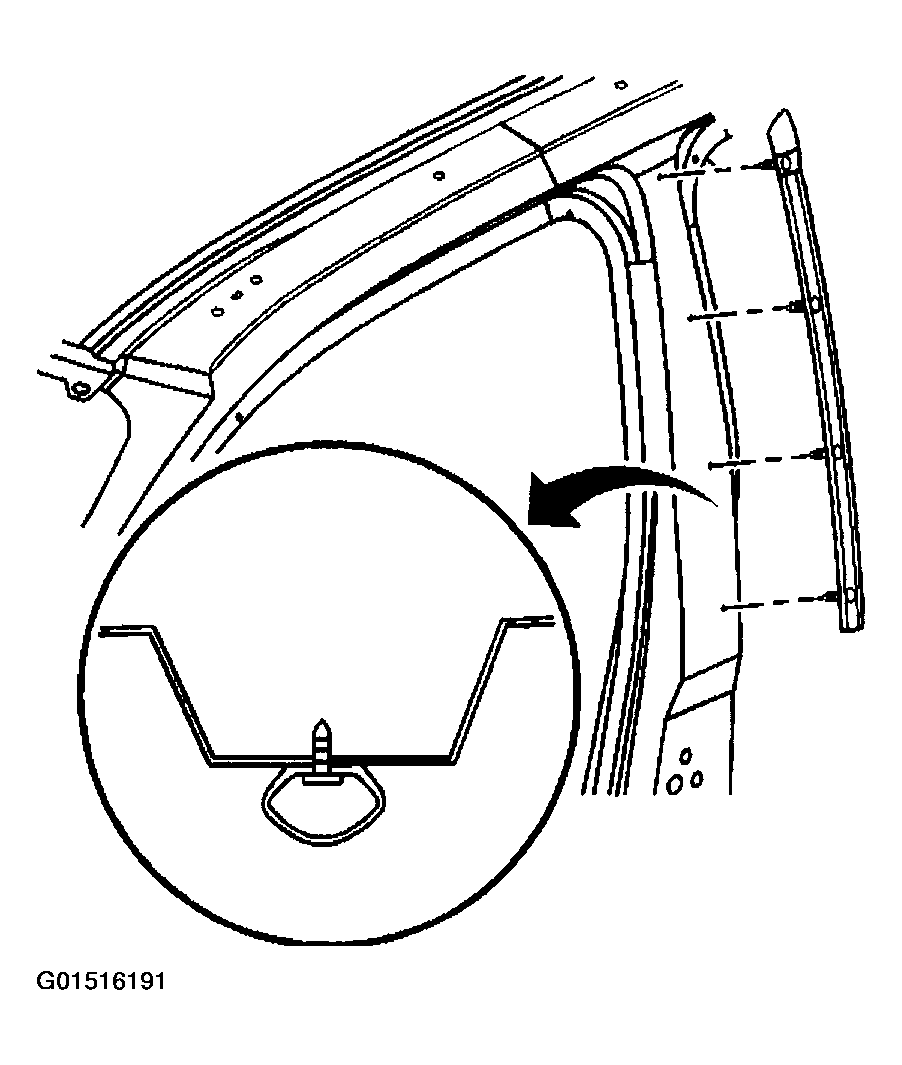

    Fig 1: Installing Center Pillar Auxiliary Weatherstrip
    G01516191Courtesy of GENERAL MOTORS CORP.
