Removal Procedure

  1. Open the front door.
  2. Remove the front door sill plates. Refer to DOOR SILL PLATE REPLACEMENT -- FRONT .
  3. Remove the windshield garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- WINDSHIELD PILLAR .
  4. Remove the upper center pillar trim panel. Refer to TRIM PANEL REPLACEMENT -- UPPER CENTER PILLAR .
  5. Remove the center lower trim panel. Refer to TRIM PANEL REPLACEMENT -- LOWER CENTER PILLAR .
  6. Remove the front door opening weatherstrip by pulling it off the pinchweld flange.

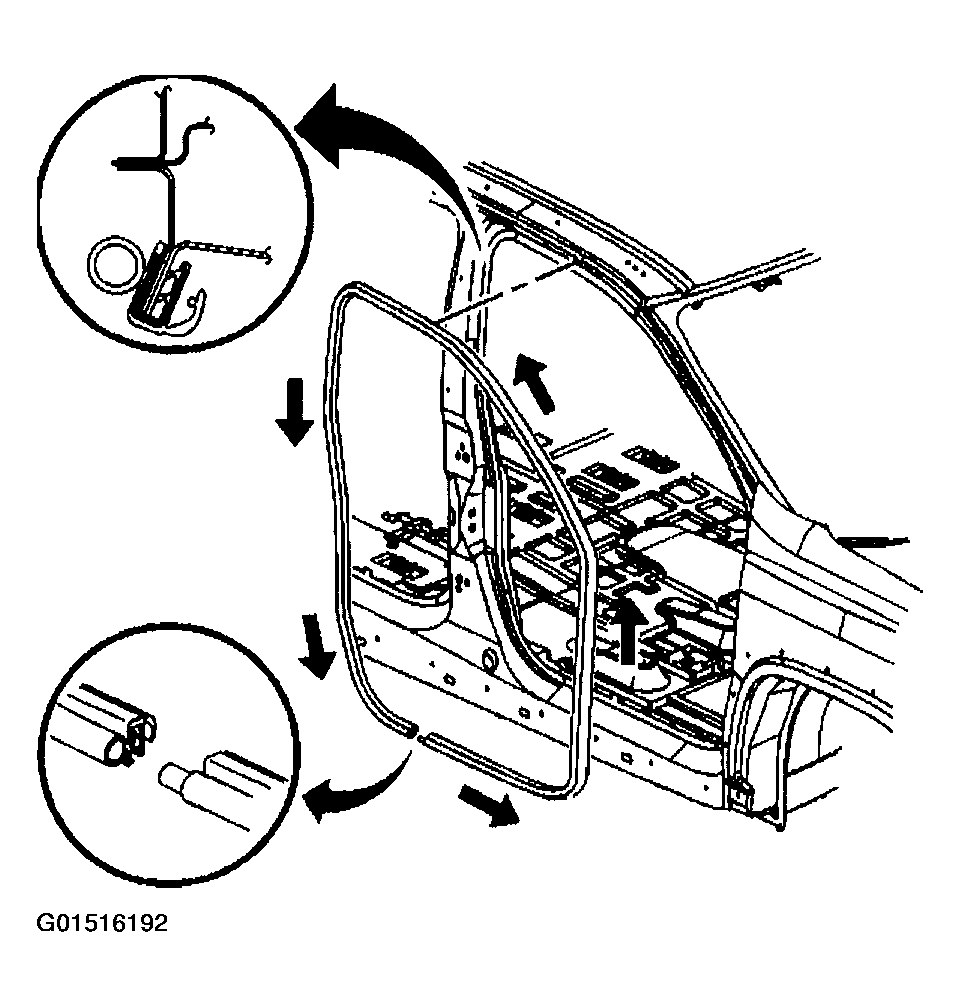

    Fig 1: Removing Front Door Opening Weatherstrip
    G01516192Courtesy of GENERAL MOTORS CORP.
