Driver Door Lock Switch Connector End View
Driver Door Lock Switch Connector End View

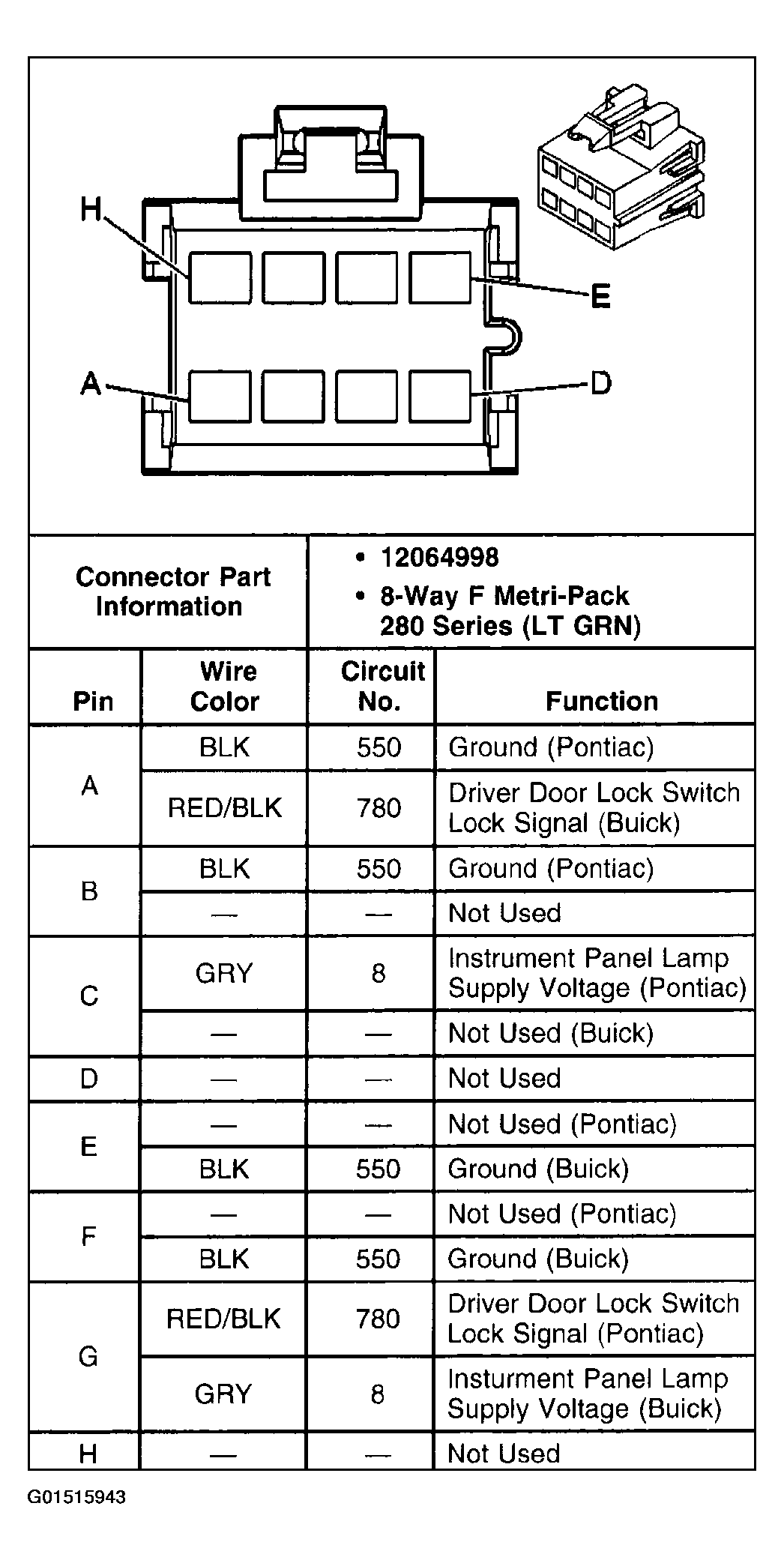

Fig 1: Driver Door Lock Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
