In-Line Connector End View C310

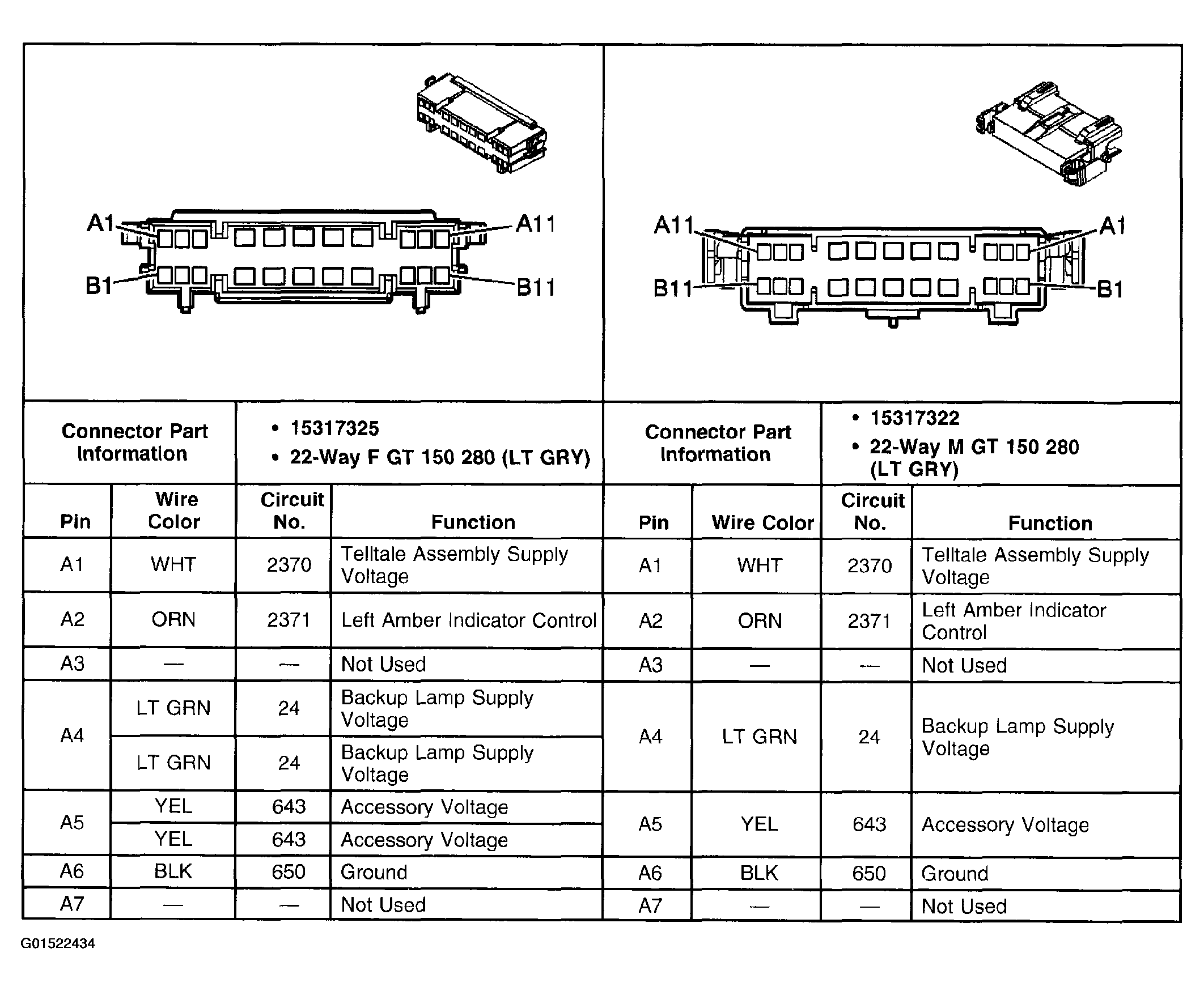

Fig 1: In-Line Connector C310
G01522434Courtesy of GENERAL MOTORS CORP.

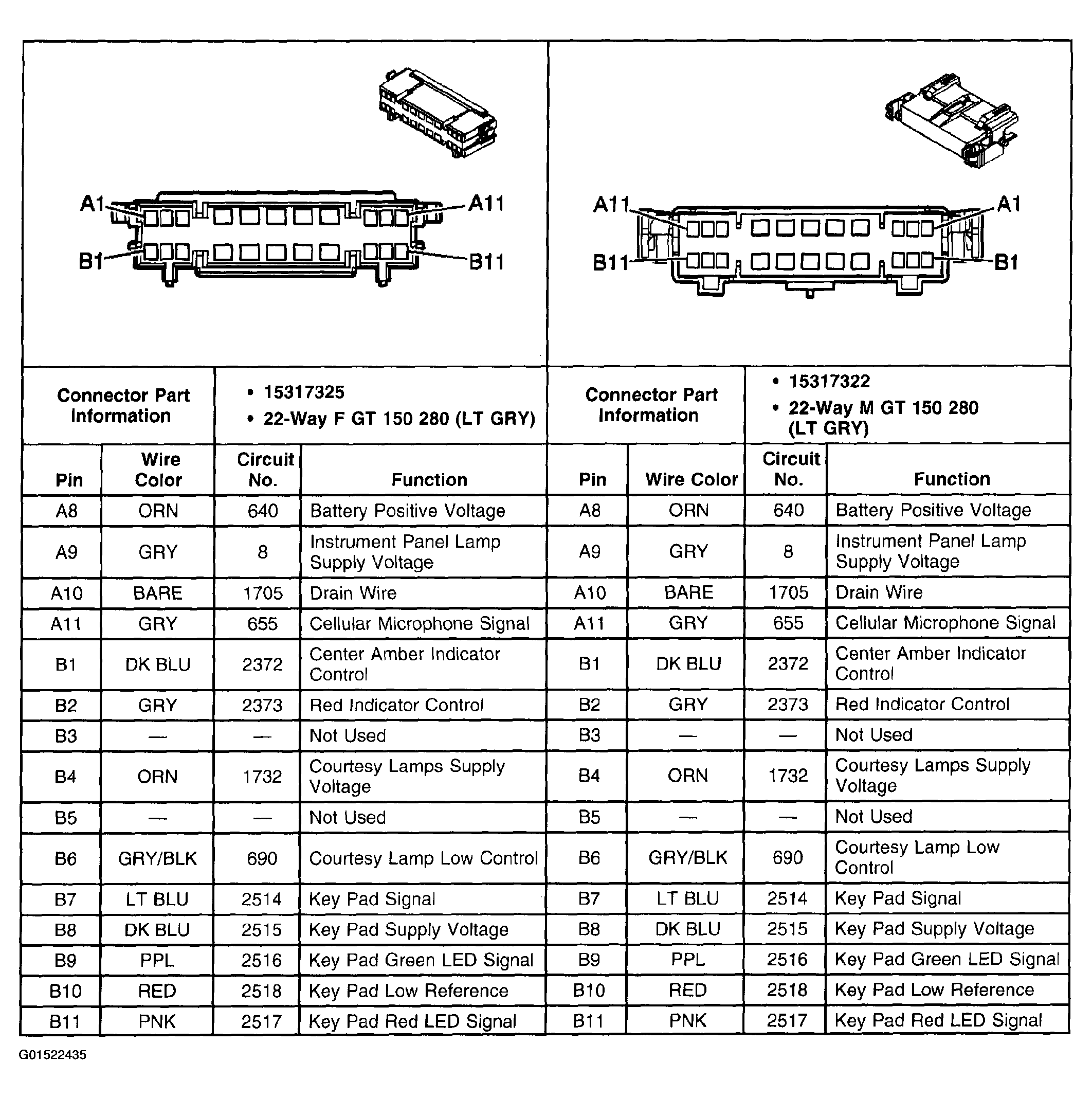

Fig 1: In-Line Connector C310
G01522435Courtesy of GENERAL MOTORS CORP.
