In-Line Connector End View C316

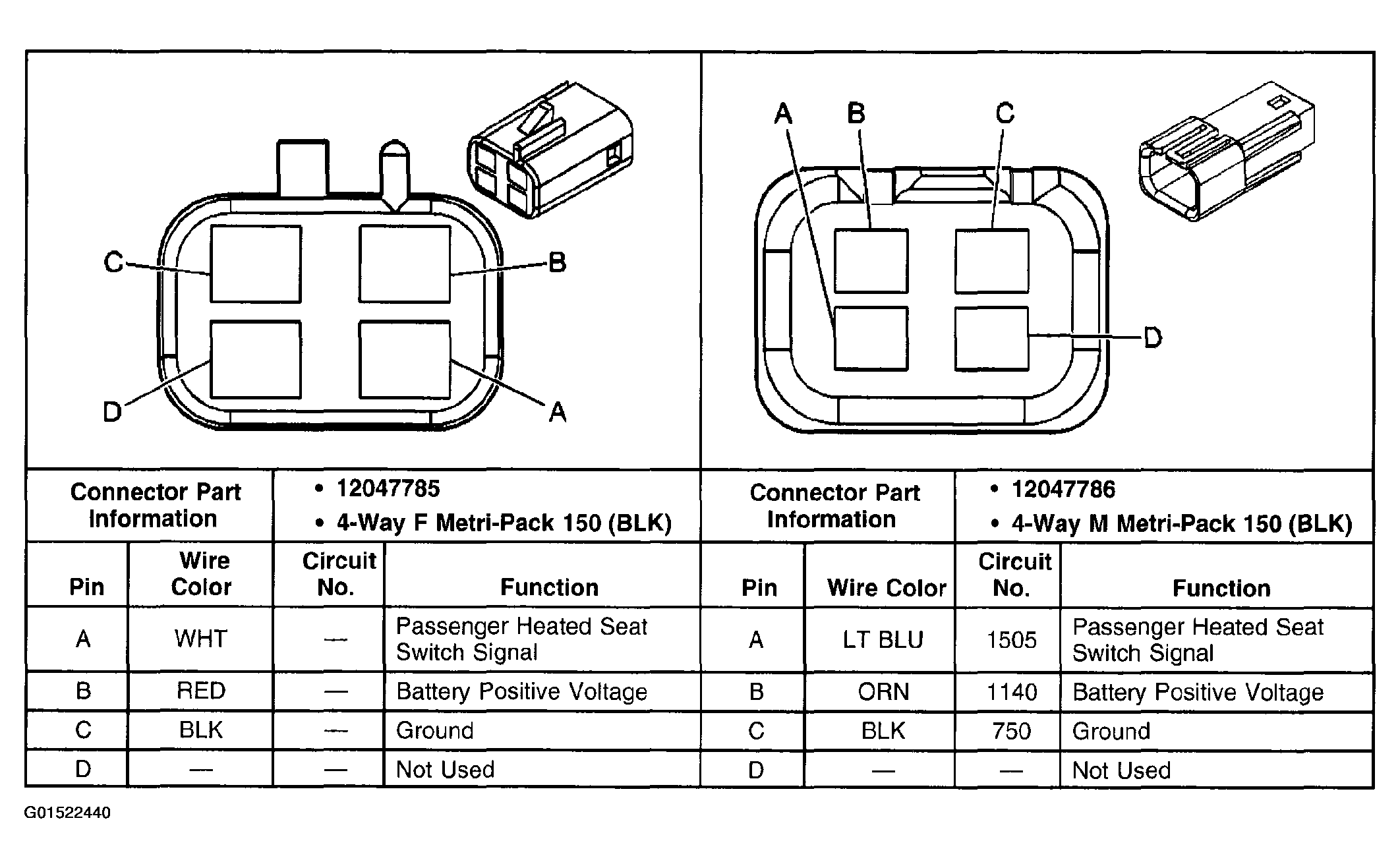

Fig 1: In-Line Connector C316
G01522440Courtesy of GENERAL MOTORS CORP.
