Left Lift Window Latch Connector End View (Pontiac)

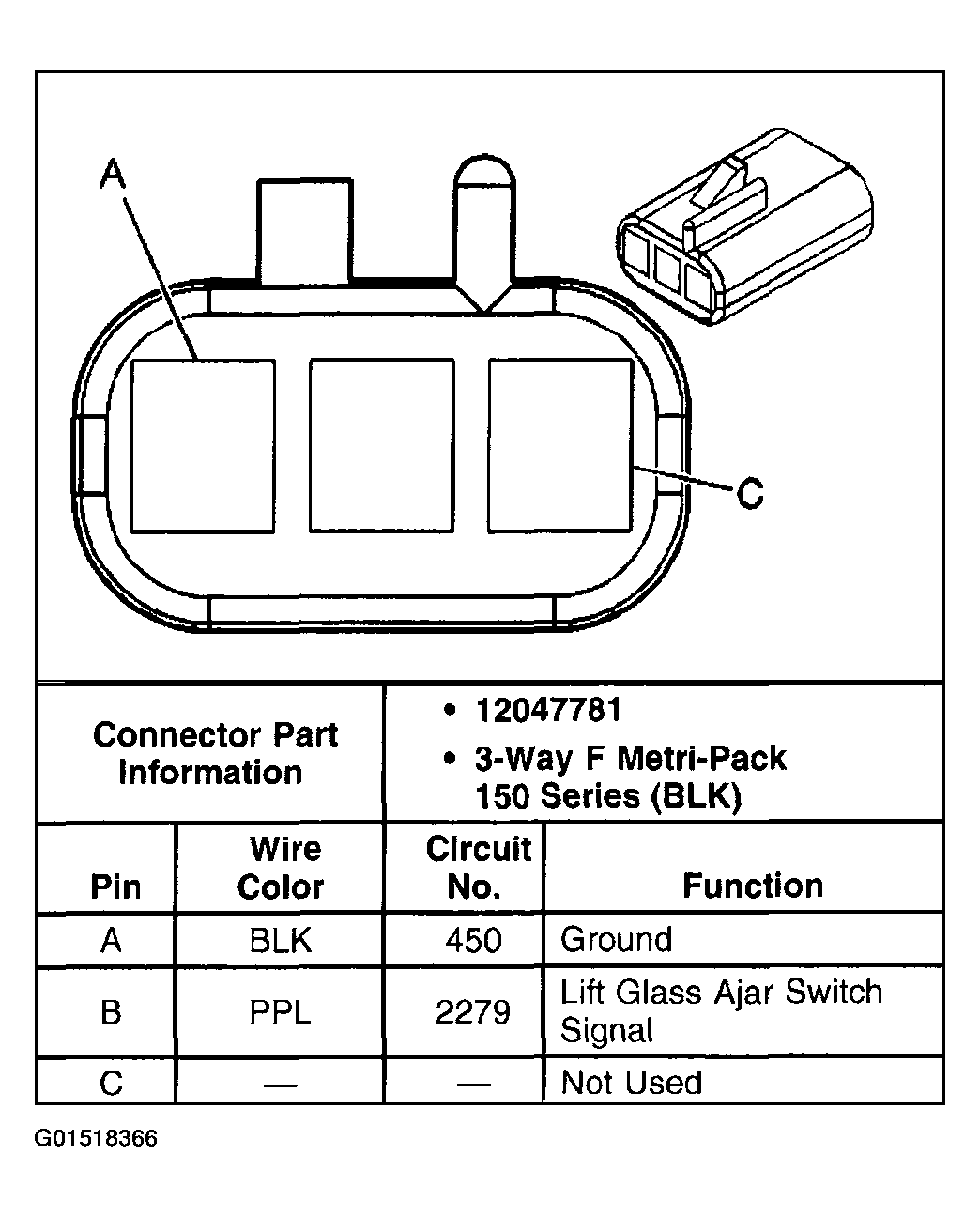

Fig 1: Left Lift Window Latch (Pontiac)
G01518366Courtesy of GENERAL MOTORS CORP.
