Engine Electrical Component Views

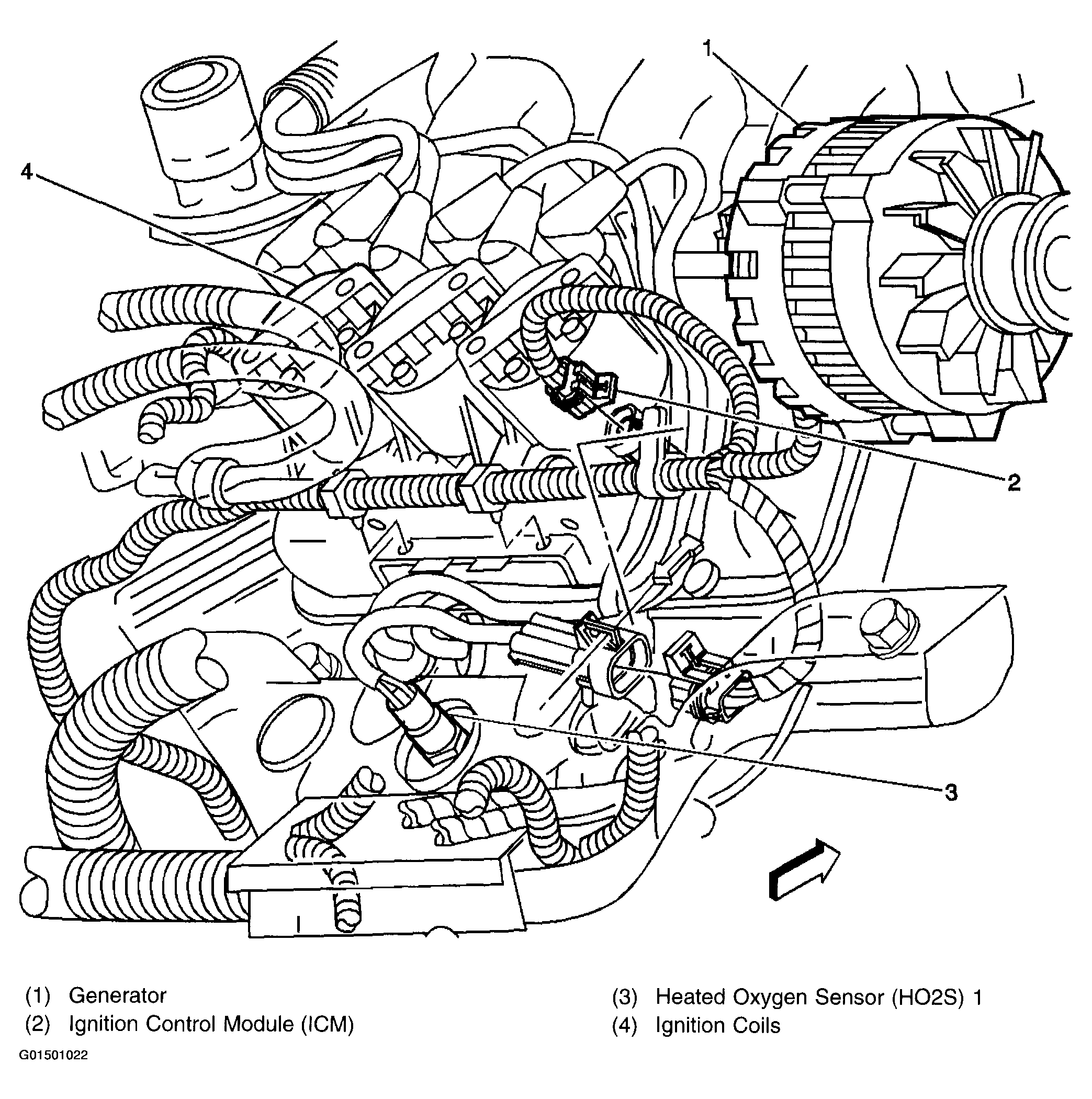

Fig 1: Locating Electrical Components - LH Side Of Engine (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

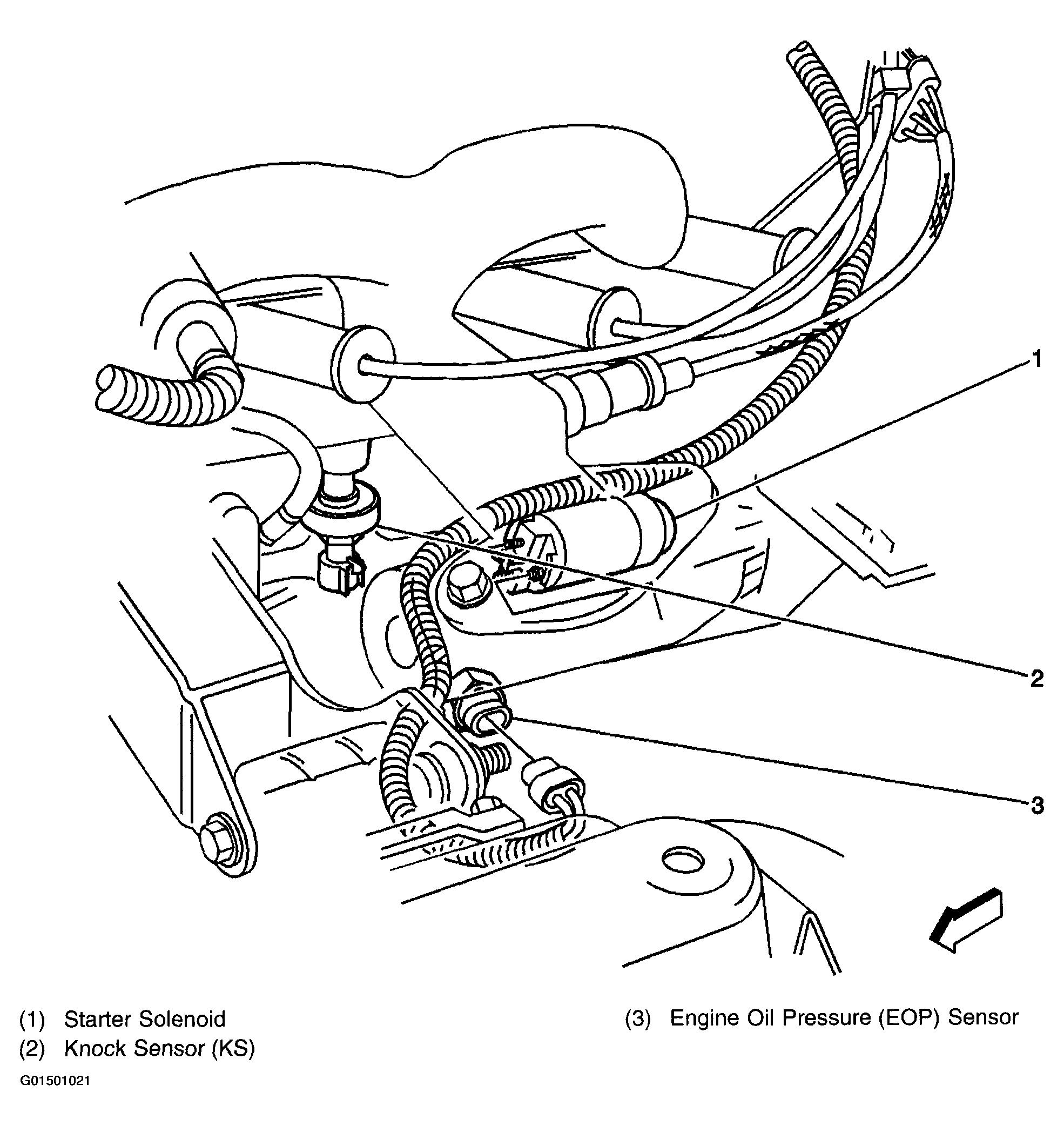

Fig 2: Locating Electrical Components - LH Side Of Engine (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
