Installation Procedure

  1. Install the battery tray.
  2. Install the battery tray bolts.

    Tighten

    Tighten the battery tray bolts to 10 N.m (89 lb in).

  3. Install the battery. Refer to BATTERY REPLACEMENT  .

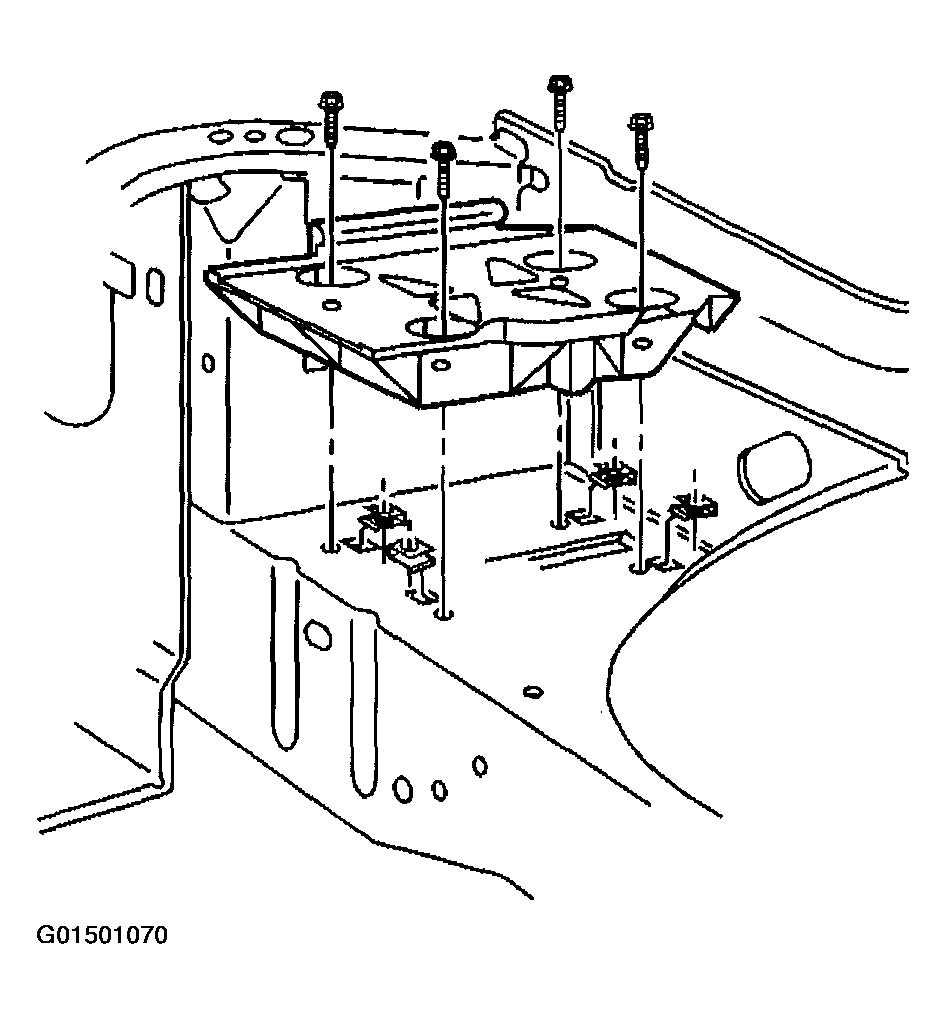

    Fig 1: Installing Battery Tray Bolts And Tray
    G01501070Courtesy of GENERAL MOTORS CORP.
