Installation Procedure

Install the heat shield to the vehicle with new rivets.

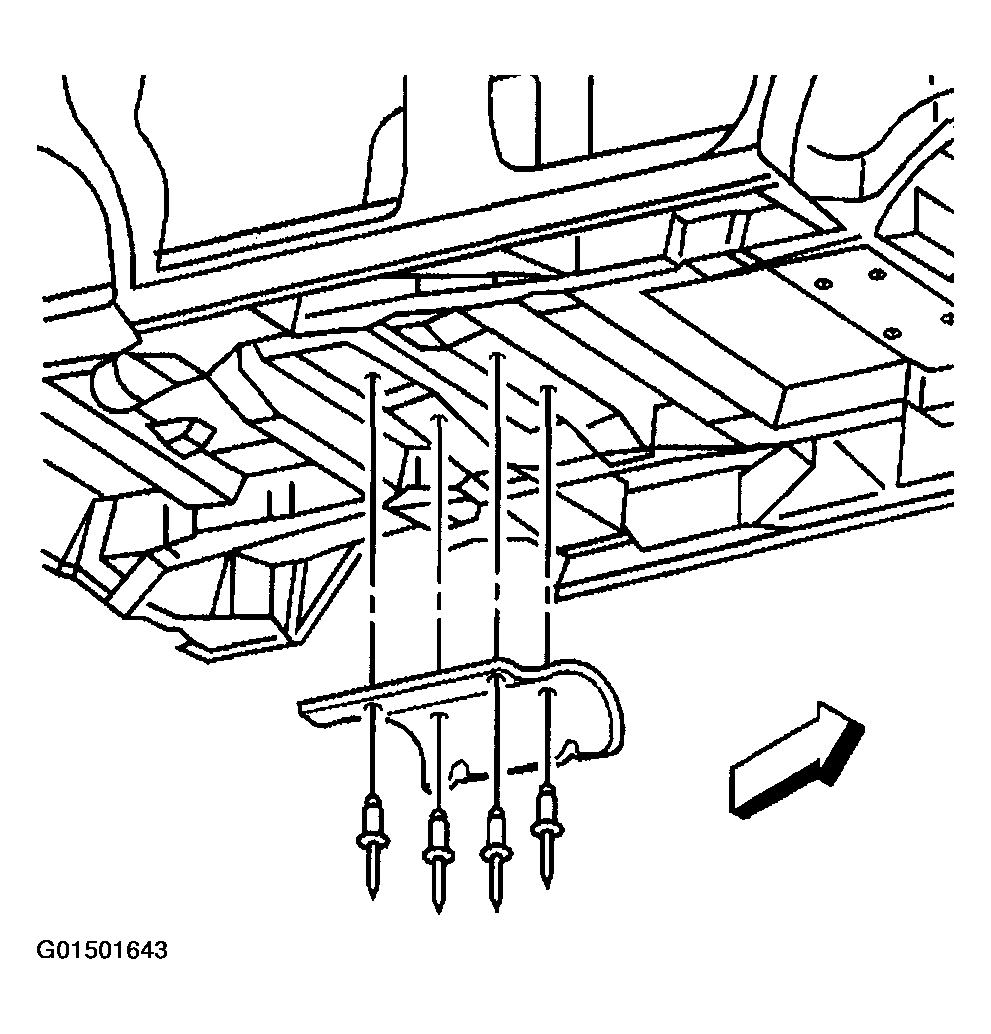

Fig 1: Installing Heat Shield To Vehicle
Courtesy of GENERAL MOTORS CORP.
Connect the muffler to the catalytic converter. Refer to MUFFLER REPLACEMENT .
Lower the vehicle.

Fig 2: Connecting Muffler To Catalytic Converter
Courtesy of GENERAL MOTORS CORP.
