Power Roof Systems Connector End Views

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Sunroof Limit Switch Assembly Connector End View

G01755955

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Sunroof Module (Express Open), C1 Connector End View

G01755956

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Sunroof Module (Express Open), C2 Connector End View

G01755957

Courtesy of GENERAL MOTORS CORP.

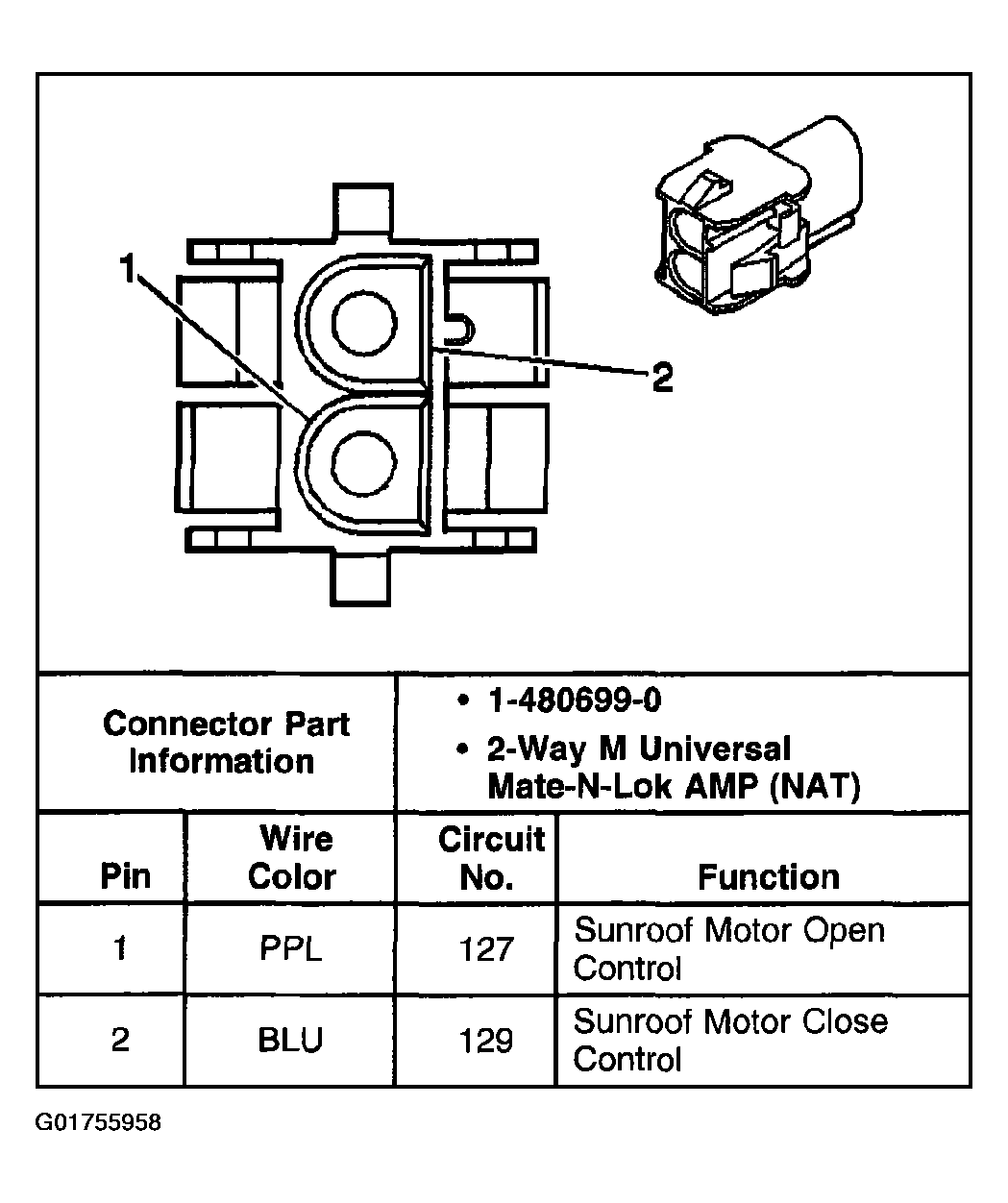

Fig 4: Identifying Sunroof Motor Connector End View

G01755958

Courtesy of GENERAL MOTORS CORP.

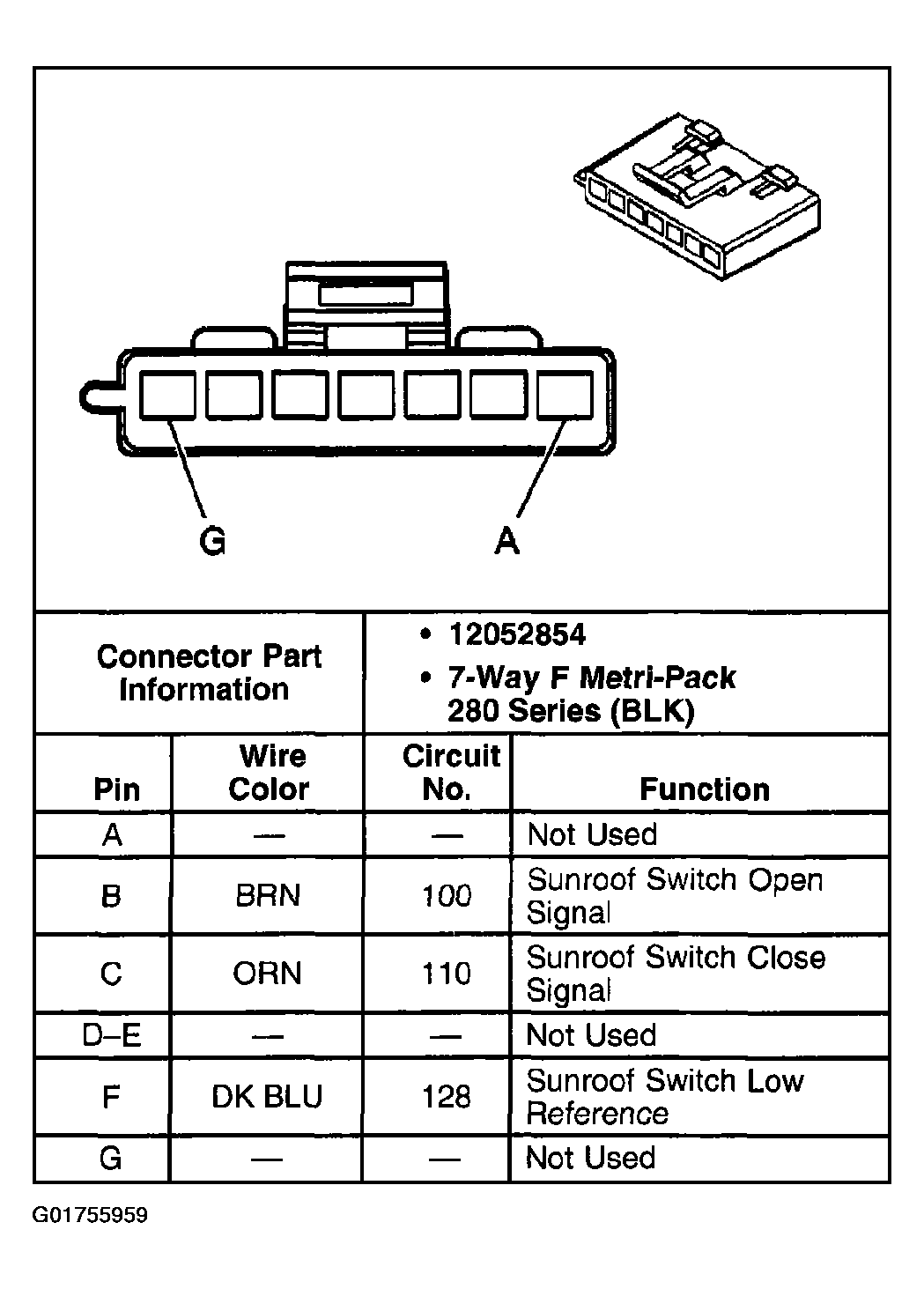

Fig 5: Identifying Sunroof Switch Connector End View

G01755959

Courtesy of GENERAL MOTORS CORP.
