Power Seat Systems Component Views

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

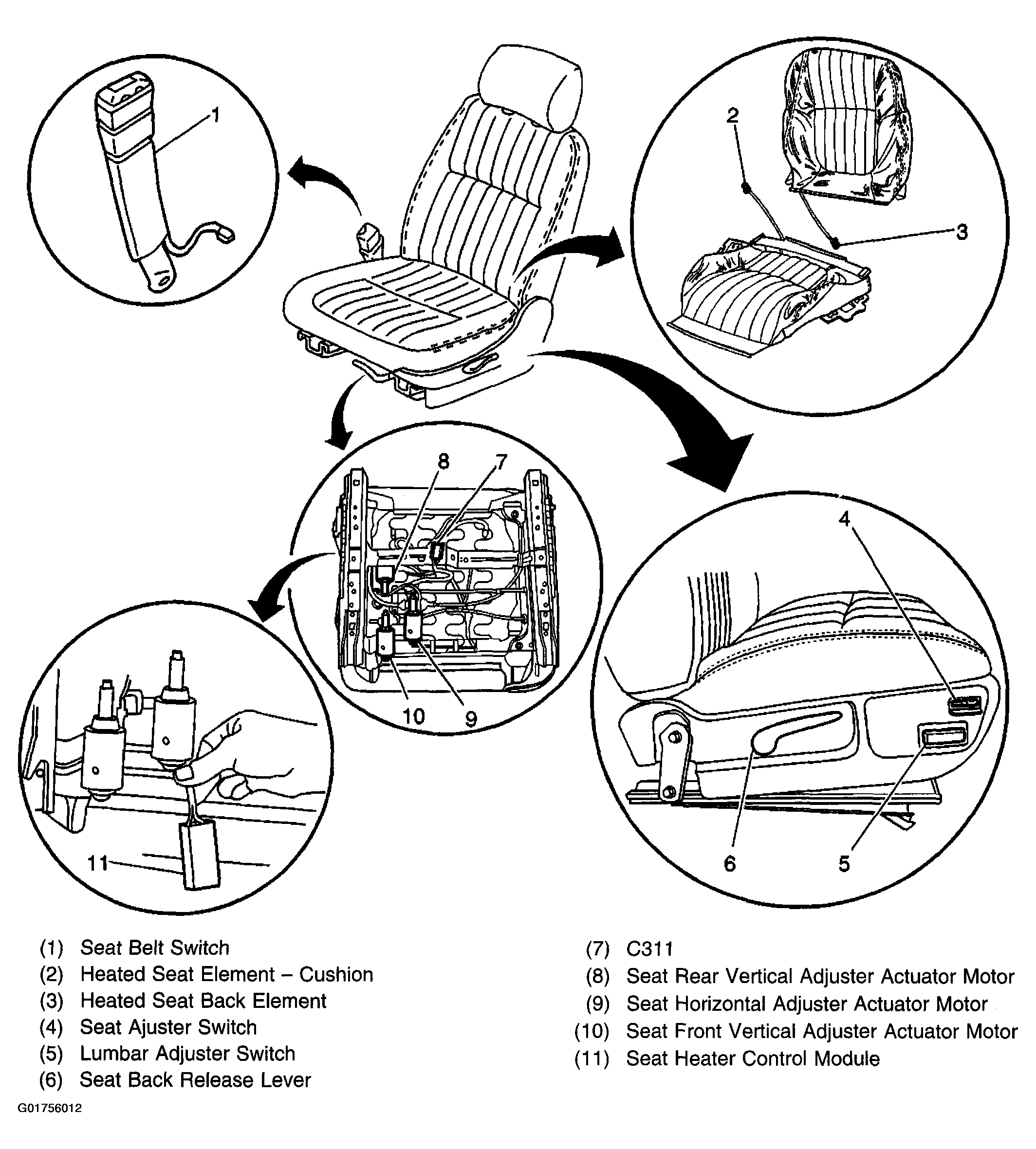

Fig 1: Identifying Power Seat Component Views

Courtesy of GENERAL MOTORS CORP.
