Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front bumper impact bar bracket to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the fasteners to secure the front of the front bumper impact bar bracket.

    Tighten

    Tighten the fasteners to 50 N.m (37 ft lbs).

  3. Install the fastener to secure the rear of the front bumper impact bar bracket.

    Tighten

    Tighten the fastener to 50 N.m (37 ft lbs).

  4. Install the front impact bar. Refer to IMPACT BAR REPLACEMENT - Front Bumper . .
  5. Install the front bumper fascia. Refer to FASCIA REPLACEMENT - Front Bumper . .

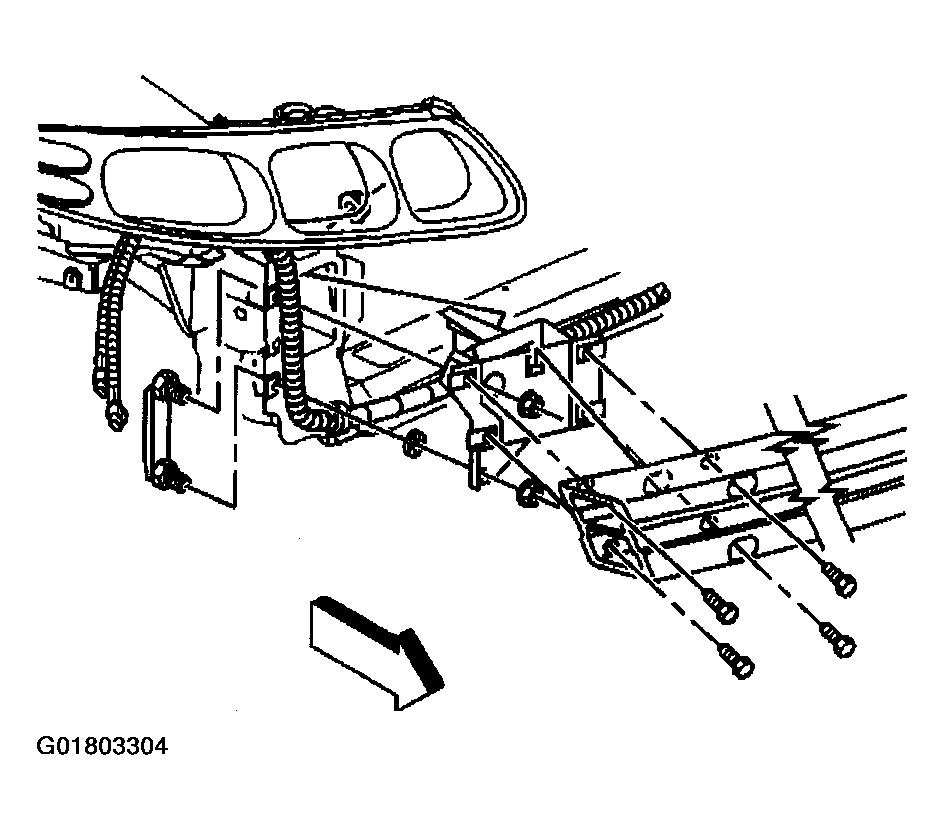

    Fig 1: Installing Front Bumper Bracket
    G01803304Courtesy of GENERAL MOTORS CORP.
