Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bolts (2) retaining the front fender extension (3) to the body.
Remove the push pin retaining the front fender extension (3) to the rocker panel.
Remove the front fender extension (3) from the body.

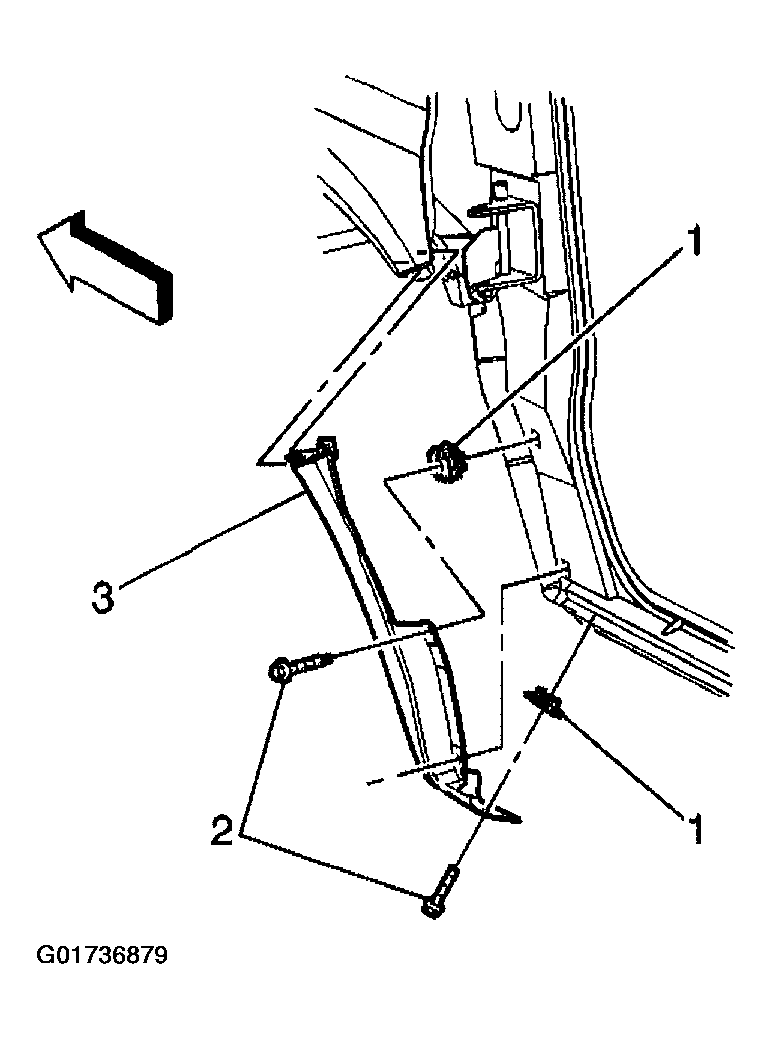

Fig 1: Removing Front Fender Extension
Courtesy of GENERAL MOTORS CORP.
