Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the cable (1) to the vehicle.

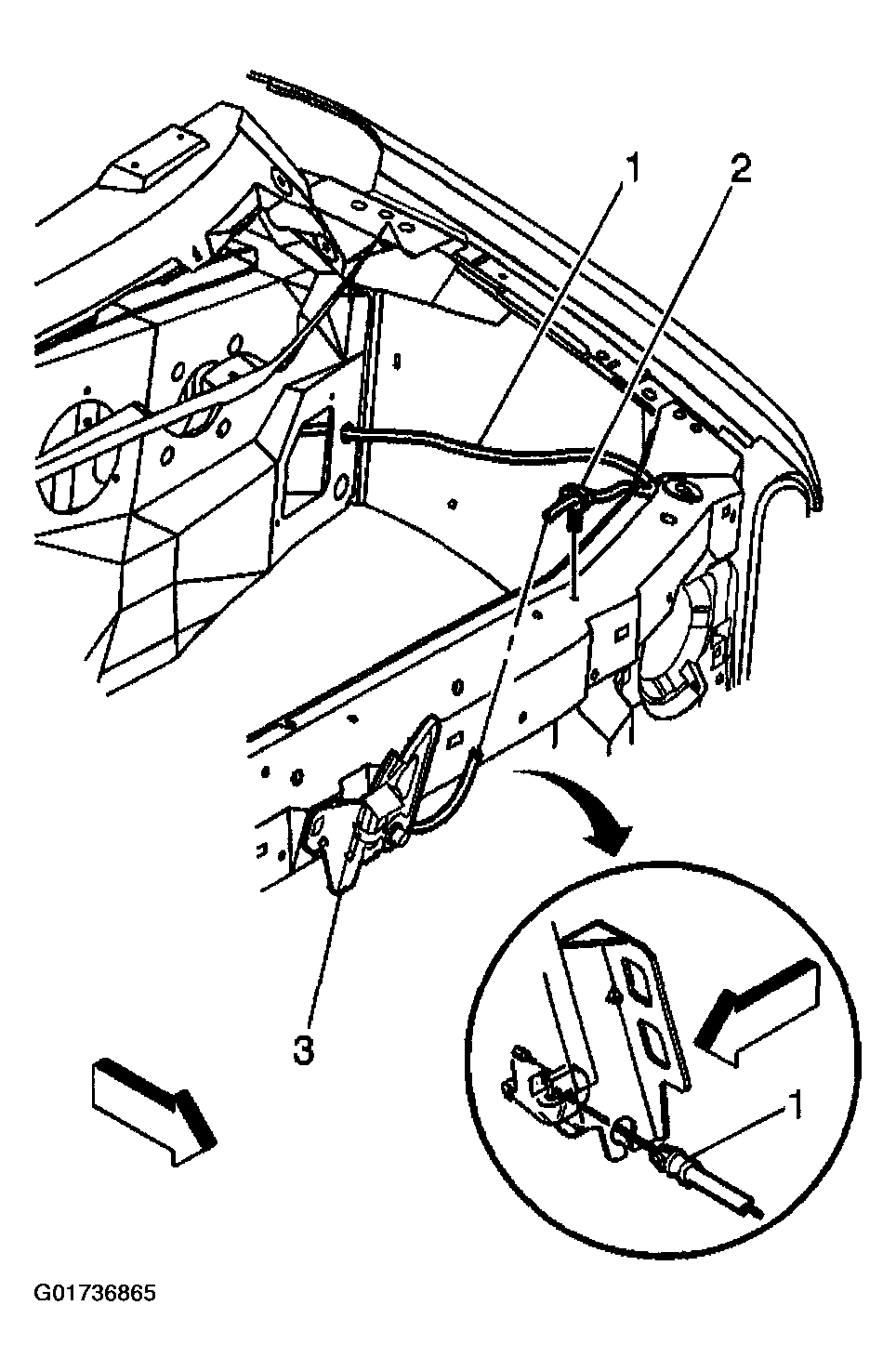

    Fig 1: Installing Cable
    G01736865Courtesy of GENERAL MOTORS CORP.
  2. Route the cable (1) from the cabin into the engine compartment.
  3. Install the cable grommet into the front of dash.
  4. Install the cable handle (3) to the hinge pillar.
  5. Install the screws to the hood release handle (3) to the pillar.
  6. Install the left side hinge pillar trim panel to the body. Refer to TRIM REPLACEMENT - HINGE PILLAR .
  7. Install the cable (1) to the retainer on the radiator support.
  8. Install the cable (1) to the hood latch.
  9. Close the hood.
  10. Inspect the hood release cable for proper operation.

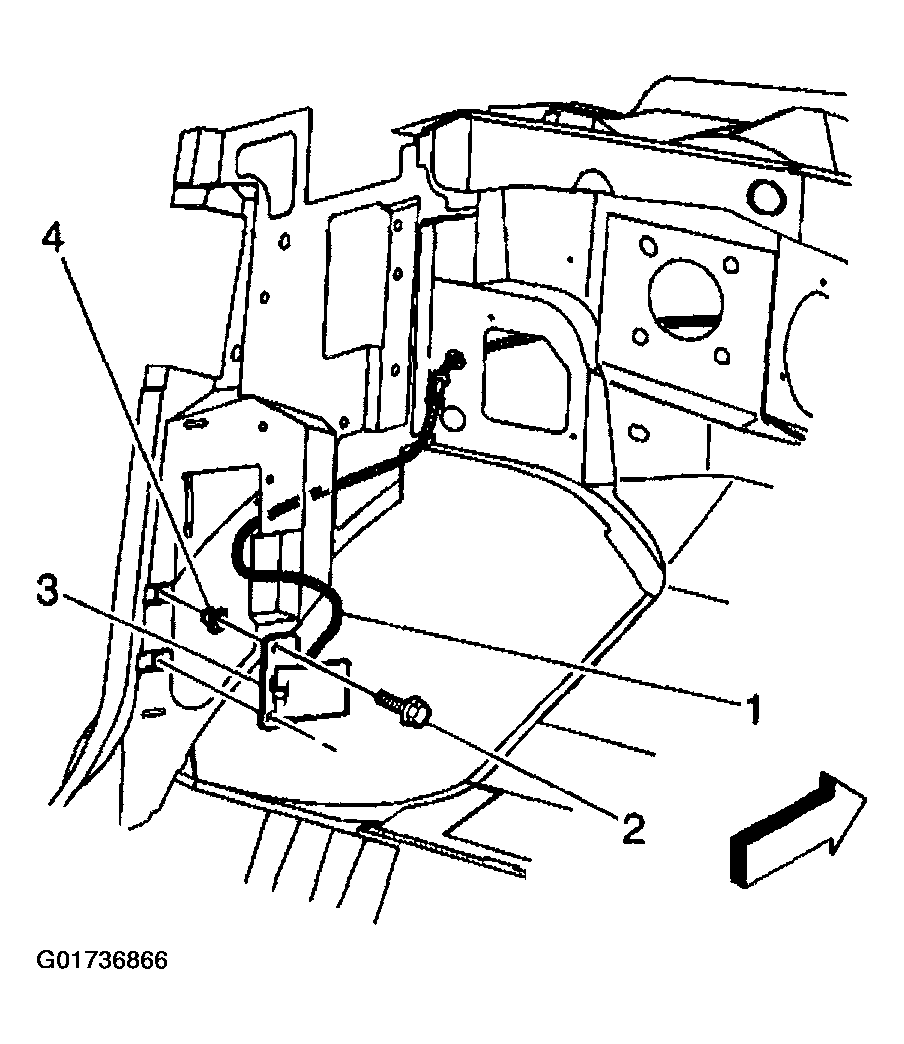

    Fig 2: Installing Cable Handle
    G01736866Courtesy of GENERAL MOTORS CORP.
