Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the circuit board and terminal module.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the cover and three screws.
Tighten

Tighten the screws to 2.6 N.m (23 lb in).
Install the wiper motor electrical connector.

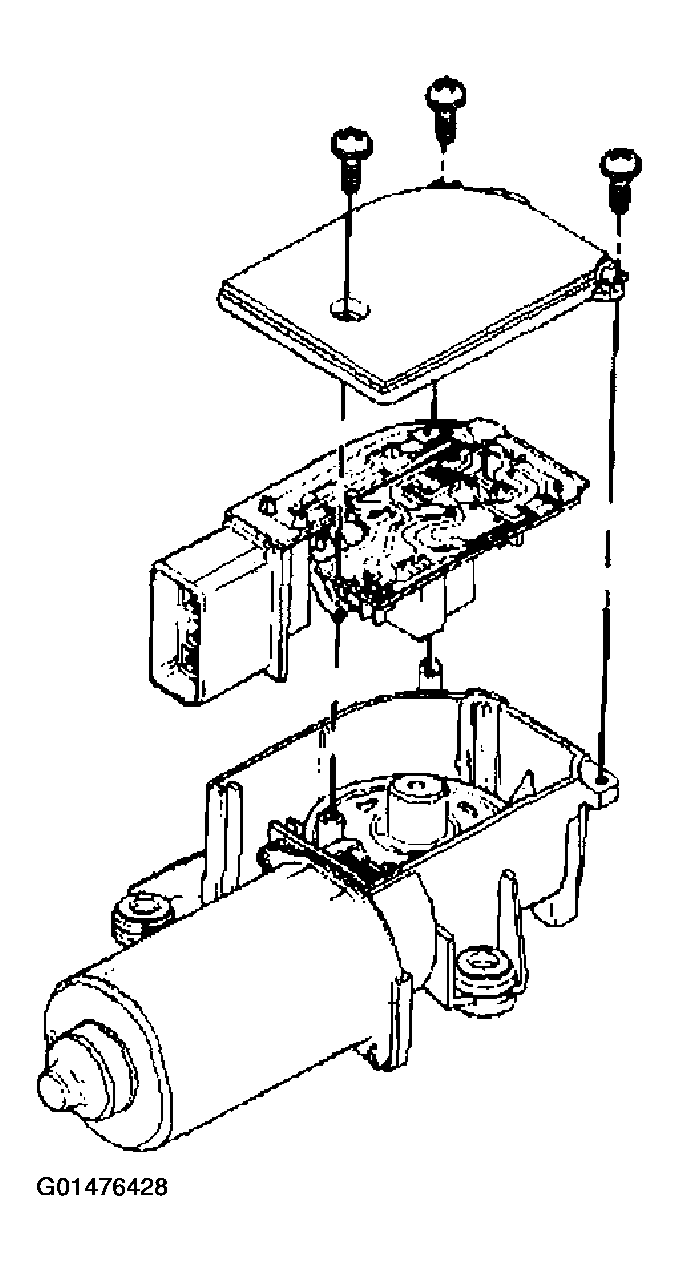

Fig 1: Circuit Board & Terminal Module
Courtesy of GENERAL MOTORS CORP.
