Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Locating Mode Actuator Mounting Screws
    GM651491Courtesy of GENERAL MOTORS CORP.
  1. Install the mode actuator.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the mode actuator mounting screws.

    Tighten:  Tighten the screws to 1.6 N.m (14 lb in).

  3. Connect the I/P wiring harness clip to the I/P support bracket.
    4. IMPORTANT: Align the counted number of threads on the mode actuator push rod (2) with the tip of the retainer clip (1).

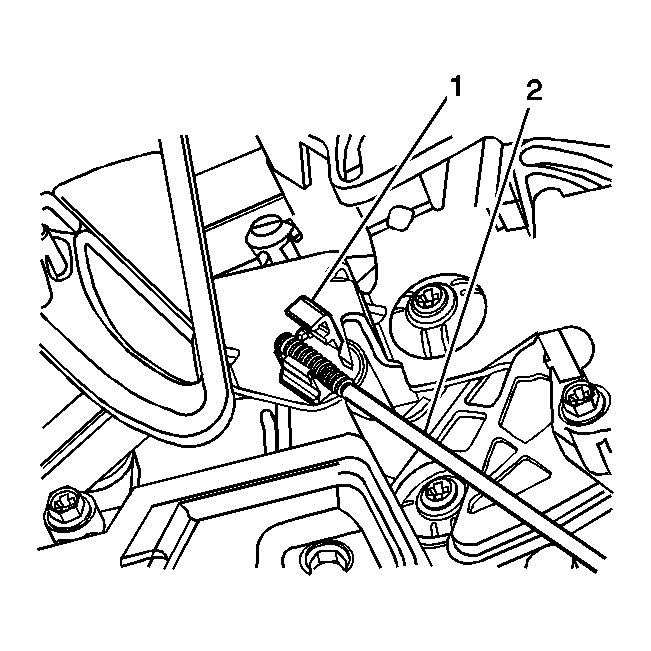

    Fig 2: Identifying Mode Actuator Push Rod Retainer Clip
    GM828359Courtesy of GENERAL MOTORS CORP.
  4. Connect the mode actuator push rod (2) to the retainer clip (1).
  5. Close the push rod retainer clip (1).
  6. Connect the mode actuator electrical connector.
  7. Install the knee bolster. Refer to Knee Bolster Replacement in Instrument Panel, Gages and Console.
