Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster (IPC) trim plate from the instrument panel (IP). Refer to TRIM PANEL REPLACEMENT -- IP CLUSTER .
  2. Disconnect the electrical connector from the fog lamp switch.
  3. Using a small flat-bladed tool, carefully release the retaining tabs on the IPC trim plate.
  4. Remove the fog lamp switch from the IPC trim plate.

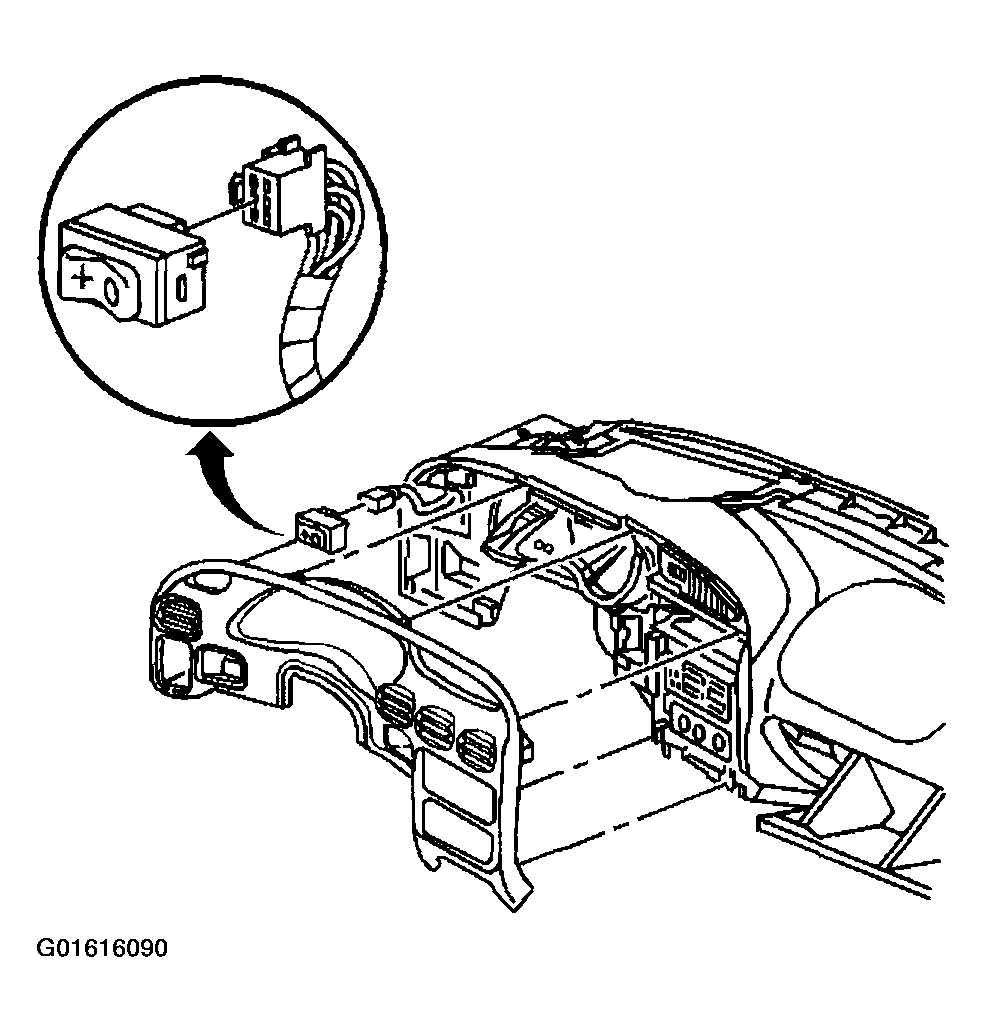

    Fig 1: Fog Lamp Switch
    G01616090Courtesy of GENERAL MOTORS CORP.
