Installation Procedure
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

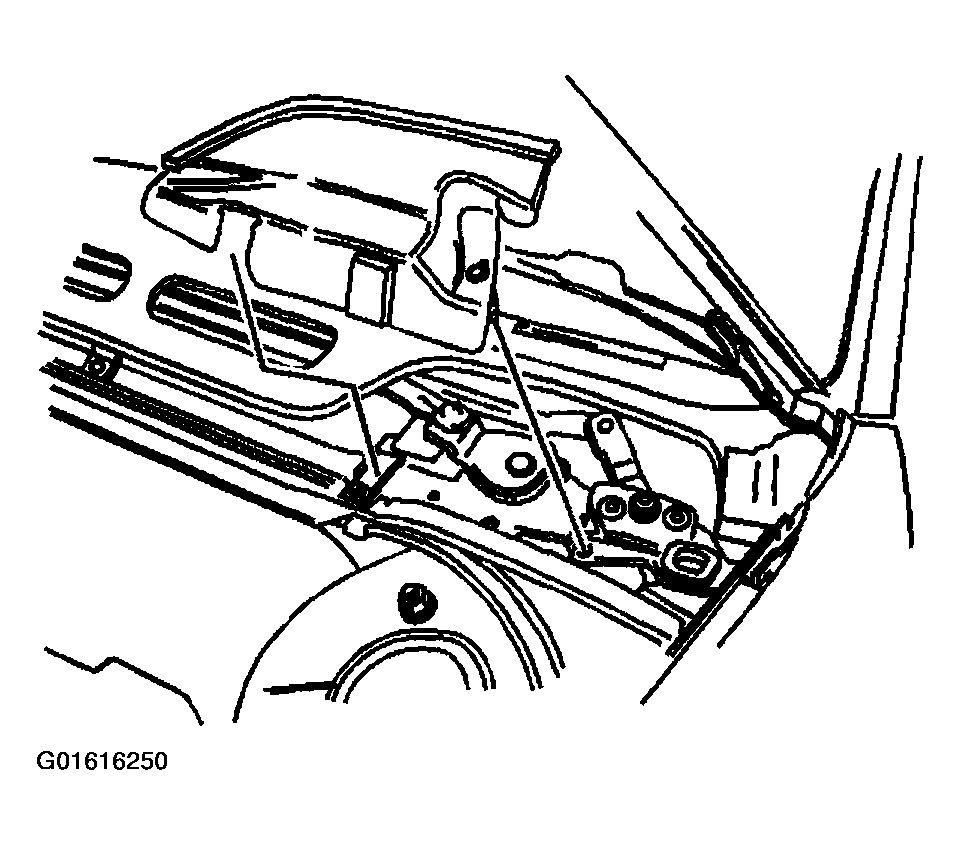

- Position the wiper motor water deflector to the wiper drive system module.
- Install the wiper motor water deflector push-in retainer.
- Install the air inlet grille Panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
