Auto Level Control (ALC) Air Compressor Connector End View
Auto Level Control (ALC) Air Compressor Connector End View

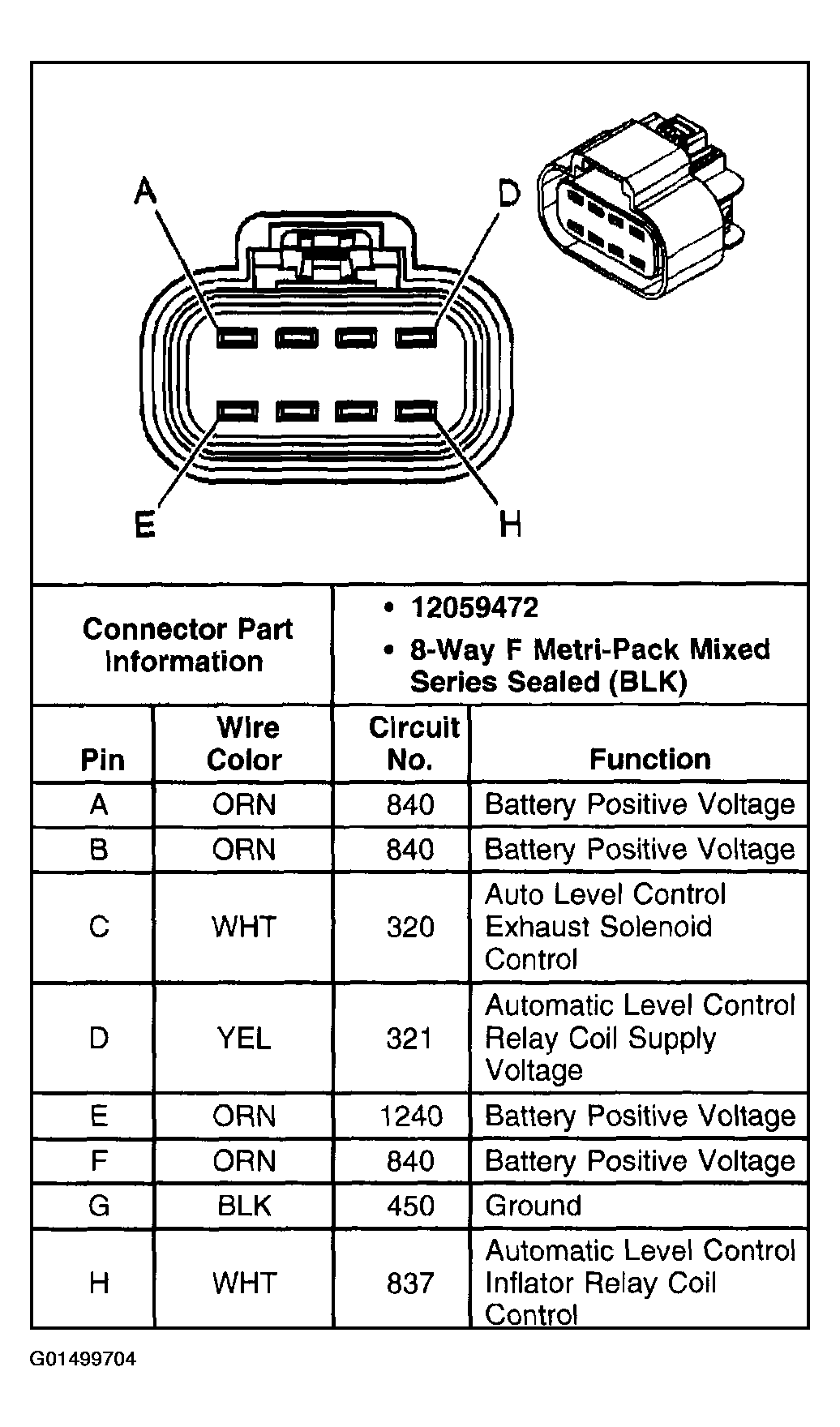

Fig 1: Auto Level Control (ALC) Air Compressor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
