Driver Window Motor Connector End View
Driver Window Motor Connector End View

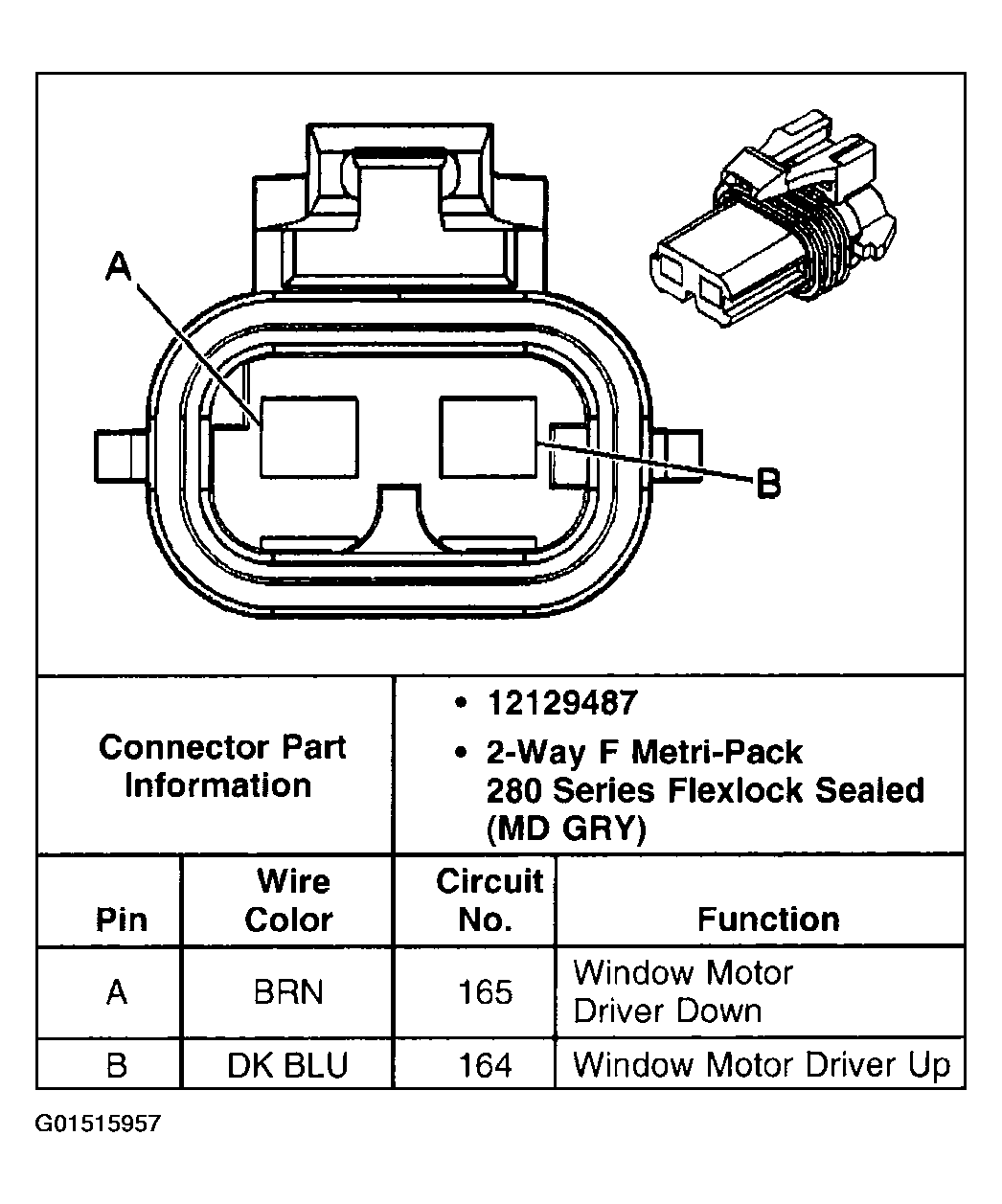

Fig 1: Driver Window Motor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
