In-Line Connector End View C313

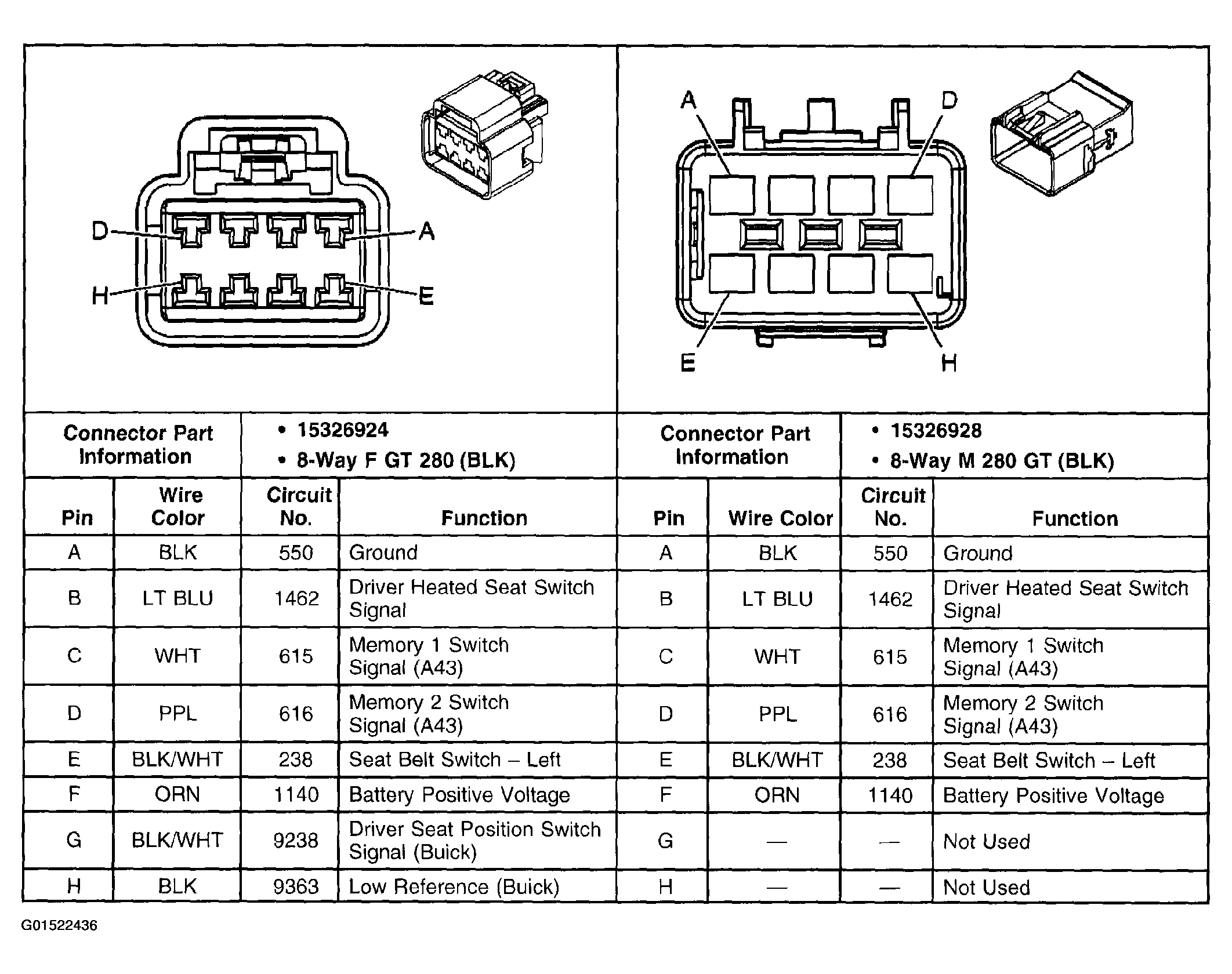

Fig 1: In-Line Connector C313
G01522436Courtesy of GENERAL MOTORS CORP.
