In-Line Connector End View C320

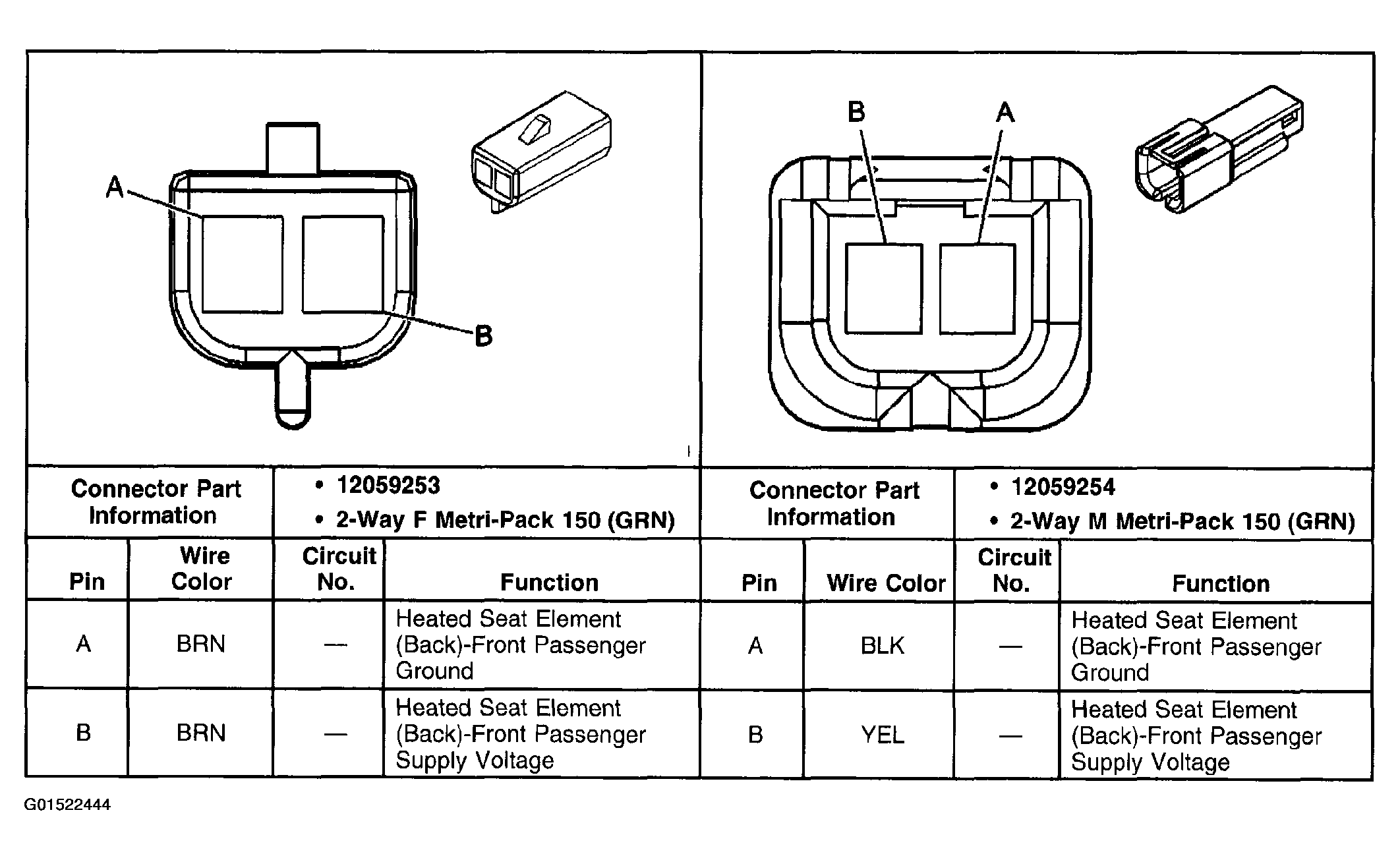

Fig 1: In-Line Connector C320
G01522444Courtesy of GENERAL MOTORS CORP.
