Installation Procedure

Install the rear seat belt center retractor to the rear roof rail panel.

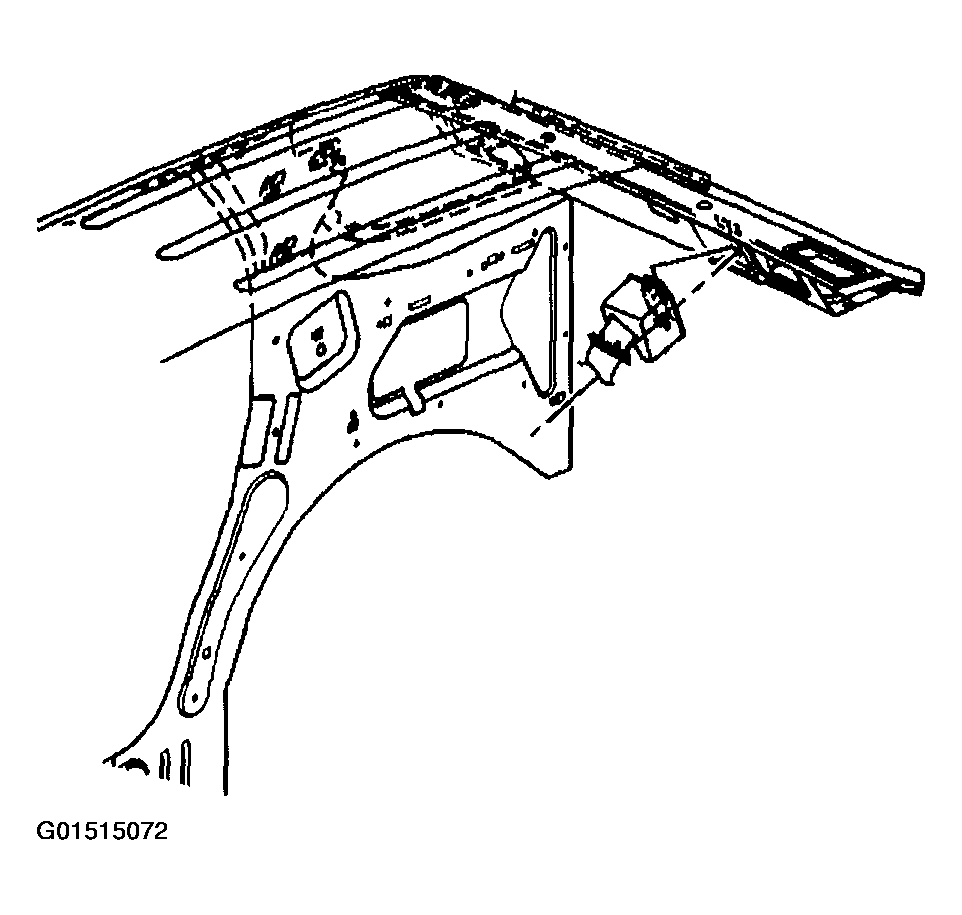

Fig 1: Installing Procedure Of Seat Belt Retractor - Center Rear (1 Of 4)
Courtesy of GENERAL MOTORS CORP.
Install the bolt to the rear seat belt center retractor.
Tighten

Tighten the rear seat belt center retractor bolt to 35 N.m (26 lb ft).

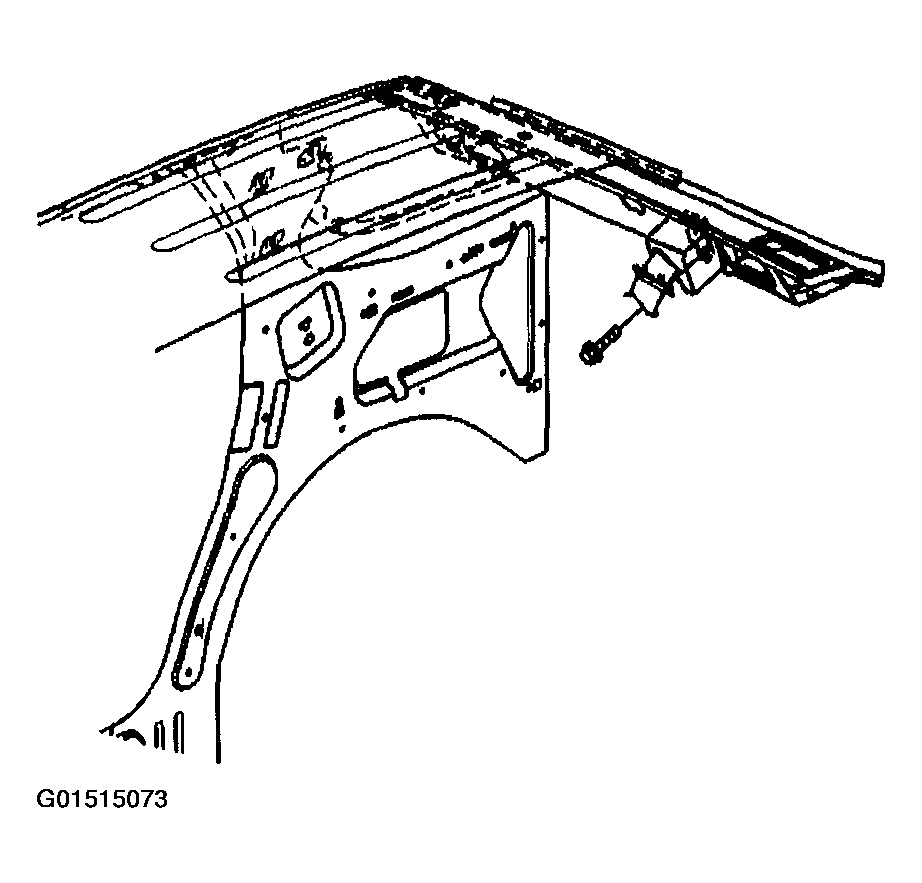

Fig 2: Installing Procedure Of Seat Belt Retractor - Center Rear (2 Of 4)
Courtesy of GENERAL MOTORS CORP.
Install the rear upper garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- REAR UPPER .

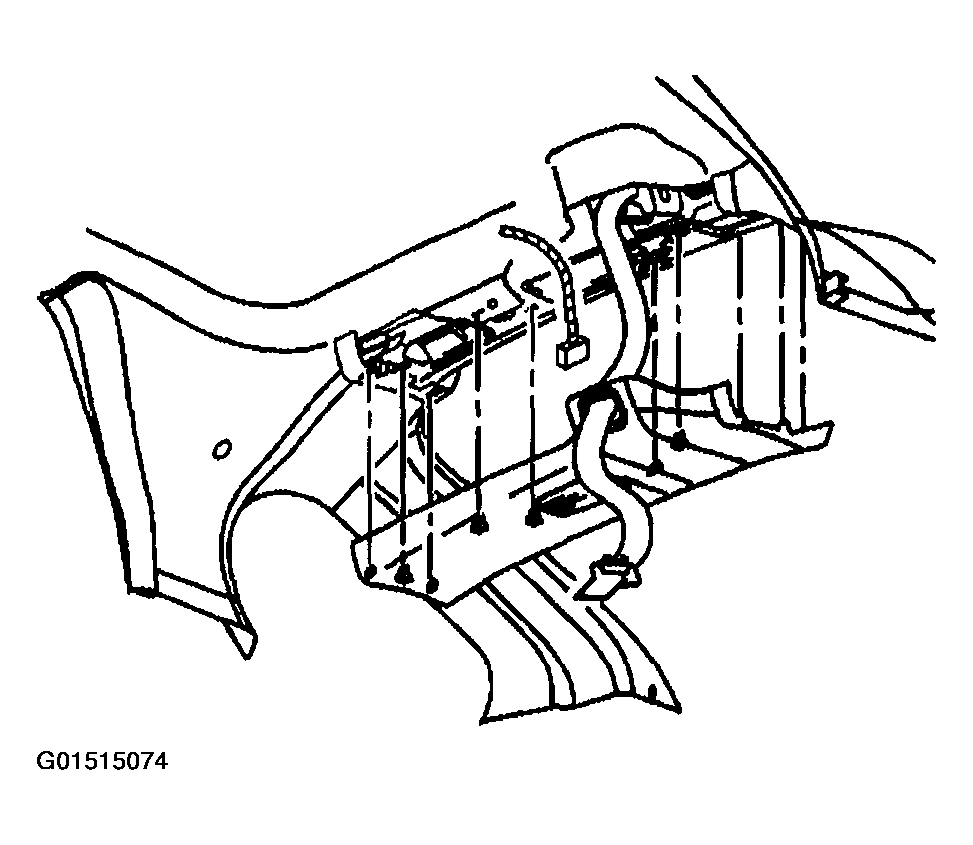

Fig 3: Installing Procedure Of Seat Belt Retractor - Center Rear (3 Of 4)
Courtesy of GENERAL MOTORS CORP.
Install the rear seat belt center latch to buckle.

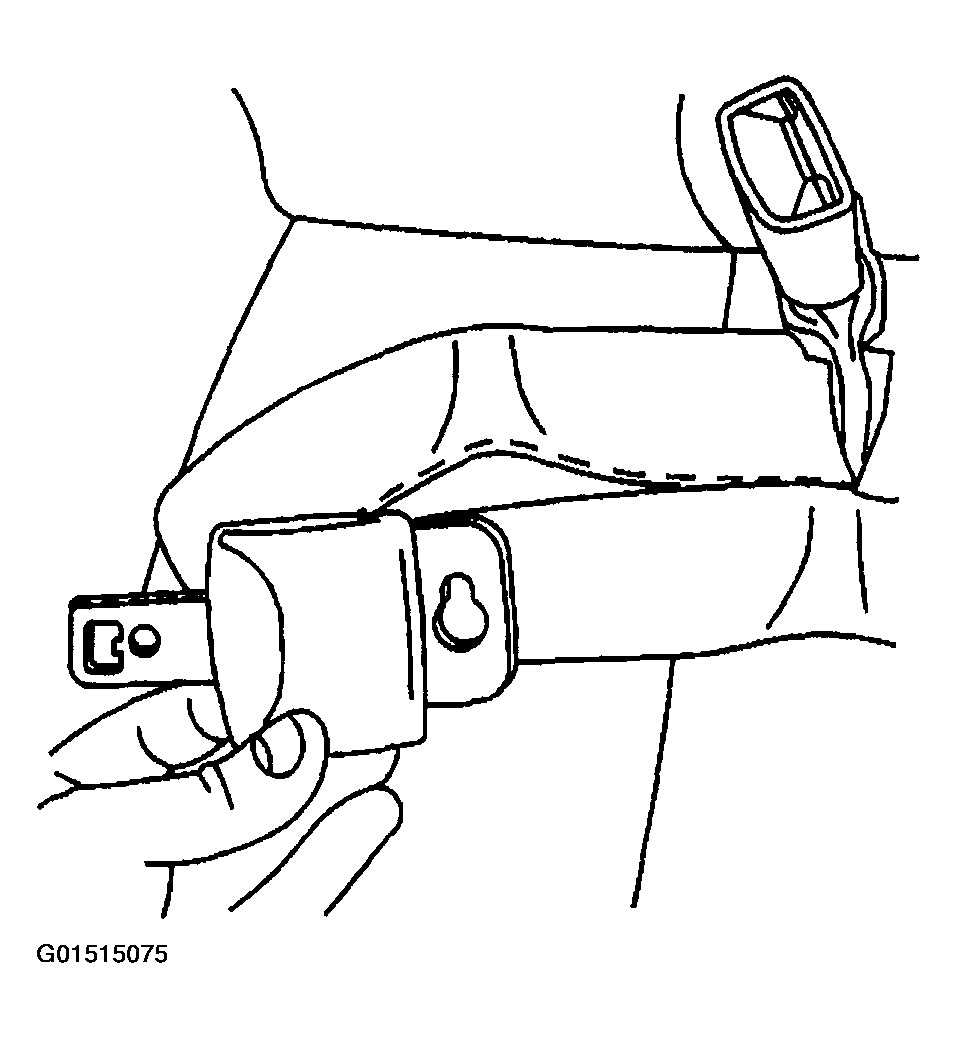

Fig 4: Installing Procedure Of Seat Belt Retractor - Center Rear (4 Of 4)
